| 11301-58012 |
Case Sub-Assy, Timing Gear |

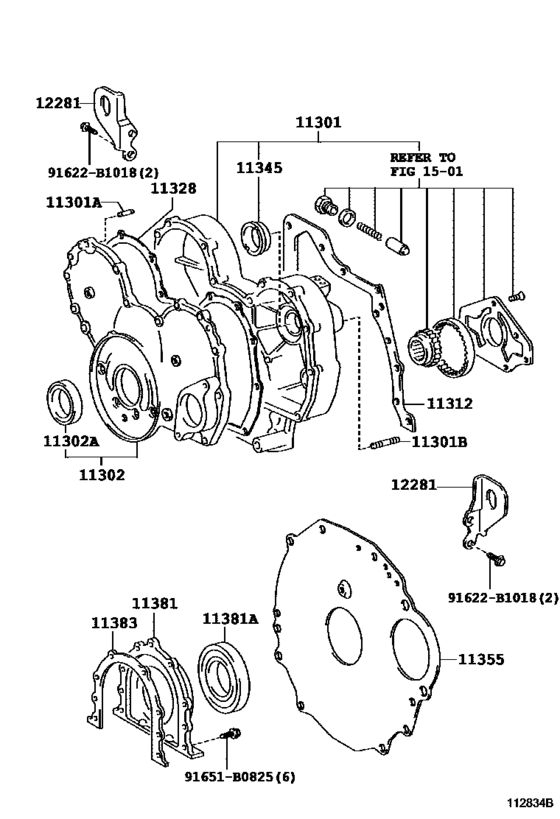

Timing Gear Cover & Rear End Plate ([08.2001 - ] (0108- )1BZFPE) |
| 11302-58011 |
Cover Sub-Assy, Timing Chain Or Belt |
Timing Gear Cover & Rear End Plate ([08.2001 - ] (0108- )1BZFPE) |
| 11312-56040 |
Gasket, Front End Plate |
Timing Gear Cover & Rear End Plate ([08.2001 - ] (0108- )1BZFPE) |
| 11328-58010 |
Gasket, Timing Gear Or Chain Cover |
Timing Gear Cover & Rear End Plate ([08.2001 - ] (0108- )1BZFPE) |
| 11345-48010 |
Bearing, Injection Pump Gear Thrust |
Timing Gear Cover & Rear End Plate ([08.2001 - ] (0108- )1BZFPE) |
| 11355-58050 |
Plate, Rear End |
Timing Gear Cover & Rear End Plate ([08.2001 - ] (0108- )1BZFPE) |
| 11381-58011 |
Retainer, Engine Rear Oil Seal |
Timing Gear Cover & Rear End Plate ([08.2001 - ] (0108- )1BZFPE) |
| 11383-56040 |
Gasket, Engine Rear Oil Seal Retainer |
Timing Gear Cover & Rear End Plate ([08.2001 - ] (0108- )1BZFPE) |
| 12281-58010 |
Hanger, Engine, No.1 |
Timing Gear Cover & Rear End Plate ([08.2001 - ] (0108- )1BZFPE) |
| 90116-08169 |
Bolt,stud(For Timing Gear Case) |
Timing Gear Cover & Rear End Plate ([08.2001 - ] (0108- )1BZFPE) |
| 90250-08120 |
Pin, Straight, No.1 |
Timing Gear Cover & Rear End Plate ([08.2001 - ] (0108- )1BZFPE) |
| 90311-50013 |
Seal, Oil(For Timing Chain Or Belt Cover) |
Timing Gear Cover & Rear End Plate ([08.2001 - ] (0108- )1BZFPE) |
| 90311-95011 |
Seal, Engine Rear Oil |
Timing Gear Cover & Rear End Plate ([08.2001 - ] (0108- )1BZFPE) |
| 91622-B1018 |
BOLT WWASHER |
Timing Gear Cover & Rear End Plate ([08.2001 - ] (0108- )1BZFPE) |
| 91651-B0825 |
Bolt, Hexagon(For Steering Column Bracket) |
Timing Gear Cover & Rear End Plate ([08.2001 - ] (0108- )1BZFPE) |
