BZB50

Toyota COASTER · 2002 · 3,391 parts · 213 categories
BZB50 ×

← Back to categories

3,391 items

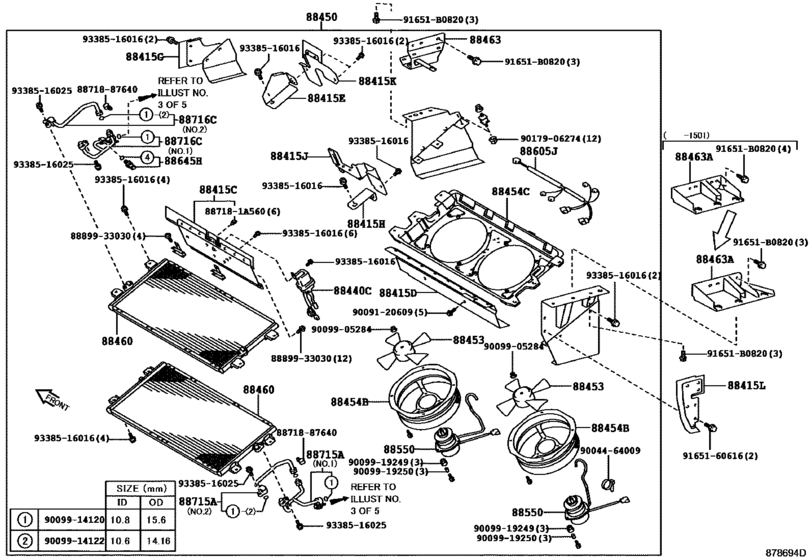

Heating & Air Conditioning - Cooler Piping ([08.2001 - ] (0108- )BZB40,50) 39
#OEMPart name
88415 88415-36190 Cover, Dust, No.1
88415 88415-36200 Cover, Dust, No.2
88415 88415-36280 Cover, Dust, No.3
88415 88415-36290 Cover, Cooler Condenser Dust, No.4
88415 88415-36260 Cover, Cooler Condenser Dust, No.5
88415 88415-36250 Cover, Cooler Condenser Dust, No.6 - COOLER CONDENSER, NO.6
88415 88415-36270 Cover, Cooler Condenser Dust, No.7
88415 88415-36240 Cover, Dust, No.8
88440 88440-36150 Relay Assy, Cooler Condenser Fan
88450 88460-36180 Condenser Assy, W/receiver
88453 16361-13030 Fan
88454 88454-36140 Shroud, Fan
88454 88454-36130 Shroud, Cooler Condenser Fan No.3
88460 88340-36110 Condenser Assy, Cooler
88463 88688-36871 Bracket, Cooler Condenser, No.1
88463 88688-36740 Bracket, Cooler Condenser, No.2
88550 88550-36220 Motor Assy, Blower (For Condenser)
88605 88605-36341 Harness Sub-Assy, Air Conditioner Wiring
88645 88645-36050 Switch, Pressure No.1
88715 88715-36601 Pipe, Cooler Refrigerant Discharge, A
88715 88715-36610 Pipe, Cooler Refrigerant Discharge, A
88716 88716-36511 Pipe, Cooler Refrigerant Liquid, C
88716 88716-36520 Pipe, Cooler Refrigerant Liquid, C
91651 91651-B0820 Bolt, Radiator Side Support Plate
91651 90080-11347 New Genuine Part
887181 88718-1A560 Pipe, Cooler Refrigerant Suction, No.2
8871887640 88718-87640 Clamp(For Cooler Refrigerant Pipe), No.5
8889933030 88899-33030 Cover, Evaporator
9004464009 90044-64009 CLAMP
9009120609 90091-20609 BOLT
9009905284 90099-05284 NUT
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914122 90099-14122 O-RING
9009919249 90099-19249 BUSHING
9009919250 90099-19250 BUSHING
9017906274 90179-06274 Nut
9165160616 91651-60616 BOLT
9338516016 93385-16016 New Genuine Part
9338516025 93385-16025 New Genuine Part
