Search › Model › BZB50

BZB50

Toyota COASTER · 2002 · 3,391 parts · 213 categories
BZB50 ×

← Back to categories

3,391 items

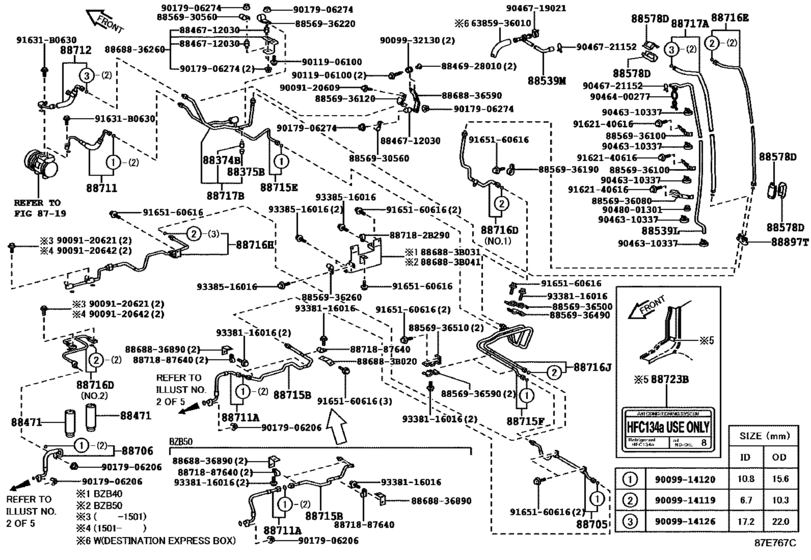

Heating & Air Conditioning - Cooler Piping ([01.2015 - ] (1501- )BZB40,50) 66
#OEMPart name
88374 88374-30010 Valve, Service, No.1
88375 88375-30290 Cap, Service Valve (For Cooler Pipe)
88471 88471-50020 Receiver & Dryer Assy, Cooler
88539 88539-36150 Hose, Drain Cooler
88539 88539-36170 Hose, Drain Cooler, No.2
88578 88578-90B01 Packing, Cooler Pipe, No.1
88705 88705-36191 Pipe Sub-Assy, Discharge
88706 88721-36150 Pipe Sub-Assy, Liquid
88711 88711-36480 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-36620 Hose, Cooler Refrigerant Discharge, No.2
88712 88712-36461 Hose, Cooler Refrigerant Suction, No.1
88715 88715-36680 Pipe, Cooler Refrigerant Discharge, B
88715 88715-36320 Pipe, Cooler Refrigerant Discharge, E
88715 88715-36670 Pipe, Cooler Refrigerant Discharge, F
88716 88716-36150 Pipe, Cooler Refrigerant Liquid, D
88716 88716-36492 Pipe, Cooler Refrigerant Liquid, D
88716 88716-36220 Pipe, Cooler Refrigerant Liquid, E
88716 88716-36A00 Pipe, Cooler Refrigerant Liquid, H
88716 88716-36A10 Pipe, Cooler Refrigerant Liquid, J
88717 88717-36110 Pipe, Cooler Refrigerant Suction, A
88717 88717-36230 Pipe, Cooler Refrigerant Suction, B
88723 88723-20040 Label, Cooler Service Caution
88897 88897-36040 Grommet, Cooler
91631 91631-B0630 BOLT WWASHER
886883 88688-3B020 Bracket, Cooler, No.3
886883 88688-3B031 Bracket, Cooler, No.1
886883 88688-3B041 Bracket, Cooler, No.1
887182 88718-2B290 Clamp(For Cooler Refrigerant Pipe), No.4
6385936010 63859-36010 Hose, Roof Ventilator Drain, No.2
8846712030 88467-12030 Cushion, Cooler Condenser, No.1
8846928010 88469-28010 Collar, Condenser Bracket, No.1
8856930560 88569-30560 Clamp, Piping, No.2
8856936080 88569-36080 Clamp (for Cooler Relay)
8856936100 88569-36100 Clamp (for Cooler Relay)
8856936120 88569-36120 Clamp, Cooler, No.2
8856936190 88569-36190 Clamp, Cooler, No.1
8856936220 88569-36220 Clamp, Cooler, No.2
8856936260 88569-36260 Clamp (for Cooler Relay)
8856936490 88569-36490 Clamp, Cooler, No.4
8856936500 88569-36500 Clamp, Cooler, No.5
8856936510 88569-36510 Clamp, Cooler, No.6
8856936590 88569-36590 Clamp, Cooler, No.7
8868836260 88688-36260 Bracket, Cooler, No.1
8868836590 88688-36590 Bracket, Cooler, No.5
8868836890 88688-36890 Bracket, Cooler, No.2
8871887640 88718-87640 Clamp(For Cooler Refrigerant Pipe), No.5
9009120609 90091-20609 BOLT
9009120621 90091-20621 New Genuine Part
9009120642 90091-20642 BOLT WWASHER
9009914119 90099-14119 Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119 90099-14119-TH O RING
9009914120 90099-14120 O-Ring, Cooler Evaporator No.1(Discharge)
9009914126 90099-14126 OIL SEAL
9009932130 90099-32130 Grommet (For Power Take-Off Cable Bracket)
9011906100 90119-06100 BOLT
9017906206 90179-06206 Nut
9017906274 90179-06274 Nut
9046310337 90463-10337 CLAMP
9046400277 90464-00277 New Genuine Part
9046719021 90467-19021 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046721152 90467-21152 Clip Or Clamp(For Ventilation Hose)
9048001301 90480-01301 New Genuine Part
9162140616 91621-40616 Step Cover Bolt
9165160616 91651-60616 BOLT
9338116016 93381-16016 SCREWWWASHER
9338516016 93385-16016 New Genuine Part
