BZB50

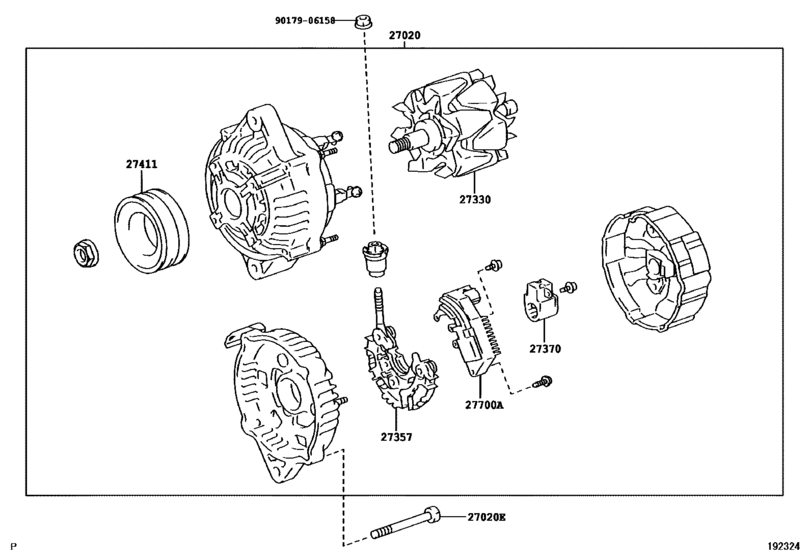

Alternator ([12.2003 - ] 12V 100A (0312- )1BZFPE) 8
| # | OEM | Part name |
|---|---|---|
| 27020 | 27060-58420 | Alternator Assy |
| 27020 | 90148-10001 | Bolt(For Alternator) |
| 27330 | 27330-20070 | Rotor Assy, Alternator |
| 27357 | 27357-20060 | Holder, Alternator, W/rectifier |
| 27370 | 27370-75060 | Holder Assy, Alternator Brush |
| 27411 | 27411-58440 | Pulley, Alternator |
| 27700 | 27700-75010 | Regulator Assy, Generator |
| 9017906158 | 90179-06158 | Nut, Rear Wiper Link Pivot, No.2 |
| OEM | Part name | Category |
|---|---|---|
| 27060-58420 | Alternator Assy | Alternator ([12.2003 - ] 12V 100A (0312- )1BZFPE) |
| 27330-20070 | Rotor Assy, Alternator | Alternator ([12.2003 - ] 12V 100A (0312- )1BZFPE) |
| 27357-20060 | Holder, Alternator, W/rectifier | Alternator ([12.2003 - ] 12V 100A (0312- )1BZFPE) |
| 27370-75060 | Holder Assy, Alternator Brush | Alternator ([12.2003 - ] 12V 100A (0312- )1BZFPE) |
| 27411-58440 | Pulley, Alternator | Alternator ([12.2003 - ] 12V 100A (0312- )1BZFPE) |
| 27700-75010 | Regulator Assy, Generator | Alternator ([12.2003 - ] 12V 100A (0312- )1BZFPE) |
| 90148-10001 | Bolt(For Alternator) | Alternator ([12.2003 - ] 12V 100A (0312- )1BZFPE) |
| 90179-06158 | Nut, Rear Wiper Link Pivot, No.2 | Alternator ([12.2003 - ] 12V 100A (0312- )1BZFPE) |
