BY31

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1983 · 3,820 parts · 168 categories
BY31 ×

← Back to categories

3,820 items

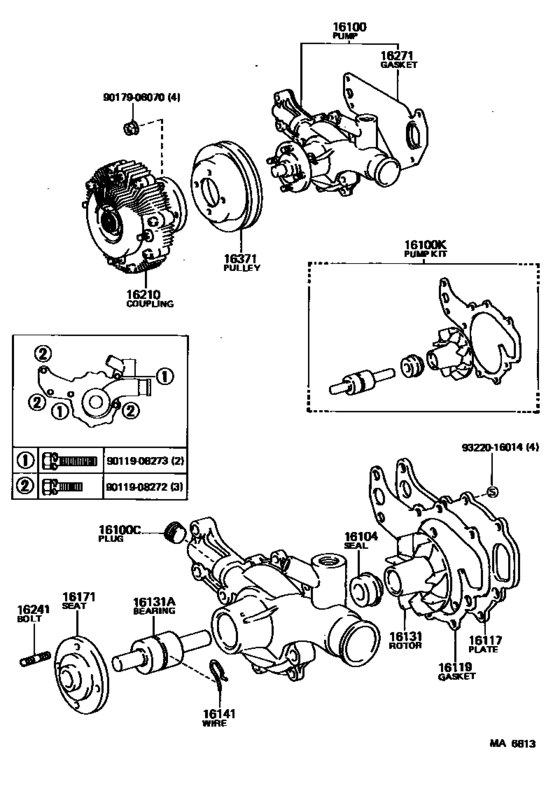

Water Pump ([08.1983 - 08.1984] (8308-8408)B) 34
#OEMPart name
16100 16100-59096 Pump Assy, Engine Water
16100 16100-59145 Pump Assy, Engine Water
16100 15184-15010 Plug, Taper Screw(For Oil Filter Bracket)
16100 04161-56050 Pump Kit, Water
16100 04161-56062 Pump Kit, Water
16100 04161-56090 Pump Kit, Water
16100 04161-56091 Pump Kit, Water
16104 16104-15020 Seal Set, Water Pump
16104 16104-41111 Seal Set, Water Pump
16117 16117-56040 Plate, Water Pump
16119 16119-56040 Gasket, Water Pump Body
16119 16119-56041 Gasket, Water Pump Body
16131 16131-56020 Rotor, Water Pump
16131 16131-56030 Rotor, Water Pump
16131 90369-30028 Bearing, Water Pump
16131 90369-30060 Bearing, Water Pump
16131 90369-30061 Bearing, Water Pump
16141 16141-60010 Wire, Water Pump Bearing Retaining
16171 16171-38022 Seat, Water Pump Pulley
16171 16171-54010 Seat, Water Pump Pulley
16210 16210-56050 Coupling Assy, Fluid
16210 16210-56060 Coupling Assy, Fluid
16241 16193-33030 Bolt, Stud(For Water Pump Cover)
16271 16271-56020 Gasket, Water Pump
16271 16271-58010 Gasket, Water Pump
16371 16371-56030 Pulley, Fan
16371 16371-56050 Pulley, Fan
9011908272 90119-08272 New Genuine Part
9011908272 91643-80845 New Genuine Part
9011908273 90119-08273 New Genuine Part
9011908273 91643-80865 New Genuine Part
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9322016014 93220-16014 SCREW
