BY31

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1983 · 3,820 parts · 168 categories

3,820 items

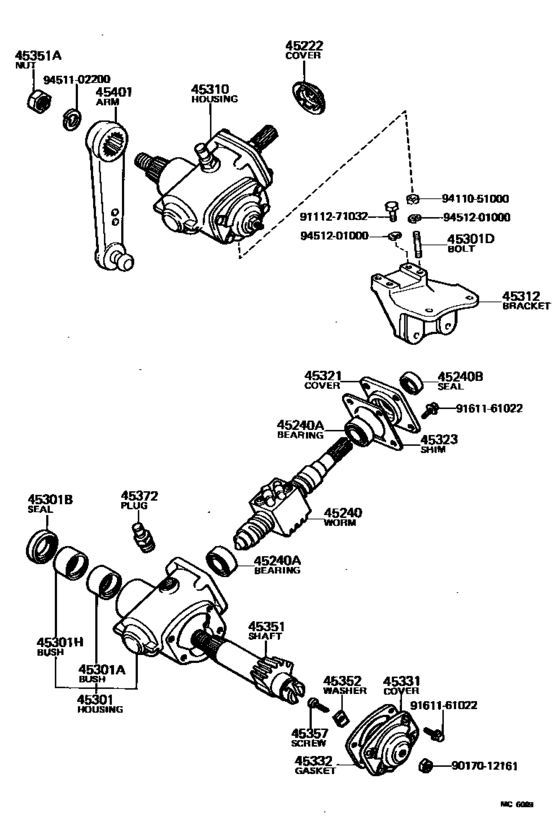

Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR) 43

#	OEM	Part name
45222	45222-26010	Cover, Steering Gear Dust
45240	45240-36031	Worm Assy, Steering
45240	90363-20003	Bearing(For Steering Worm)
45240	90311-18001	Seal, Oil(For Steering Worm)
45240	90311-18010	Seal, Oil(For Steering Worm)
45301	45301-36040	Housing Sub-Assy, Steering Gear
45301	90999-73061	Bush Or Bearing, Sector Shaft, No.1
45301	90310-32024	Seal, Oil(For Sector Shaft)
45301	90311-32014	Seal, Oil(For Sector Shaft)
45301	90116-10101	Bolt, Stud(For Steering Gear Housing)
45310	45310-36060	Housing Assy, Steering Gear
45312	45312-25110	Bracket, Steering Gear Housing
45312	45312-25130	Bracket, Steering Gear Housing
45321	45321-36020	Cover, Gear Housing End
45323	45323-36010	Shim, Gear Housing End Cover
45323	45323-36020	Shim, Gear Housing End Cover
45323	45323-36030	Shim, Gear Housing End Cover
45323	45323-36040	Shim, Gear Housing End Cover
45323	45323-36050	Shim, Gear Housing End Cover
45323	45323-36060	Shim, Gear Housing End Cover
45323	45323-36070	Shim, Gear Housing End Cover
45323	45323-36080	Shim, Gear Housing End Cover
45331	45304-36020	Cover, Sector Shaft End
45332	45332-36010	Gasket, Sector Shaft End Cover
45351	45351-36020	Shaft, Steering Sector
45351	90170-22058	Nut, Hexagon(For Cross Shaft To Pitman Arm Setting)
45352	45352-36010	Washer, Sector Shaft Thrust
45352	45353-36010	Washer, Sector Shaft Thrust
45352	45354-36010	Washer, Sector Shaft Thrust
45352	45355-36010	Washer, Sector Shaft Thrust
45352	45356-36010	Washer, Sector Shaft Thrust
45357	45357-36020	Screw, Sector Shaft Adjusting
45372	90930-03058	Plug, Breather (For Winch Gear Case)
45401	45401-25150	Arm Sub-Assy, Pitman
9017012161	90170-12161	Nut(For Vane Pump Pulley)
9017012161	90170-12011	Nut(For Vane Pump Pulley)
9111271032	91112-71032	New Genuine Part
9111271032	91112-71030	New Genuine Part
9161161022	91611-61022	Bolt (For Transmission Control Cable Bracket)
9161161022	91612-61022	Bolt (For Transmission Control Cable Bracket)
9411051000	94110-51000	Nut(For Steering Center Arm)
9451102200	94511-02200	WASHER
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
45222-26010	Cover, Steering Gear Dust	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
45240-36031	Worm Assy, Steering	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
45301-36040	Housing Sub-Assy, Steering Gear	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
45304-36020	Cover, Sector Shaft End	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
45310-36060	Housing Assy, Steering Gear	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
45312-25110	Bracket, Steering Gear Housing	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
45312-25130	Bracket, Steering Gear Housing	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
45321-36020	Cover, Gear Housing End	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
45323-36010	Shim, Gear Housing End Cover	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
45323-36020	Shim, Gear Housing End Cover	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
45323-36030	Shim, Gear Housing End Cover	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
45323-36040	Shim, Gear Housing End Cover	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
45323-36050	Shim, Gear Housing End Cover	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
45323-36060	Shim, Gear Housing End Cover	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
45323-36070	Shim, Gear Housing End Cover	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
45323-36080	Shim, Gear Housing End Cover	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
45332-36010	Gasket, Sector Shaft End Cover	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
45351-36020	Shaft, Steering Sector	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
45352-36010	Washer, Sector Shaft Thrust	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
45353-36010	Washer, Sector Shaft Thrust	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
45354-36010	Washer, Sector Shaft Thrust	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
45355-36010	Washer, Sector Shaft Thrust	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
45356-36010	Washer, Sector Shaft Thrust	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
45357-36020	Screw, Sector Shaft Adjusting	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
45401-25150	Arm Sub-Assy, Pitman	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
90116-10101	Bolt, Stud(For Steering Gear Housing)	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
90170-12011	Nut(For Vane Pump Pulley)	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
90170-12161	Nut(For Vane Pump Pulley)	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
90170-22058	Nut, Hexagon(For Cross Shaft To Pitman Arm Setting)	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
90310-32024	Seal, Oil(For Sector Shaft)	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
90311-18001	Seal, Oil(For Steering Worm)	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
90311-18010	Seal, Oil(For Steering Worm)	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
90311-32014	Seal, Oil(For Sector Shaft)	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
90363-20003	Bearing(For Steering Worm)	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
90930-03058	Plug, Breather (For Winch Gear Case)	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
90999-73061	Bush Or Bearing, Sector Shaft, No.1	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
91112-71030	New Genuine Part	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
91112-71032	New Genuine Part	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
91611-61022	Bolt (For Transmission Control Cable Bracket)	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
91612-61022	Bolt (For Transmission Control Cable Bracket)	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
94110-51000	Nut(For Steering Center Arm)	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
94511-02200	WASHER	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Steering Column & Shaft ([03.1979 - ] (7903- )JY30 ; (7903- )BY3#,LY2#,3#,RY2#,3 #..TR)
