BY31

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1983 · 3,820 parts · 168 categories

3,820 items

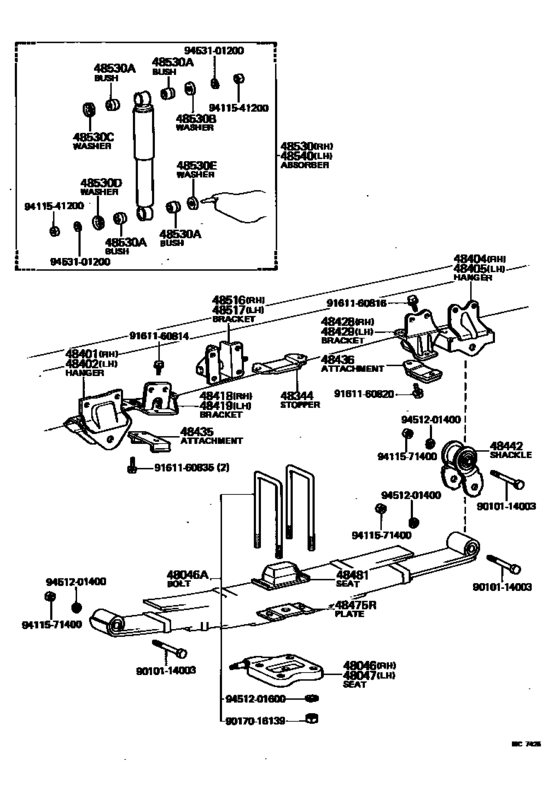

Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT) 41

#	OEM	Part name
48046	48046-36120	Seat Sub-Assy, Spring U Bolt, Rh
48046	48046-36121	Seat Sub-Assy, Spring U Bolt, Rh
48046	90118-16066	Bolt, U(For Rear Spring)
48046	90117-16144	Bolt, U(For Rear Spring)
48047	48047-36120	Seat Sub-Assy, Spring U Bolt, Lh
48047	48047-36121	Seat Sub-Assy, Spring U Bolt, Lh
48344	48344-36110	Stopper, Bumper, Rear
48401	48414-36071	Bracket Sub-Assy, Rear Spring, Front Rh
48404	48416-36090	Bracket Sub-Assy, Rear Spring, Rear Rh
48418	48418-36041	Bracket, Helper Spring, Front Rh
48419	48428-36020	Bracket, Helper Spring, Front Lh
48428	48419-36041	Bracket, Helper Spring, Rear Rh
48429	48429-36020	Bracket, Helper Spring, Rear Lh
48435	48435-36030	Attachment, Helper Spring Bracket, No.1
48436	48436-36020	Attachment, Helper Spring Bracket, No.2
48442	48042-36021	Shackle, Spring, No.1
48475	48475-36051	Plate, Distance(For Rear)
48481	48481-36020	Seat, Rear Spring, Upper
48516	48505-36020	Bracket, Rear Shock Absorber, Upper Rh
48517	48506-36020	Bracket, Rear Shock Absorber, Upper Lh
48530	48531-39276	Absorber Assy, Shock, Rear Rh
48530	48531-39277	Absorber Assy, Shock, Rear Rh
48530	90385-16007	Cushion, Front Shock Absorber
48530	90948-03003	Retainer, Cushion, No.1(For Front Shock Absorber)
48530	90948-03004	Retainer, Cushion, No.1(For Front Shock Absorber)
9010114003	90101-14003	New Genuine Part
9017016139	90170-16139	Nut(For Rear Spring U Bolt)
9161160814	91611-60814	Bolt
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9161160820	91611-60820	Bolt(For Transaxle & Engine Setting)
9161160820	91611-G0820	Bolt
9161160835	91611-60835	Bolt(For Clutch Release Cylinder Setting)
9411541200	94115-41200	Nut
9411541200	94130-61200	Nut
9411571400	94115-71400	Nut, Timer Round
9411571400	94130-01402	Nut, Timer Round
9451201400	94512-01400	Washer(For Rear Spring U Bolt)
9451201600	94512-01600	Washer(For Center Arm Shaft)
9451201600	90204-16001	Washer(For Center Arm Shaft)
9453101200	94531-01200	WASHER

OEM	Part name	Category
48042-36021	Shackle, Spring, No.1	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
48046-36120	Seat Sub-Assy, Spring U Bolt, Rh	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
48046-36121	Seat Sub-Assy, Spring U Bolt, Rh	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
48047-36120	Seat Sub-Assy, Spring U Bolt, Lh	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
48047-36121	Seat Sub-Assy, Spring U Bolt, Lh	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
48344-36110	Stopper, Bumper, Rear	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
48414-36071	Bracket Sub-Assy, Rear Spring, Front Rh	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
48416-36090	Bracket Sub-Assy, Rear Spring, Rear Rh	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
48418-36041	Bracket, Helper Spring, Front Rh	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
48419-36041	Bracket, Helper Spring, Rear Rh	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
48428-36020	Bracket, Helper Spring, Front Lh	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
48429-36020	Bracket, Helper Spring, Rear Lh	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
48435-36030	Attachment, Helper Spring Bracket, No.1	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
48436-36020	Attachment, Helper Spring Bracket, No.2	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
48475-36051	Plate, Distance(For Rear)	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
48481-36020	Seat, Rear Spring, Upper	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
48505-36020	Bracket, Rear Shock Absorber, Upper Rh	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
48506-36020	Bracket, Rear Shock Absorber, Upper Lh	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
48531-39276	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
48531-39277	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
90101-14003	New Genuine Part	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
90117-16144	Bolt, U(For Rear Spring)	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
90118-16066	Bolt, U(For Rear Spring)	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
90170-16139	Nut(For Rear Spring U Bolt)	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
90204-16001	Washer(For Center Arm Shaft)	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
90385-16007	Cushion, Front Shock Absorber	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
90948-03003	Retainer, Cushion, No.1(For Front Shock Absorber)	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
90948-03004	Retainer, Cushion, No.1(For Front Shock Absorber)	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
91611-60814	Bolt	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
91611-60820	Bolt(For Transaxle & Engine Setting)	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
91611-60835	Bolt(For Clutch Release Cylinder Setting)	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
91611-B0816	Bolt	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
91611-G0820	Bolt	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
94115-41200	Nut	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
94115-71400	Nut, Timer Round	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
94130-01402	Nut, Timer Round	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
94130-61200	Nut	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
94512-01400	Washer(For Rear Spring U Bolt)	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
94512-01600	Washer(For Center Arm Shaft)	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
94531-01200	WASHER	Rear Spring & Shock Absorber ([09.1980 - ] (8009- )BY3#..DMP,T3..WT)
