BY31

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1983 · 3,820 parts · 168 categories
BY31 ×

← Back to categories

3,820 items

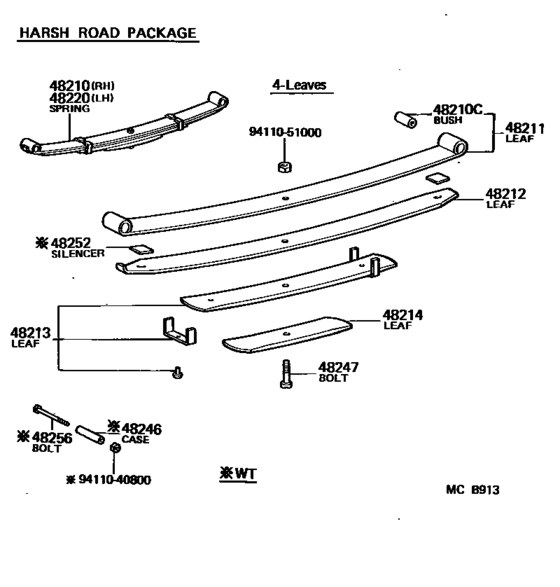

Rear Spring & Shock Absorber ([08.1984 - ] (8408- )) 25
#OEMPart name
48210 48210-36212 Spring Assy, Rear Rh
48210 90389-16003 Bimetal Formed Bush(For Front Spring)
48210 48210-36620 Spring Assy, Rear Rh
48210 90389-16002 Bimetal Formed Bush(For Front Spring)
48211 48201-36212 Leaf, Rear Spring, No.1
48211 48201-36620 Leaf, Rear Spring, No.1
48211 48201-36190 Leaf, Rear Spring, No.1
48212 48212-36212 Leaf, Rear Spring, No.2
48212 48204-36620 Leaf, Rear Spring, No.2
48212 48204-36240 Leaf, Rear Spring, No.2
48213 48202-36212 Leaf, Rear Spring, No.3
48213 48202-36210 Leaf, Rear Spring, No.3
48213 48202-36620 Leaf, Rear Spring, No.3
48213 48202-36240 Leaf, Rear Spring, No.3
48214 48214-36212 Leaf, Rear Spring, No.4
48214 48214-36620 Leaf, Rear Spring, No.4
48214 48214-36690 Leaf, Rear Spring, No.4
48246 48146-60010 Case, Front Spring Clip Bolt
48246 48146-60070 Case(For Rear Spring Clip Bolt)
48247 48247-36210 Bolt, Rear Spring, Center
48247 48247-36160 Bolt, Rear Spring, Center
48256 48256-25050 Bolt, Hexagon(For Rear Spring Clip)
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9411051000 94110-51000 Nut(For Steering Center Arm)
