Search › Model › BY31

BY31

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1983 · 3,820 parts · 168 categories
BY31 ×

← Back to categories

3,820 items

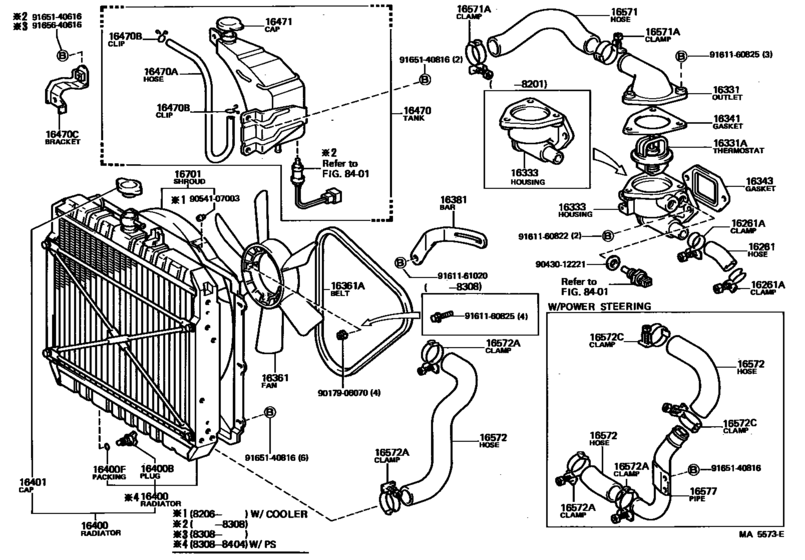

Radiator & Water Outlet ([09.1980 - 08.1984] (8009-8408)B) 68
#OEMPart name
16261 16261-56012 Hose, Water By-Pass
16261 90044-60053 Clamp Or Clip, Hose(For Water By-Pass Hose)
16331 16331-56020 Outlet, Water
16331 90916-03059 Thermostat
16331 90916-03103 Thermostat
16331 90916-03066 Thermostat
16331 90916-03102 Thermostat
16333 16333-56050 Housing, Water Outlet
16333 16333-56060 Housing, Water Outlet
16333 16333-58080 Housing, Water Outlet
16333 16341-56030 Gasket, Water Outlet
16333 16343-56023 Gasket, Water Outlet Housing
16333 90341-12006 Plug(For Water Outlet)
16333 90430-12221 Gasket
16333 92122-60832 Bolt, Stud(For Oil Strainer)
16333 94185-60800 NUT
16341 16341-56020 Gasket, Water Outlet
16341 16341-56021 Gasket, Water Outlet
16343 16343-56020 Gasket, Water Outlet Housing
16361 16361-38010 Fan
16361 16361-56070 Fan
16361 99343-01195 Belt, V(For Fan & Alternator)
16381 16381-56030 Bar, Fan Belt Adjusting
16400 16400-56090 Radiator Assy
16400 16400-56141 Radiator Assy
16400 16410-56141 Radiator Assy
16400 16417-24200 Plug, Radiator Drain Cock
16400 16418-24200 Packing(For Radiator Drain Cock)
16401 16401-41021 Cap Sub-Assy, Radiator
16470 16470-56071 Tank Assy, Radiator Reserve
16470 90445-12897 Hose Or Pipe(For Radiator Reserve Tank)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16470 16611-56020 Bracket(For Radiator Reserve Tank)
16471 16471-34030 Cap Sub-Assy, Reserve Tank
16571 16571-56020 Hose, Radiator, Inlet
16571 90460-50016 Clamp Or Clip, Hose(For Radiator Inlet)
16571 96111-10500 Clamp, Sub Radiator Inlet Hose
16571 90467-42001 Clamp Or Clip, Hose(For Radiator Inlet)
16571 90466-41008 Clamp, Hose(For Radiator Hose)
16572 16572-56040 Hose, Radiator, Outlet
16572 16572-56050 Hose, Radiator, Outlet
16572 16572-56080 Hose, Radiator, Outlet
16572 16572-56081 Hose, Radiator, Outlet
16572 16573-56010 Hose, Radiator, Outlet
16572 16573-56030 Hose, Radiator, Outlet
16572 96111-10560 Clamp Or Clip, Hose(For Radiator Outlet No.1)
16577 16577-56010 Pipe, Radiator, No.7
16577 16577-56030 Pipe, Radiator, No.7
16577 16573-56031 Hose, Radiator, Outlet
16577 16577-56031 Pipe, Radiator, No.7
16701 16701-56260 Shroud Sub-Assy, Fan
16701 16701-56261 Shroud Sub-Assy, Fan
16701 16701-56270 Shroud Sub-Assy, Fan
16701 16701-56271 Shroud Sub-Assy, Fan
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9054107003 90541-07003 Cushion(For Luggage Compartment Door Panel)
9161160822 91611-60822 Bolt
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9161161020 91611-61020 Bolt(For Transaxle & Engine Setting)
9161161020 91612-B1020 Bolt (For Transfer Case)Cover No.2
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165140816 91651-40816 BOLT
9165640616 91656-40616 Bolt
9165640616 91651-60614 Bolt
