Search › Model › BY31

BY31

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1983 · 3,820 parts · 168 categories

3,820 items

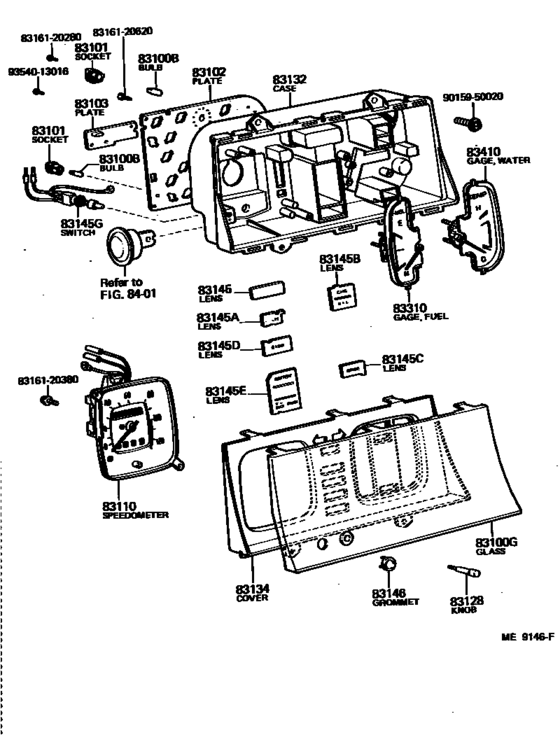

Meter ([03.1979 - ] (7903- )) 47

#	OEM	Part name
83100	90981-11022	Bulb, Ash Receptacle Lamp
83100	99134-12030	Bulb, Position Indicator Lamp
83100	83138-95010	Glass, Combination Meter
83101	83101-89101	Socket Sub-Assy, Combination Meter Bulb
83101	83101-95020	Socket Sub-Assy, Combination Meter Bulb
83102	83247-95011	Plate Sub-Assy, Combination Meter Circuit, No.1
83102	83247-95012	Plate Sub-Assy, Combination Meter Circuit, No.1
83103	83247-95020	Plate Sub-Assy, Combination Meter Circuit, No.2
83110	83110-95010	Speedometer Assy
83110	83110-95019	Speedometer Assy
83110	83110-95028	Speedometer Assy
83110	83110-95031	Speedometer Assy
83128	83128-95010	Knob, Trip Counter
83132	83132-95010	Case, Combination Meter
83132	83132-95A01	Case, Combination Meter
83134	83134-95010	Cover, Combination Meter, No.1
83145	83145-95013	Lens, Meter, No.1
83145	83145-95A15	Lens, Meter, No.2
83145	83145-95023	Lens, Meter, No.3
83145	83145-95024	Lens, Meter, No.4
83145	83145-95A11	Lens, Meter, No.3
83145	83145-95028	Lens, Meter, No.6
83145	83145-95030	Lens, Meter, No.6
83310	83243-95011	Gage Assy, Fuel Receiver
83410	83244-95011	Gage Assy, Water Temperature Receiver
83710	83710-95015	Cable Assy, Speedometer Drive, No.1
8316120280	83161-20280	Case, Combination Meter Mirror, No.1
8316120380	83161-20380	Case, Combination Meter Mirror, No.1
8316120620	83161-20620	Case, Combination Meter Mirror, No.1
8379195011	83791-95011	New Genuine Part
8379195012	83791-95012	Clamp, Rear Washer Hose
8379195012	82711-30660	Clamp, Rear Washer Hose
8379195013	83791-95013	New Genuine Part
8379195013	90989-01009	New Genuine Part
9015950020	90159-50020	New Genuine Part
9046108183	90461-08183	Wire, Fuse To Fuse(for Combustion Heater)
9046108183	82711-37250	Wire, Fuse To Fuse(for Combustion Heater)
9046108202	90461-08202	Clamp(For Brake Master Cylinder)
9046108535	90461-08535	New Genuine Part
9046110312	90461-10312	New Genuine Part
9046110316	90461-10316	New Genuine Part
9046110418	90461-10418	New Genuine Part
9161140816	91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816	91611-B0816	Bolt
9165140816	91651-40816	BOLT
9354013016	93540-13016	Bulb, Combination Meter, No.1
9411050800	94110-50800	Nut(For Repair Actuator Set)

OEM	Part name	Category
82711-30660	Clamp, Rear Washer Hose	Meter ([03.1979 - ] (7903- ))
82711-37250	Wire, Fuse To Fuse(for Combustion Heater)	Meter ([03.1979 - ] (7903- ))
83101-89101	Socket Sub-Assy, Combination Meter Bulb	Meter ([03.1979 - ] (7903- ))
83101-95020	Socket Sub-Assy, Combination Meter Bulb	Meter ([03.1979 - ] (7903- ))
83110-95010	Speedometer Assy	Meter ([03.1979 - ] (7903- ))
83110-95019	Speedometer Assy	Meter ([03.1979 - ] (7903- ))
83110-95028	Speedometer Assy	Meter ([03.1979 - ] (7903- ))
83110-95031	Speedometer Assy	Meter ([03.1979 - ] (7903- ))
83128-95010	Knob, Trip Counter	Meter ([03.1979 - ] (7903- ))
83132-95010	Case, Combination Meter	Meter ([03.1979 - ] (7903- ))
83132-95A01	Case, Combination Meter	Meter ([03.1979 - ] (7903- ))
83134-95010	Cover, Combination Meter, No.1	Meter ([03.1979 - ] (7903- ))
83138-95010	Glass, Combination Meter	Meter ([03.1979 - ] (7903- ))
83145-95013	Lens, Meter, No.1	Meter ([03.1979 - ] (7903- ))
83145-95023	Lens, Meter, No.3	Meter ([03.1979 - ] (7903- ))
83145-95024	Lens, Meter, No.4	Meter ([03.1979 - ] (7903- ))
83145-95028	Lens, Meter, No.6	Meter ([03.1979 - ] (7903- ))
83145-95030	Lens, Meter, No.6	Meter ([03.1979 - ] (7903- ))
83145-95A11	Lens, Meter, No.3	Meter ([03.1979 - ] (7903- ))
83145-95A15	Lens, Meter, No.2	Meter ([03.1979 - ] (7903- ))
83161-20280	Case, Combination Meter Mirror, No.1	Meter ([03.1979 - ] (7903- ))
83161-20380	Case, Combination Meter Mirror, No.1	Meter ([03.1979 - ] (7903- ))
83161-20620	Case, Combination Meter Mirror, No.1	Meter ([03.1979 - ] (7903- ))
83243-95011	Gage Assy, Fuel Receiver	Meter ([03.1979 - ] (7903- ))
83244-95011	Gage Assy, Water Temperature Receiver	Meter ([03.1979 - ] (7903- ))
83247-95011	Plate Sub-Assy, Combination Meter Circuit, No.1	Meter ([03.1979 - ] (7903- ))
83247-95012	Plate Sub-Assy, Combination Meter Circuit, No.1	Meter ([03.1979 - ] (7903- ))
83247-95020	Plate Sub-Assy, Combination Meter Circuit, No.2	Meter ([03.1979 - ] (7903- ))
83710-95015	Cable Assy, Speedometer Drive, No.1	Meter ([03.1979 - ] (7903- ))
83791-95011	New Genuine Part	Meter ([03.1979 - ] (7903- ))
83791-95012	Clamp, Rear Washer Hose	Meter ([03.1979 - ] (7903- ))
83791-95013	New Genuine Part	Meter ([03.1979 - ] (7903- ))
90159-50020	New Genuine Part	Meter ([03.1979 - ] (7903- ))
90461-08183	Wire, Fuse To Fuse(for Combustion Heater)	Meter ([03.1979 - ] (7903- ))
90461-08202	Clamp(For Brake Master Cylinder)	Meter ([03.1979 - ] (7903- ))
90461-08535	New Genuine Part	Meter ([03.1979 - ] (7903- ))
90461-10312	New Genuine Part	Meter ([03.1979 - ] (7903- ))
90461-10316	New Genuine Part	Meter ([03.1979 - ] (7903- ))
90461-10418	New Genuine Part	Meter ([03.1979 - ] (7903- ))
90981-11022	Bulb, Ash Receptacle Lamp	Meter ([03.1979 - ] (7903- ))
90989-01009	New Genuine Part	Meter ([03.1979 - ] (7903- ))
91611-40816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Meter ([03.1979 - ] (7903- ))
91611-B0816	Bolt	Meter ([03.1979 - ] (7903- ))
91651-40816	BOLT	Meter ([03.1979 - ] (7903- ))
93540-13016	Bulb, Combination Meter, No.1	Meter ([03.1979 - ] (7903- ))
94110-50800	Nut(For Repair Actuator Set)	Meter ([03.1979 - ] (7903- ))
99134-12030	Bulb, Position Indicator Lamp	Meter ([03.1979 - ] (7903- ))
