Search › Model › BY30

BY30

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1980 · 3,605 parts · 152 categories

3,605 items

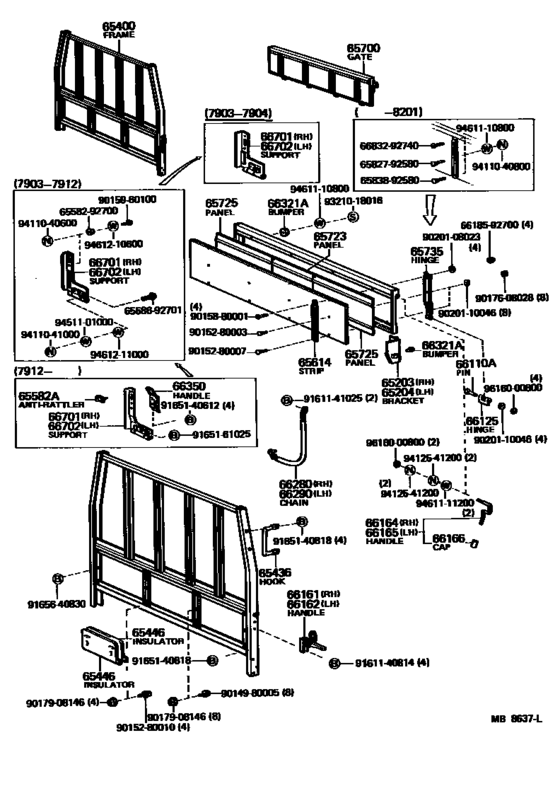

Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB) 73

#	OEM	Part name
65203	65203-92201	Bracket Sub-Assy, Gate Bumper, Rh
65204	65204-92201	Bracket Sub-Assy, Gate Bumper, Lh
65400	65400-92270	Frame Assy, Rear Body Guard
65436	65436-92200	Hook, Guard Frame
65446	65446-92741	Insulator, Header Board
65446	65446-92742	Insulator, Header Board
65582	65582-92760	Anti-Rattler, Support Corner
65614	65716-92740	Strip, Tail Gate Hinge, Inside
65700	65700-92202	Gate Assy, Rear Body Tail
65700	65700-92260	Gate Assy, Rear Body Tail
65723	65723-92702	Panel, Tail Gate
65725	65725-92703	Panel, Tail Gate Side
65725	65725-92740	Panel, Side Gate
65735	66130-92201	Hinge, Tail Gate Male
66110	66116-92703	Pin, Tail Gate Hinge
66125	66113-92740	Hinge Assy, Tail Gate - TAIL GATE, FEMALE
66161	65480-92700	Handle Assy, Side Gate Latck, Rh
66162	65490-92701	Handle Assy, Side Gate Latch, Lh
66164	66150-92700	Handle, Tail Gate Latch, Rh
66164	66150-92701	Handle, Tail Gate Latch, Rh
66165	66160-92700	Handle, Tail Gate Latch, Lh
66165	66160-92701	Handle, Tail Gate Latch, Lh
66166	66165-95010	Cap, Gate Latch Handle
66166	66165-95110	Cap, Gate Latch Handle
66280	66280-92200	Chain Assy, Tail Gate, Rh
66280	66280-92201	Chain Assy, Tail Gate, Rh
66321	66321-92703	Bumper, Gate Rubber
66321	66322-92800	Bumper, Gate Rubber
66350	66350-92760	Handle Assy, Support Corner
66701	65507-92760	Support Sub-Assy, Side Gate, Rh
66702	65508-92760	Support Sub-Assy, Side Gate, Lh
6558292700	65582-92700	Rod, Back Door Locking Control Push
6558692701	65586-92701	Handle, Support Corner, Lh
6582792580	65827-92580	Panel, Rear Body Side, Inner Lh
6583892580	65838-92580	New Genuine Part
6618592700	66185-92700	New Genuine Part
6683292740	66832-92740	New Genuine Part
6683292740	93270-18035	New Genuine Part
9014980005	90149-80005	New Genuine Part
9015280003	90152-80003	New Genuine Part
9015280007	90152-80007	New Genuine Part
9015280010	90152-80010	New Genuine Part
9015880001	90158-80001	New Genuine Part
9015880001	93270-18030	New Genuine Part
9015960100	90159-60100	New Genuine Part
9017608028	90176-08028	New Genuine Part
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9020108023	90201-08023	Washer, Plate (For Transfer Control Cable)
9020110046	90201-10046	New Genuine Part
9161140814	91611-40814	Bolt(For Manual Transmission Oil Pan Setting)
9161140814	91611-60814	Bolt
9161141025	91611-41025	Bolt(for Transaxle & Engine Setting)
9161141025	91612-61025	Bolt (For Control Shaft Cover)
9165140612	91651-40612	BOLT
9165140612	90080-11225	New Genuine Part
9165140818	91651-40818	BOLT, W-WASHER
9165161025	91651-61025	Bolt with washer
9165640830	91656-40830	Bolt (For Transfer Power Take-Off Cover)
9165640830	91651-60830	Bolt (For Transfer Power Take-Off Cover)
9321018016	93210-18016	New Genuine Part
9321018016	93210-18020	New Genuine Part
9411040600	94110-40600	Nut, Rock
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9411041000	94110-41000	Nut(For Steering Damper)
9412541200	94125-41200	Nut, Steering Wheel Set
9451101000	94511-01000	Washer(For Rear Drive Shaft)
9461110800	94611-10800	Washer, Plate (For Transmission Control Cable)
9461111200	94611-11200	New Genuine Part
9461210600	94612-10600	New Genuine Part
9461211000	94612-11000	Plate, Spring Set
9616000800	96160-00800	Ring, E(For Counter Weight)

OEM	Part name	Category
65203-92201	Bracket Sub-Assy, Gate Bumper, Rh	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
65204-92201	Bracket Sub-Assy, Gate Bumper, Lh	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
65400-92270	Frame Assy, Rear Body Guard	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
65436-92200	Hook, Guard Frame	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
65446-92741	Insulator, Header Board	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
65446-92742	Insulator, Header Board	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
65480-92700	Handle Assy, Side Gate Latck, Rh	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
65490-92701	Handle Assy, Side Gate Latch, Lh	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
65507-92760	Support Sub-Assy, Side Gate, Rh	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
65508-92760	Support Sub-Assy, Side Gate, Lh	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
65582-92700	Rod, Back Door Locking Control Push	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
65582-92760	Anti-Rattler, Support Corner	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
65586-92701	Handle, Support Corner, Lh	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
65700-92202	Gate Assy, Rear Body Tail	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
65700-92260	Gate Assy, Rear Body Tail	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
65716-92740	Strip, Tail Gate Hinge, Inside	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
65723-92702	Panel, Tail Gate	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
65725-92703	Panel, Tail Gate Side	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
65725-92740	Panel, Side Gate	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
65827-92580	Panel, Rear Body Side, Inner Lh	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
65838-92580	New Genuine Part	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
66113-92740	Hinge Assy, Tail Gate - TAIL GATE, FEMALE	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
66116-92703	Pin, Tail Gate Hinge	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
66130-92201	Hinge, Tail Gate Male	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
66150-92700	Handle, Tail Gate Latch, Rh	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
66150-92701	Handle, Tail Gate Latch, Rh	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
66160-92700	Handle, Tail Gate Latch, Lh	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
66160-92701	Handle, Tail Gate Latch, Lh	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
66165-95010	Cap, Gate Latch Handle	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
66165-95110	Cap, Gate Latch Handle	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
66185-92700	New Genuine Part	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
66280-92200	Chain Assy, Tail Gate, Rh	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
66280-92201	Chain Assy, Tail Gate, Rh	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
66321-92703	Bumper, Gate Rubber	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
66322-92800	Bumper, Gate Rubber	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
66350-92760	Handle Assy, Support Corner	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
66832-92740	New Genuine Part	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
90080-11225	New Genuine Part	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
90149-80005	New Genuine Part	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
90152-80003	New Genuine Part	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
90152-80007	New Genuine Part	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
90152-80010	New Genuine Part	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
90158-80001	New Genuine Part	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
90159-60100	New Genuine Part	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
90176-08028	New Genuine Part	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
90179-08146	Nut	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
90179-08204	Nut	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
90201-08023	Washer, Plate (For Transfer Control Cable)	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
90201-10046	New Genuine Part	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
91611-40814	Bolt(For Manual Transmission Oil Pan Setting)	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
91611-41025	Bolt(for Transaxle & Engine Setting)	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
91611-60814	Bolt	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
91612-61025	Bolt (For Control Shaft Cover)	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
91651-40612	BOLT	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
91651-40818	BOLT, W-WASHER	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
91651-60830	Bolt (For Transfer Power Take-Off Cover)	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
91651-61025	Bolt with washer	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
91656-40830	Bolt (For Transfer Power Take-Off Cover)	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
93210-18016	New Genuine Part	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
93210-18020	New Genuine Part	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
93270-18030	New Genuine Part	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
93270-18035	New Genuine Part	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
94110-40600	Nut, Rock	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
94110-40800	Nut(For Steering Damper)	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
94110-41000	Nut(For Steering Damper)	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
94125-41200	Nut, Steering Wheel Set	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
94130-00802	Nut, No.1 (For Center Support Bearing)	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
94511-01000	Washer(For Rear Drive Shaft)	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
94611-10800	Washer, Plate (For Transmission Control Cable)	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
94611-11200	New Genuine Part	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
94612-10600	New Genuine Part	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
94612-11000	Plate, Spring Set	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
96160-00800	Ring, E(For Counter Weight)	Rear Body Guard Frame & Tail Gate ([03.1979 - 08.1984] (7903-8408)TB)
