Search › Model › BY30

BY30

Toyota TOYOACE-TOWNACE-MASTERACE-LITEACE · 1980 · 3,605 parts · 152 categories

3,605 items

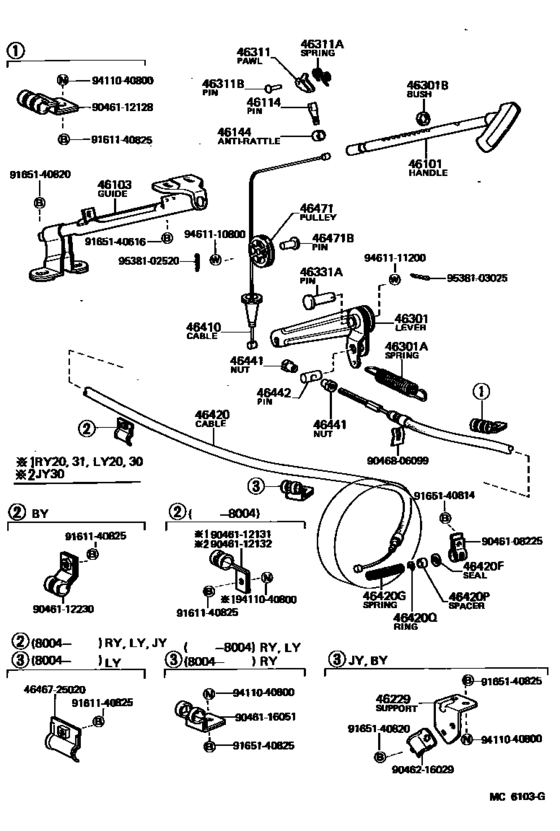

Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408)) 46

#	OEM	Part name
46101	46101-25021	Handle Sub-Assy, Parking Brake Control
46103	46103-25051	Guide Sub-Assy, Parking Brake Plunger
46114	46114-20010	Pin(For Parking Brake Handle Set)
46144	46144-20010	Anti-Rattle, Parking Brake Plunger
46229	46229-25020	Support, Parking Brake Cable Guide
46301	46307-25030	Lever Sub-Assy, Parking Brake Intermediate
46301	90506-18090	Spring, Tension(For Intermediate Lever)
46301	90386-12048	Bush Or Ring, O (For Parking Brake Plunger)
46311	46311-30041	Pawl, Parking Brake
46311	90508-08106	Spring, Torsion(For Parking Brake Plunger)
46311	46313-40010	Pin, Parking Brake Pawl
46331	90240-12141	Pin, Shift Lever - W/HOLE(FOR INTERMEDIATE LEVER PULL ROD)
46410	46410-25070	Cable Assy, Parking Brake, No.1
46420	46420-25080	Cable Assy, Parking Brake, No.2
46420	90303-10001	Seal, Dust(For Parking Brake Cable)
46420	90501-14021	Spring(For Parking Cable Inner Wire Set)
46420	90560-08002	Spacer(For Parking Brake Handle)
46420	96160-00700	Ring, E(For Chain Tensioner Slipper)
46441	46441-30010	Nut, Wire Adjusting, No.1
46442	46442-35010	Pin, Wire Pivot
46471	46471-20010	Pulley, Wire
46471	90240-08062	Pin, W/hole(For Intermediate Lever)
4646725020	46467-25020	Clamp, Cable
9046108225	90461-08225	Clamp, No.3(For Parking Brake Cable)
9046112128	90461-12128	New Genuine Part
9046112131	90461-12131	New Genuine Part
9046112132	90461-12132	New Genuine Part
9046112230	90461-12230	New Genuine Part
9046116051	90461-16051	New Genuine Part
9046216029	90462-16029	New Genuine Part
9046806099	90468-06099	New Genuine Part
9161140825	91611-40825	Bolt(For Clutch Release Cylinder Setting)
9161140825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9165140616	91651-40616	BOLT
9165140616	91621-60614	Bolt(For Transaxle & Engine Setting)
9165140616	90080-11395	New Genuine Part
9165140814	91651-40814	BOLT
9165140814	90080-11228	New Genuine Part
9165140820	91651-40820	Bolt
9165140825	91651-40825	Bolt(For Clutch Release Cylinder Setting)
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9461110800	94611-10800	Washer, Plate (For Transmission Control Cable)
9461111200	94611-11200	New Genuine Part
9538102520	95381-02520	PINCOTTER
9538103025	95381-03025	PIN

OEM	Part name	Category
46101-25021	Handle Sub-Assy, Parking Brake Control	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
46103-25051	Guide Sub-Assy, Parking Brake Plunger	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
46114-20010	Pin(For Parking Brake Handle Set)	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
46144-20010	Anti-Rattle, Parking Brake Plunger	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
46229-25020	Support, Parking Brake Cable Guide	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
46307-25030	Lever Sub-Assy, Parking Brake Intermediate	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
46311-30041	Pawl, Parking Brake	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
46313-40010	Pin, Parking Brake Pawl	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
46410-25070	Cable Assy, Parking Brake, No.1	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
46420-25080	Cable Assy, Parking Brake, No.2	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
46441-30010	Nut, Wire Adjusting, No.1	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
46442-35010	Pin, Wire Pivot	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
46467-25020	Clamp, Cable	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
46471-20010	Pulley, Wire	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
90080-11228	New Genuine Part	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
90080-11395	New Genuine Part	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
90240-08062	Pin, W/hole(For Intermediate Lever)	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
90240-12141	Pin, Shift Lever - W/HOLE(FOR INTERMEDIATE LEVER PULL ROD)	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
90303-10001	Seal, Dust(For Parking Brake Cable)	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
90386-12048	Bush Or Ring, O (For Parking Brake Plunger)	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
90461-08225	Clamp, No.3(For Parking Brake Cable)	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
90461-12128	New Genuine Part	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
90461-12131	New Genuine Part	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
90461-12132	New Genuine Part	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
90461-12230	New Genuine Part	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
90461-16051	New Genuine Part	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
90462-16029	New Genuine Part	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
90468-06099	New Genuine Part	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
90501-14021	Spring(For Parking Cable Inner Wire Set)	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
90506-18090	Spring, Tension(For Intermediate Lever)	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
90508-08106	Spring, Torsion(For Parking Brake Plunger)	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
90560-08002	Spacer(For Parking Brake Handle)	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
91611-40825	Bolt(For Clutch Release Cylinder Setting)	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
91621-60614	Bolt(For Transaxle & Engine Setting)	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
91651-40616	BOLT	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
91651-40814	BOLT	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
91651-40820	Bolt	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
91651-40825	Bolt(For Clutch Release Cylinder Setting)	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
94110-40800	Nut(For Steering Damper)	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
94130-00802	Nut, No.1 (For Center Support Bearing)	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
94611-10800	Washer, Plate (For Transmission Control Cable)	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
94611-11200	New Genuine Part	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
95381-02520	PINCOTTER	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
95381-03025	PIN	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
96160-00700	Ring, E(For Chain Tensioner Slipper)	Parking Brake & Cable ([03.1979 - 08.1984] (7903-8408))
