BXD20

Toyota MEGA-CRUISER · 1996 · 5,405 parts · 357 categories

5,405 items

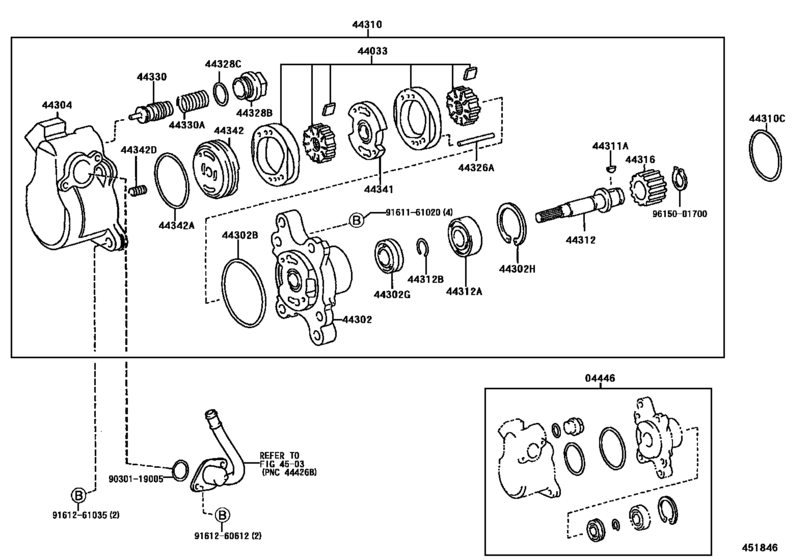

Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- )) 55

#	OEM	Part name
4446	04446-65010	Gasket Kit, Power Steering Pump
44033	44033-36050	Rotor Sub-Assy, W/cam & Vane
44036	44036-36020	Cover Sub-Assy(For Vane Pump Oil Filter)
44037	44037-36020	Cover Sub-Assy, Oil Reservoir
44302	44302-65020	Housing Sub-Assy, Vane Pump, Front
44302	90029-20043	Ring, O, No.1(For Vane Pump Housing)
44302	90029-21018	Seal, Oil, No.2(For Vane Pump Housing)
44302	96151-04000	Ring, Snap(For Hydraulic Motor Vane Pump Drive Shaft)
44304	44304-65020	Housing Sub-Assy, Vane Pump, Rear
44305	44305-36020	Cap Sub-Assy, Vane Pump Oil Reservoir
44310	44310-65020	Pump Assy, Vane
44310	90301-60002	Ring, O(For Vane Pump)
44311	90029-18001	Key, Woodruff(For Hydraulic Motor Vane Pump Drive Shaft)
44312	44312-36120	Shaft, Vane Pump
44312	90029-36003	Bearing(For Vane Pump Shaft)
44312	90029-52402	Ring, Shaft Spring(For Hyd Motor Vane Pump Drive Shaft)
44316	44316-36020	Gear, Vane Pump
44326	44347-24010	Pin, Straight(For Vane Pump Cam Ring)
44328	44328-89101	End, Vane Pump Housing
44328	90029-20042	Ring, O(For Pump Housing End)
44330	44330-36230	Valve Assy, Flow Control
44330	44330-36240	Valve Assy, Flow Control
44330	44330-36250	Valve Assy, Flow Control
44330	90029-60002	Spring, Compression(For Flow Control Valve)
44341	44341-24020	Plate, Vane Pump Side, Front
44342	44342-36050	Plate, Vane Pump Side, Rear
44342	90301-55007	Ring, O(For Vane Pump Side Plate Rear)
44342	90029-60001	Spring, Compression(For Pressure Plate)
44360	44360-65020	Reservoir Assy, Vane Pump Oil
44361	44361-37010	Filter, Oil(For Vane Pump)
44363	44363-37130	Strainer, Oil(For Vane Pump)
44366	44366-37010	Seat, Pump Pulley
44369	44369-65020	Bracket, Oil Reservoir, No.1
44383	44383-37010	Seal, Oil(For Vane Pump Oil Filter)
44384	44384-37010	Nut(For Oil Reservoir Cover)
44385	44385-37010	Support, Spring, Upper(For Vane Pump Oil Reservoir)
44386	44386-37010	Bracket(For Vane Pump Oil Reservoir)
9002199001	90021-99001	New Genuine Part
9002910600	90029-10600	TOOL
9002920701	90029-20701	Seal, Dust(For Oil Reservoir Cover)
9002920704	90029-20704	Seal, Dust(For Oil Reservoir Cover)
9011908434	90119-08434	New Genuine Part
9030119005	90301-19005	Ring, O, No.1(For Oil Filter)
9151260620	91512-60620	Bolt(For Clutch Release Bearing Hub Retainer)
9151260620	91511-B0620	Bolt(For Clutch Release Bearing Hub Retainer)
9161161020	91611-61020	Bolt(For Transaxle & Engine Setting)
9161161020	91612-B1020	Bolt (For Transfer Case)Cover No.2
9161260612	91612-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161260612	91611-G0612	Bolt
9161261035	91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)
9412040800	94120-40800	Nut(For Clutch Pedal Stopper)
9415080600	94150-80600	NUT FLANGE
9415080800	94150-80800	NUT, FLANGE
9471191200	94711-91200	New Genuine Part
9615001700	96150-01700	Ring

OEM	Part name	Category
04446-65010	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44033-36050	Rotor Sub-Assy, W/cam & Vane	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44036-36020	Cover Sub-Assy(For Vane Pump Oil Filter)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44037-36020	Cover Sub-Assy, Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44302-65020	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44304-65020	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44305-36020	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44310-65020	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44312-36120	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44316-36020	Gear, Vane Pump	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44328-89101	End, Vane Pump Housing	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44330-36230	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44330-36240	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44330-36250	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44341-24020	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44342-36050	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44347-24010	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44360-65020	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44361-37010	Filter, Oil(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44363-37130	Strainer, Oil(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44366-37010	Seat, Pump Pulley	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44369-65020	Bracket, Oil Reservoir, No.1	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44383-37010	Seal, Oil(For Vane Pump Oil Filter)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44384-37010	Nut(For Oil Reservoir Cover)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44385-37010	Support, Spring, Upper(For Vane Pump Oil Reservoir)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
44386-37010	Bracket(For Vane Pump Oil Reservoir)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
90021-99001	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
90029-10600	TOOL	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
90029-18001	Key, Woodruff(For Hydraulic Motor Vane Pump Drive Shaft)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
90029-20042	Ring, O(For Pump Housing End)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
90029-20043	Ring, O, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
90029-20701	Seal, Dust(For Oil Reservoir Cover)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
90029-20704	Seal, Dust(For Oil Reservoir Cover)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
90029-21018	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
90029-36003	Bearing(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
90029-52402	Ring, Shaft Spring(For Hyd Motor Vane Pump Drive Shaft)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
90029-60001	Spring, Compression(For Pressure Plate)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
90029-60002	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
90119-08434	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
90301-19005	Ring, O, No.1(For Oil Filter)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
90301-55007	Ring, O(For Vane Pump Side Plate Rear)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
90301-60002	Ring, O(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
91511-B0620	Bolt(For Clutch Release Bearing Hub Retainer)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
91512-60620	Bolt(For Clutch Release Bearing Hub Retainer)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
91611-61020	Bolt(For Transaxle & Engine Setting)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
91611-G0612	Bolt	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
91612-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
91612-B1020	Bolt (For Transfer Case)Cover No.2	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
94120-40800	Nut(For Clutch Pedal Stopper)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
94150-80600	NUT FLANGE	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
94150-80800	NUT, FLANGE	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
94711-91200	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
96150-01700	Ring	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
96151-04000	Ring, Snap(For Hydraulic Motor Vane Pump Drive Shaft)	Vane Pump & Reservoir (Power Steering) ([06.1999 - ] (9906- ))
