BXD20

Toyota MEGA-CRUISER · 1996 · 5,405 parts · 357 categories

5,405 items

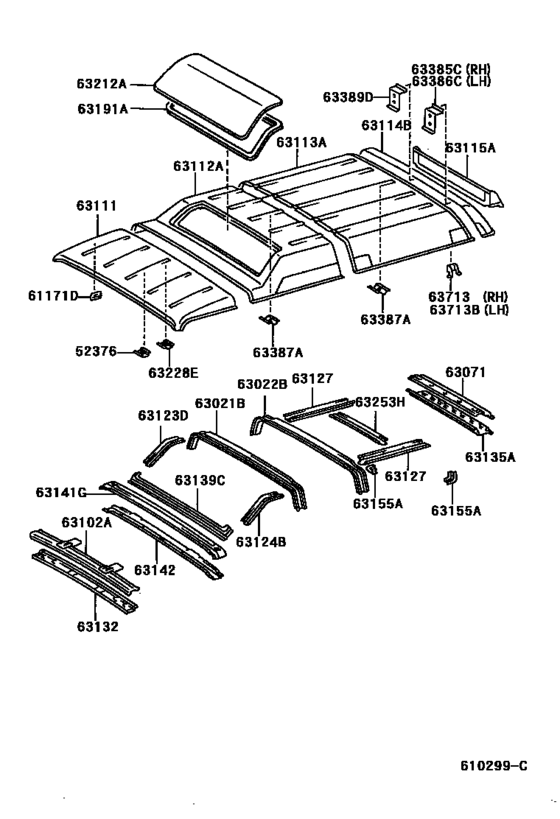

Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- )) 32

#	OEM	Part name
52376	52376-65010	Bracket, Mounting Hook Guide
61171	61171-65020	Bracket, Antenna Pole Mounting
63021	63021-65010	Strength Sub-Assy, Roof Panel
63022	63022-65030	Strength Sub-Assy, Roof Panel, No.2
63071	63071-65010	Frame Sub-Assy, Back Door Opening, Upper
63102	63102-65010	Panel Sub-Assy, Windshield Header
63111	63111-65030	Panel, Roof
63112	63112-65030	Panel, Roof, No.2
63112	63112-65040	Panel, Roof, No.2
63112	63112-65050	Panel, Roof, No.2
63113	63113-65040	Panel, Roof, No.3
63113	63113-65060	Panel, Roof, No.3
63114	63115-65010	Panel, Roof, No.4
63115	63116-65010	Panel, Roof, No.5
63123	63123-65010	Reinforcement, Roof Panel, Front Rh
63124	63124-65010	Reinforcement, Roof Panel, Front Lh
63127	63127-65011	Reinforcement, Roof Panel, No.5
63132	63132-65010	Panel, Windshield Header, Inner
63135	63135-65010	Frame, Back Door Opening, Lower
63139	63139-65010	Frame, Roof Window
63141	63103-65020	Reinforcement, Roof Panel, No.1
63141	63141-65030	Reinforcement, Roof Panel, No.1
63142	63142-65010	Reinforcement, Roof Panel, No.2
63155	63155-65020	Plate, Roof Panel Reinforcement
63191	63191-65010	Weatherstrip, Roof Window, No.1
63212	63212-65020	Glass, Roof Window
63228	63228-65010	Bracket, Roof Headlining, No.1
63253	63253-65020	Strength, Roof Panel, Center No.3
63385	63385-65011	Retainer, Roof Headlining Trim Side, Rh
63386	63386-65011	Retainer, Roof Headlining Trim Side, Lh
63387	63387-65011	Bracket, Roof Headlining Holder
63713	63713-65010	Bracket, Roof Panel Reinforcement, No.3

OEM	Part name	Category
52376-65010	Bracket, Mounting Hook Guide	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
61171-65020	Bracket, Antenna Pole Mounting	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63021-65010	Strength Sub-Assy, Roof Panel	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63022-65030	Strength Sub-Assy, Roof Panel, No.2	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63071-65010	Frame Sub-Assy, Back Door Opening, Upper	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63102-65010	Panel Sub-Assy, Windshield Header	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63103-65020	Reinforcement, Roof Panel, No.1	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63111-65030	Panel, Roof	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63112-65030	Panel, Roof, No.2	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63112-65040	Panel, Roof, No.2	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63112-65050	Panel, Roof, No.2	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63113-65040	Panel, Roof, No.3	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63113-65060	Panel, Roof, No.3	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63115-65010	Panel, Roof, No.4	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63116-65010	Panel, Roof, No.5	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63123-65010	Reinforcement, Roof Panel, Front Rh	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63124-65010	Reinforcement, Roof Panel, Front Lh	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63127-65011	Reinforcement, Roof Panel, No.5	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63132-65010	Panel, Windshield Header, Inner	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63135-65010	Frame, Back Door Opening, Lower	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63139-65010	Frame, Roof Window	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63141-65030	Reinforcement, Roof Panel, No.1	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63142-65010	Reinforcement, Roof Panel, No.2	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63155-65020	Plate, Roof Panel Reinforcement	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63191-65010	Weatherstrip, Roof Window, No.1	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63212-65020	Glass, Roof Window	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63228-65010	Bracket, Roof Headlining, No.1	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63253-65020	Strength, Roof Panel, Center No.3	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63385-65011	Retainer, Roof Headlining Trim Side, Rh	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63386-65011	Retainer, Roof Headlining Trim Side, Lh	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63387-65011	Bracket, Roof Headlining Holder	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
63713-65010	Bracket, Roof Panel Reinforcement, No.3	Roof Panel & Back Panel ([12.1996 - ] ｱﾘ(ﾊｲﾙ-ﾌ) (9612- ))
