Search › Model › BXD20

BXD20

Toyota MEGA-CRUISER · 1996 · 5,405 parts · 357 categories

5,405 items

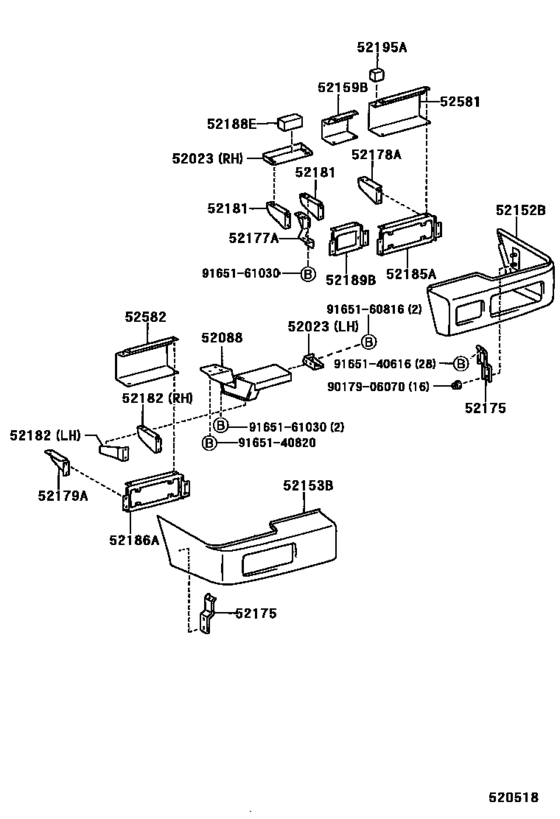

Rear Bumper & Bumper Stay ([01.1996 - ] (9601- )) 29

#	OEM	Part name
52023	52171-65020	Reinforcement Sub-Assy, Rear Bumper
52023	52172-65020	Reinforcement Sub-Assy, Rear Bumper
52088	52088-65010	Stay Sub-Assy, Rear Bumper Side, Lh
52152	52165-65020-C0	Extension, Rear Bumper, Rh
52153	52166-65020-C0	Extension, Rear Bumper, Lh
52153	52166-65030-C0	Extension, Rear Bumper, Lh
52159	52159-65010	Plate, Rear Bumper
52175	52175-65020	Bracket, Rear Bumper Arm Mounting
52177	52177-65010	Retainer, Rear Bumper Extension, Rh
52178	52178-65010	Reinforcement, Rear Bumper Bar Corner, Rh
52179	52179-65010	Reinforcement, Rear Bumper Bar Corner, Lh
52181	52181-65030	Arm, Rear Bumper, Rh
52182	52182-65030	Arm, Rear Bumper, Lh
52185	52185-65010	Bracket, Rear Bumper Side, Rh
52186	52186-65010	Bracket, Rear Bumper Side, Lh
52188	52188-65030	Spacer, Rear Bumper Mounting
52189	52189-65020	Bracket, Rear Bumper Side, No.3
52195	52195-65010	Spacer, Rear Bumper Extension
52581	52581-65010	Protector, Rear Bumper, Rh
52582	52582-65010	Protector, Rear Bumper, Lh
9017906070	90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9165140616	91651-40616	BOLT
9165140616	91621-60614	Bolt(For Transaxle & Engine Setting)
9165140616	90080-11395	New Genuine Part
9165140820	91651-40820	Bolt
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt
9165161030	91651-61030	Bolt (For Transfer Case)

OEM	Part name	Category
52088-65010	Stay Sub-Assy, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
52159-65010	Plate, Rear Bumper	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
52165-65020-C0	Extension, Rear Bumper, Rh	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
52166-65020-C0	Extension, Rear Bumper, Lh	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
52166-65030-C0	Extension, Rear Bumper, Lh	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
52171-65020	Reinforcement Sub-Assy, Rear Bumper	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
52172-65020	Reinforcement Sub-Assy, Rear Bumper	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
52175-65020	Bracket, Rear Bumper Arm Mounting	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
52177-65010	Retainer, Rear Bumper Extension, Rh	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
52178-65010	Reinforcement, Rear Bumper Bar Corner, Rh	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
52179-65010	Reinforcement, Rear Bumper Bar Corner, Lh	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
52181-65030	Arm, Rear Bumper, Rh	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
52182-65030	Arm, Rear Bumper, Lh	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
52185-65010	Bracket, Rear Bumper Side, Rh	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
52186-65010	Bracket, Rear Bumper Side, Lh	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
52188-65030	Spacer, Rear Bumper Mounting	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
52189-65020	Bracket, Rear Bumper Side, No.3	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
52195-65010	Spacer, Rear Bumper Extension	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
52581-65010	Protector, Rear Bumper, Rh	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
52582-65010	Protector, Rear Bumper, Lh	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
90080-11395	New Genuine Part	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
90080-11396	Bolt	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
91621-60614	Bolt(For Transaxle & Engine Setting)	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
91651-40616	BOLT	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
91651-40820	Bolt	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
91651-60816	BOLT	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
91651-61030	Bolt (For Transfer Case)	Rear Bumper & Bumper Stay ([01.1996 - ] (9601- ))
