BXD20

Toyota MEGA-CRUISER · 1996 · 5,405 parts · 357 categories
BXD20 ×

← Back to categories

5,405 items

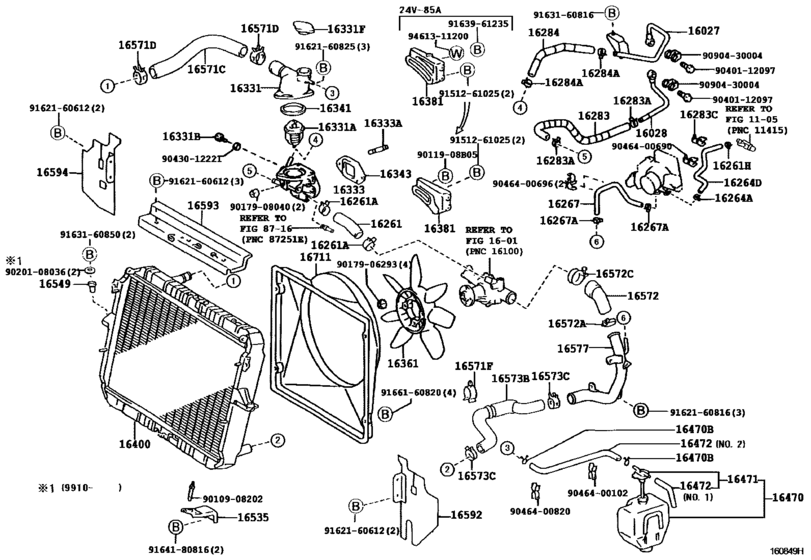

Radiator & Water Outlet ([06.1999 - ] (9906- )) 133
#OEMPart name
16027 16027-58040 Pipe Sub-Assy, Turbo Water, No.1
16027 16027-58030 Pipe Sub-Assy, Turbo Water, No.1
16028 16028-58020 Pipe Sub-Assy, Turbo Water, No.2
16261 16261-58020 Hose, Water By-Pass
16261 90467-28005 Clamp Or Clip, Hose(For Water By-Pass Hose)
16261 90467-15022 Clip Or Clamp(For Ventilation Hose)
16261 16261-56012 Hose, Water By-Pass
16261 90467-28004 Clamp Or Clip, Hose(For Water By-Pass Hose)
16261 90467-28007 Clip Or Clamp(For Ventilation Hose)
16261 90404-52028 Union(For Water By-Pass Hose)
16261 16261-58010 Hose, Water By-Pass, No.1
16264 16264-58050 Hose, Water By-Pass, No.2
16267 16267-58030 Hose, Water By-Pass, No.3
16282 16282-58010 Hose, Water By-Pass, No.5
16283 16285-58040 Hose, Water By-Pass, No.6
16283 90464-00769 Clamp Or Clip(For Water By-Pass Hose)
16283 16283-56010 Hose, Water By-Pass, No.6
16283 90464-00518 Clamp Or Clip(For Water By-Pass Hose)
16283 16285-58030 Hose, Water By-Pass, No.6
16284 16284-58060 Hose, Turbo Water, No.1
16284 16284-58050 Hose, Turbo Water, No.1
16288 16288-58020 Pipe, Water By-Pass, No.4
16295 16295-56010 Hose, Water By-Pass, No.7
16331 16331-58100 Outlet, Water
16331 90916-03103 Thermostat
16331 90341-12006 Plug(For Water Outlet)
16331 16401-67150 Cap Sub-Assy(For Water Outlet)
16331 16331-58071 Outlet, Water
16331 16401-54750 Radiator Cap
16333 16333-58110 Housing, Water Outlet
16333 92112-60832 Bolt, Stud(For Water Outlet Housing)
16333 16333-58070 Housing, Water Outlet
16333 16333-58100 Housing, Water Outlet
16341 16341-56030 Gasket, Water Outlet
16343 16343-56023 Gasket, Water Outlet Housing
16347 16347-67010 Gasket(For Turbo Water Pipe)
16361 16361-58040 Fan
16361 16361-41090 Fan
16381 16381-58101 Bar, Fan Belt Adjusting
16381 16381-58150 Bar, Fan Belt Adjusting
16381 16381-58130 Bar, Fan Belt Adjusting
16400 16400-58670 Radiator Assy
16400 16400-58671 Radiator Assy
16400 16417-15210 Plug, Radiator Drain Cock
16400 16418-15520 Packing(For Radiator Drain Cock)
16400 16400-58500 Radiator Assy
16400 16417-24200 Plug, Radiator Drain Cock
16400 16418-24200 Packing(For Radiator Drain Cock)
16400 16418-50121 Packing(For Radiator Drain Cock)
16403 16403-58670 Core Sub-Assy, Radiator
16442 16442-58460 Ring, O(For Radiator Upper Tank)
16453 16453-58670 Plate, Radiator Side
16454 16454-58670 Plate, Radiator Side
16455 16455-67020 Bolt, Radiator Side Support Plate
16456 16456-58670 Bracket, Radiator Mounting, Rh
16457 16457-58670 Bracket, Radiator Mounting, Lh
16458 16458-58670 Bracket, Condenser Mounting, Rh
16459 16459-58670 Bracket, Condenser Mounting, Lh
16463 16463-58670 Plate, Radiator Tank, Lock, Lower
16470 16470-58101 Tank Assy, Radiator Reserve
16470 16470-78050 Tank Assy, Radiator Reserve
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16470 16470-58100 Tank Assy, Radiator Reserve
16471 16405-58081 Cap Sub-Assy, Reserve Tank
16471 16405-78050 Cap Sub-Assy, Reserve Tank
16471 16405-58080 Cap Sub-Assy, Reserve Tank
16472 16567-58140 Hose, Breather
16472 85338-22020 Hose, Breather
16535 16535-58040 Support, Radiator, Lower
16535 16535-58041 Support, Radiator, Lower
16535 16535-58010 Support, Radiator, Lower
16547 16547-68070 Bush, Radiator Support, No.1
16549 16549-61010 Collar, Radiator Support, No.2
16571 16571-58200 Hose, Radiator, Inlet
16571 90467-42001 Clamp Or Clip, Hose(For Radiator Inlet)
16571 90466-41008 Clamp, Hose(For Radiator Hose)
16571 90469-45001 Clamp, Sub Radiator Hose
16571 16571-58070 Hose, Radiator, Inlet
16572 16572-58110 Hose, Radiator, Outlet
16572 90467-41004 Clamp Or Clip, Hose(For Radiator Outlet No.1)
16572 90466-41003 Clip, Radiator Hose, No.1
16572 90467-48003 Clamp Or Clip, Hose(For Radiator Outlet No.1)
16572 16572-56091 Hose, Radiator, Outlet
16572 96111-10490 Clamp Or Clip, Sub Radiator Hose
16572 96111-10570 Clamp Or Clip, Hose(For Radiator Outlet No.1)
16573 16573-58140 Hose, Radiator, No.3
16573 90467-41005 Clamp Or Clip, Sub Radiator Hose
16573 16573-58030 Hose, Radiator, No.3
16577 16577-58090 Pipe, Radiator, No.7
16577 16577-58021 Pipe, Radiator, No.7
16592 16592-58050 Guide, Radiator Air, No.3
16593 16593-58140 Guide, Radiator Air, No.1
16594 16594-58050 Guide, Radiator Air, No.2
16611 16611-58040 Bracket, Radiator Reserve Tank
16711 16711-58240 Shroud Sub-Assy, Fan
16711 16711-58110 Shroud, Fan
16712 16712-58010 Shroud, Fan, No.2
9011908 90119-08B05 New Genuine Part
9010908202 90109-08202 New Genuine Part
9011910409 90119-10409 New Genuine Part
9017906080 90179-06080 NUT
9017906293 90179-06293 NUT
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9020108036 90201-08036 WASHER
9040112097 90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)
9043012221 90430-12221 Gasket
9046400102 90464-00102 Clamp, No.3(For Luggage Door Lock Control Cable)
9046400690 90464-00690 New Genuine Part
9046400696 90464-00696 Clamp, No.2(For Vacuum Hose)
9046400820 90464-00820 New Genuine Part
9090430004 90904-30004 Gasket(For Turbo Oil Inlet Pipe)
9151261025 91512-61025 BOLT WASHER BASED H
9151261025 91512-G1025 BOLTFLANGE
9162160612 91621-60612 BOLTWWASHER
9162160612 91621-J0612 BOLT W-WASHER
9162160816 91621-60816 New Genuine Part
9162160816 91621-B0816 BOLT WWASHER
9162160820 91621-60820 New Genuine Part
9162160820 91651-B0822 BOLT WWASHER
9162160825 91621-60825 BOLT
9162160825 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9163160816 91631-60816 BOLT
9163160850 91631-60850 BOLT WWASHER
9163961235 91639-61235 New Genuine Part
9164180816 91641-80816 BOLT W/WASHER
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
9166160820 91661-60820 New Genuine Part
9166160820 91661-B0820 Bolt
9166260620 91662-60620 New Genuine Part
9166260620 91661-60620 New Genuine Part
9212260814 92122-60814 New Genuine Part
9461311200 94613-11200 WASHER
