Search › Model › BXD20

BXD20

Toyota MEGA-CRUISER · 1996 · 5,405 parts · 357 categories
BXD20 ×

← Back to categories

5,405 items

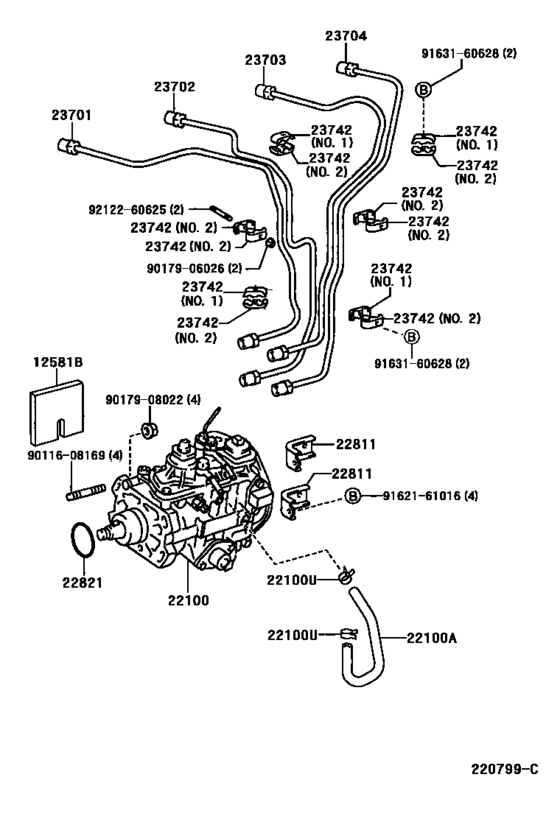

Injection Pump Assembly ([06.1999 - ] (9906- )) 35
#OEMPart name
12581 12581-58050 Insulator, Cylinder Block, No.1
12581 12581-58051 Insulator, Cylinder Block, No.1
22100 22100-5C610 Pump Assy, Injection Or Supply
22100 22100-5C700 Pump Assy, Injection Or Supply
22100 82817-65050 Protector, Wiring Harness, No.1
22100 82989-36010 Wire, Connecting Repair
22100 82989-65020 Wire, Connecting Repair
22100 82999-12020 Wire Sub-assy, Oil Temperature Sender
22100 90463-15002 Clamp (For Accelerator Wire Set)
22100 23271-58110 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100 90467-18002 Clip(For Ventilation Hose)
22100 90467-18008 Clip(For Water By-Pass Hose No.2)
22811 22811-58060 Stay, Injection Pump, No.1
22821 90301-49003 Gasket, Injection Pump
23701 23701-58070 Pipe Sub-Assy, Injection, No.1
23701 23701-58071 Pipe Sub-Assy, Injection, No.1
23702 23702-58070 Pipe Sub-Assy, Injection, No.2
23702 23702-58071 Pipe Sub-Assy, Injection, No.2
23703 23703-58070 Pipe Sub-Assy, Injection, No.3
23703 23703-58071 Pipe Sub-Assy, Injection, No.3
23704 23704-58070 Pipe Sub-Assy, Injection, No.4
23704 23704-58071 Pipe Sub-Assy, Injection, No.4
23742 23741-58020 Clamp, Injection Pipe, No.2
23742 23742-27010 Clamp, Injection Pipe, No.2
23742 23742-58020 Clamp, Injection Pipe, No.2
23742 23742-58030 Clamp, Injection Pipe, No.2
9011608169 90116-08169 Bolt,stud(For Timing Gear Case)
9017906026 90179-06026 Nut, Cap(For Cylinder Head Cover)
9017906026 90179-06274 Nut
9017908022 90179-08022 NUT
9162161016 91621-61016 New Genuine Part
9162161016 91622-61016 New Genuine Part
9163160628 91631-60628 New Genuine Part
9163160628 90119-06775 BOLT WWASHER
9212260625 92122-60625 New Genuine Part
Source
Public OEM parts-catalog data
