Search › Model › BXD20

BXD20

Toyota MEGA-CRUISER · 1996 · 5,405 parts · 357 categories

5,405 items

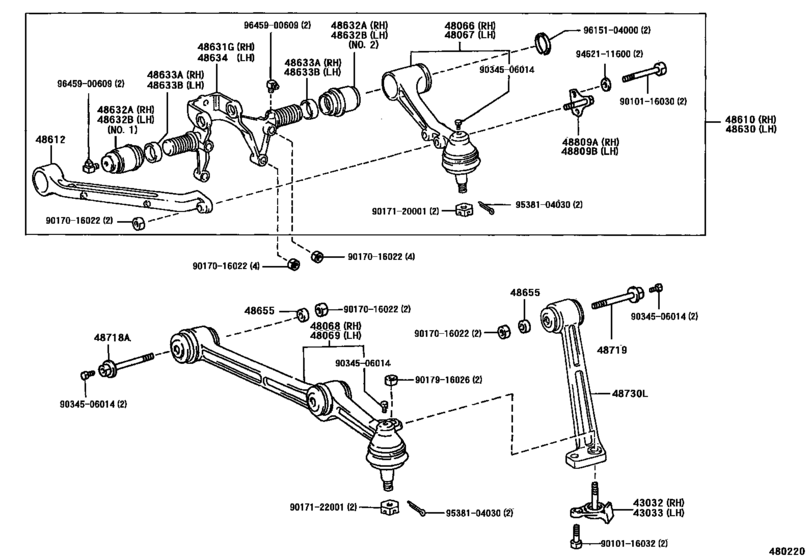

Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- )) 31

#	OEM	Part name
43032	43032-65010	Stopper Sub-Assy, Steering Knuckle, Rh
43033	43033-65010	Stopper Sub-Assy, Steering Knuckle, Lh
48066	48601-65010	Arm Sub-Assy, Front Suspension, Upper Rh
48067	48602-65010	Arm Sub-Assy, Front Suspension, Upper Lh
48068	48620-65010	Arm Sub-Assy, Front Suspension, Lower No.1 Rh
48069	48640-65010	Arm Sub-Assy, Front Suspension, Lower No.1 Lh
48610	48610-69035	Arm Assy, Front Suspension Upper, Rh
48612	48612-65010	Arm, Upr No.2
48630	48630-69035	Arm Assy, Front Suspension, Upper Lh
48631	48631-65010	Shaft, Front Upper Arm, No.2 Rh
48632	48632-65010	Bush, Front Suspension Upper Arm, Rh
48632	48632-65020	Bush, Front Suspension Upper Arm, Rh
48633	48633-36010	Seal, Front Suspension Upper Arm Pivot Dust, Rh
48634	48634-65010	Shaft, Front Upper Arm, No.2 Lh
48655	48655-65010	Bush, Lower Arm, No.2
48718	48718-65010	Shaft, Front Suspension Lower Arm, No.1
48719	48719-65010	Shaft, Front Suspension Lower Arm, No.2
48730	48730-65010	Arm Assy, Rear Suspension, No.2 Rh
48809	48809-36020	Bracket, Front Stabilizer, No.1 Rh
48809	48809-36030	Bracket, Front Stabilizer, No.1 Lh
9010116030	90101-16030	New Genuine Part
9010116032	90101-16032	New Genuine Part
9017016022	90170-16022	New Genuine Part
9017120001	90171-20001	Nut, Castle (For Front Lower Ball Joint Rh)
9017122001	90171-22001	Nut(For Front Suspension Lower Arm No.1 Rh)
9017916026	90179-16026	New Genuine Part
9034506014	90345-06014	Plug (For Ball Joint)
9462111600	94621-11600	Washer(For Rear Spring U Bolt)
9538104030	95381-04030	PIN
9615104000	96151-04000	Ring, Snap(For Hydraulic Motor Vane Pump Drive Shaft)
9645900609	96459-00609	Fitting, Grease

OEM	Part name	Category
43032-65010	Stopper Sub-Assy, Steering Knuckle, Rh	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
43033-65010	Stopper Sub-Assy, Steering Knuckle, Lh	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
48601-65010	Arm Sub-Assy, Front Suspension, Upper Rh	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
48602-65010	Arm Sub-Assy, Front Suspension, Upper Lh	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
48610-69035	Arm Assy, Front Suspension Upper, Rh	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
48612-65010	Arm, Upr No.2	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
48620-65010	Arm Sub-Assy, Front Suspension, Lower No.1 Rh	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
48630-69035	Arm Assy, Front Suspension, Upper Lh	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
48631-65010	Shaft, Front Upper Arm, No.2 Rh	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
48632-65010	Bush, Front Suspension Upper Arm, Rh	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
48632-65020	Bush, Front Suspension Upper Arm, Rh	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
48633-36010	Seal, Front Suspension Upper Arm Pivot Dust, Rh	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
48634-65010	Shaft, Front Upper Arm, No.2 Lh	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
48640-65010	Arm Sub-Assy, Front Suspension, Lower No.1 Lh	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
48655-65010	Bush, Lower Arm, No.2	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
48718-65010	Shaft, Front Suspension Lower Arm, No.1	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
48719-65010	Shaft, Front Suspension Lower Arm, No.2	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
48730-65010	Arm Assy, Rear Suspension, No.2 Rh	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
48809-36020	Bracket, Front Stabilizer, No.1 Rh	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
48809-36030	Bracket, Front Stabilizer, No.1 Lh	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
90101-16030	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
90101-16032	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
90170-16022	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
90171-20001	Nut, Castle (For Front Lower Ball Joint Rh)	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
90171-22001	Nut(For Front Suspension Lower Arm No.1 Rh)	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
90179-16026	New Genuine Part	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
90345-06014	Plug (For Ball Joint)	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
94621-11600	Washer(For Rear Spring U Bolt)	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
95381-04030	PIN	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
96151-04000	Ring, Snap(For Hydraulic Motor Vane Pump Drive Shaft)	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
96459-00609	Fitting, Grease	Front Axle Arm & Steering Knuckle ([10.1996 - ] (9610- ))
