Search › Model › BXD20

BXD20

Toyota MEGA-CRUISER · 1996 · 5,405 parts · 357 categories

5,405 items

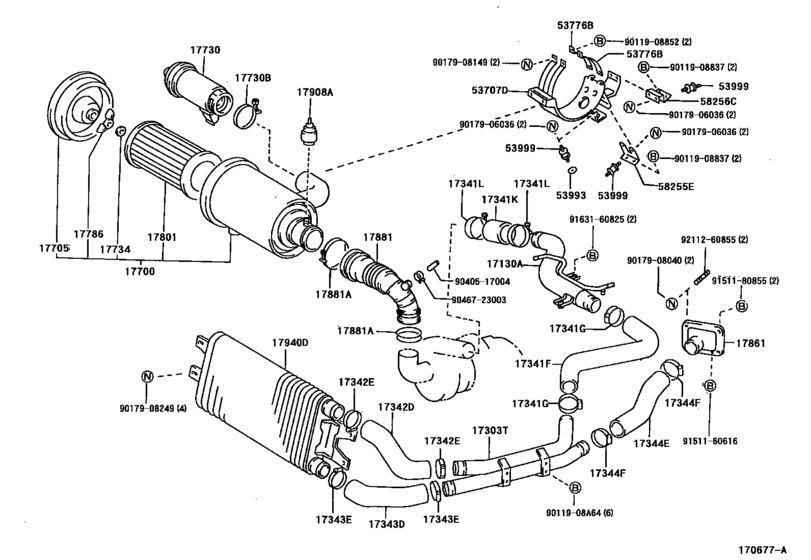

Air Cleaner ([10.1996 - ] (9610- )) 49

#	OEM	Part name
17130	17130-58020	Pipe Assy, Intake
17303	17303-58010	Pipe Sub-Assy, Air
17341	17341-58050	Hose, Air, No.1
17341	17341-58231	Hose, Air, No.1
17341	17341-58230	Hose, Air, No.1
17341	90460-65004	Clamp Or Clip(For Air Hose, No.1)
17341	90460-65002	Clamp Or Clip(For Air Hose, No.1)
17341	17341-58020	Hose, Air, No.1(For Intercooler)
17341	17341-58140	Hose, Air, No.1(For Intercooler)
17342	17342-58030	Hose, Air, No.2
17343	17343-58030	Hose, Air, No.3
17344	17344-58030	Hose, Air, No.4
17700	17700-58400	Cleaner Assy, Air
17705	17705-58280	Cap Sub-Assy, Air Cleaner
17730	17730-58030	Precleaner Assy, Air W/hose
17730	96111-10930	Clamp, Hose(For Precleaner Hose)
17734	17734-58010	Seat, Air Cleaner Cap Spring
17786	17786-58010	Clamp, Air Cleaner
17801	17801-58020	Element Sub-Assy, Air Cleaner Filter
17861	17861-58030	Connector, Intake Air
17881	17881-58320	Hose, Air Cleaner, No.1
17881	96111-10650	Clamp(For Air Cleaner Inlet, No.1)
17881	96111-11090	Clamp(For Air Cleaner Hose, No.1)
17908	17908-58010	Indicator Sub-Assy, Air Cleaner
17940	17940-58030	Intercooler Assy
53707	53707-65010	Bracket Sub-Assy, Cool Air Intake, No.3
53776	53776-65010	Bracket, Cool Air Intake Duct Mount, No.2
53993	53993-65010	Packing, Air Cleaner Inlet Hole
53999	53999-65010	Cushion, Air Cleaner Inlet Bracket
58255	58255-65010	Bracket, Air Cleaner
58256	58256-65010	Bracket, Air Cleaner, Rear
9011908	90119-08A64	New Genuine Part
9011908837	90119-08837	New Genuine Part
9011908852	90119-08852	New Genuine Part
9011908852	90119-08C56	BOLT WWASHER
9017906036	90179-06036	Nut, Cap(For Cylinder Head Cover)
9017906036	90179-06299	Nut, Wire Adjusting, No.1
9017908040	90179-08040	Nut, Cap(For Cylinder Head Cover)
9017908149	90179-08149	New Genuine Part
9017908249	90179-08249	New Genuine Part
9040517004	90405-17004	New Genuine Part
9046723003	90467-23003	Clip(For Ventilation Hose)
9046723003	96134-42300	Clip Or Clamp(For Ventilation Hose)
9151160616	91511-60616	BOLTFLANGE
9151160616	91511-B0616	BOLT, FLANGE
9151180855	91511-80855	New Genuine Part
9151180855	91511-C0855	New Genuine Part
9163160825	91631-60825	BOLT WWASHER
9211260855	92112-60855	New Genuine Part

OEM	Part name	Category
17130-58020	Pipe Assy, Intake	Air Cleaner ([10.1996 - ] (9610- ))
17303-58010	Pipe Sub-Assy, Air	Air Cleaner ([10.1996 - ] (9610- ))
17341-58020	Hose, Air, No.1(For Intercooler)	Air Cleaner ([10.1996 - ] (9610- ))
17341-58050	Hose, Air, No.1	Air Cleaner ([10.1996 - ] (9610- ))
17341-58140	Hose, Air, No.1(For Intercooler)	Air Cleaner ([10.1996 - ] (9610- ))
17341-58230	Hose, Air, No.1	Air Cleaner ([10.1996 - ] (9610- ))
17341-58231	Hose, Air, No.1	Air Cleaner ([10.1996 - ] (9610- ))
17342-58030	Hose, Air, No.2	Air Cleaner ([10.1996 - ] (9610- ))
17343-58030	Hose, Air, No.3	Air Cleaner ([10.1996 - ] (9610- ))
17344-58030	Hose, Air, No.4	Air Cleaner ([10.1996 - ] (9610- ))
17700-58400	Cleaner Assy, Air	Air Cleaner ([10.1996 - ] (9610- ))
17705-58280	Cap Sub-Assy, Air Cleaner	Air Cleaner ([10.1996 - ] (9610- ))
17730-58030	Precleaner Assy, Air W/hose	Air Cleaner ([10.1996 - ] (9610- ))
17734-58010	Seat, Air Cleaner Cap Spring	Air Cleaner ([10.1996 - ] (9610- ))
17786-58010	Clamp, Air Cleaner	Air Cleaner ([10.1996 - ] (9610- ))
17801-58020	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([10.1996 - ] (9610- ))
17861-58030	Connector, Intake Air	Air Cleaner ([10.1996 - ] (9610- ))
17881-58320	Hose, Air Cleaner, No.1	Air Cleaner ([10.1996 - ] (9610- ))
17908-58010	Indicator Sub-Assy, Air Cleaner	Air Cleaner ([10.1996 - ] (9610- ))
17940-58030	Intercooler Assy	Air Cleaner ([10.1996 - ] (9610- ))
53707-65010	Bracket Sub-Assy, Cool Air Intake, No.3	Air Cleaner ([10.1996 - ] (9610- ))
53776-65010	Bracket, Cool Air Intake Duct Mount, No.2	Air Cleaner ([10.1996 - ] (9610- ))
53993-65010	Packing, Air Cleaner Inlet Hole	Air Cleaner ([10.1996 - ] (9610- ))
53999-65010	Cushion, Air Cleaner Inlet Bracket	Air Cleaner ([10.1996 - ] (9610- ))
58255-65010	Bracket, Air Cleaner	Air Cleaner ([10.1996 - ] (9610- ))
58256-65010	Bracket, Air Cleaner, Rear	Air Cleaner ([10.1996 - ] (9610- ))
90119-08837	New Genuine Part	Air Cleaner ([10.1996 - ] (9610- ))
90119-08852	New Genuine Part	Air Cleaner ([10.1996 - ] (9610- ))
90119-08A64	New Genuine Part	Air Cleaner ([10.1996 - ] (9610- ))
90119-08C56	BOLT WWASHER	Air Cleaner ([10.1996 - ] (9610- ))
90179-06036	Nut, Cap(For Cylinder Head Cover)	Air Cleaner ([10.1996 - ] (9610- ))
90179-06299	Nut, Wire Adjusting, No.1	Air Cleaner ([10.1996 - ] (9610- ))
90179-08040	Nut, Cap(For Cylinder Head Cover)	Air Cleaner ([10.1996 - ] (9610- ))
90179-08149	New Genuine Part	Air Cleaner ([10.1996 - ] (9610- ))
90179-08249	New Genuine Part	Air Cleaner ([10.1996 - ] (9610- ))
90405-17004	New Genuine Part	Air Cleaner ([10.1996 - ] (9610- ))
90460-65002	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([10.1996 - ] (9610- ))
90460-65004	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([10.1996 - ] (9610- ))
90467-23003	Clip(For Ventilation Hose)	Air Cleaner ([10.1996 - ] (9610- ))
91511-60616	BOLTFLANGE	Air Cleaner ([10.1996 - ] (9610- ))
91511-80855	New Genuine Part	Air Cleaner ([10.1996 - ] (9610- ))
91511-B0616	BOLT, FLANGE	Air Cleaner ([10.1996 - ] (9610- ))
91511-C0855	New Genuine Part	Air Cleaner ([10.1996 - ] (9610- ))
91631-60825	BOLT WWASHER	Air Cleaner ([10.1996 - ] (9610- ))
92112-60855	New Genuine Part	Air Cleaner ([10.1996 - ] (9610- ))
96111-10650	Clamp(For Air Cleaner Inlet, No.1)	Air Cleaner ([10.1996 - ] (9610- ))
96111-10930	Clamp, Hose(For Precleaner Hose)	Air Cleaner ([10.1996 - ] (9610- ))
96111-11090	Clamp(For Air Cleaner Hose, No.1)	Air Cleaner ([10.1996 - ] (9610- ))
96134-42300	Clip Or Clamp(For Ventilation Hose)	Air Cleaner ([10.1996 - ] (9610- ))
