BU98

Toyota DYNA-TOYOACE · 1985 · 3,760 parts · 172 categories

3,760 items

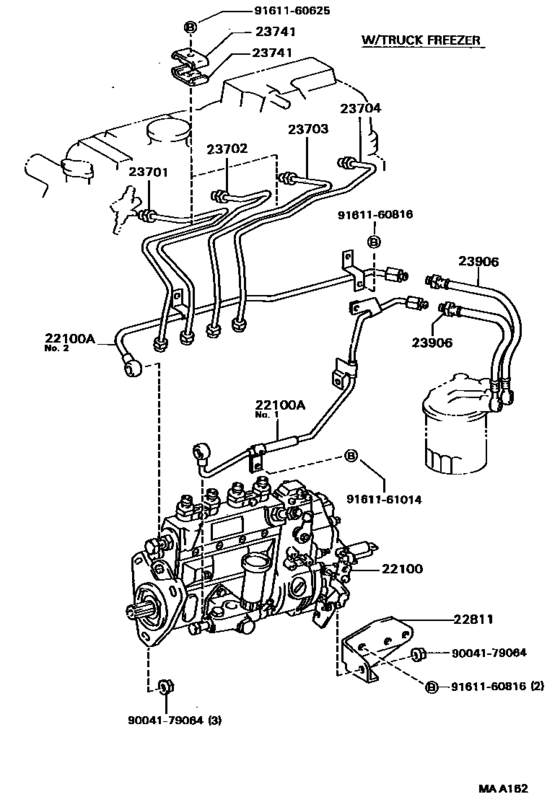

Injection Pump Assembly ([08.1987 - ] (8708- )13B#..BU85,9#..(T2,T3).. (8708- )11B,13BT..BU61,85,95..WT..IV3 ; (8708 - )13B..BU93,98..IV3;13B#..BU85, 90..T2,T3..5F..IV 3 ; (8708- )13B..BU62..TR..5F..WT..20T..IV3) 17

#	OEM	Part name
22100	22100-58231	Pump Assy, Injection Or Supply
22100	22100-58440	Pump Assy, Injection Or Supply
22100	23801-56060	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22100	23802-56040	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
22811	22811-56040	Stay, Injection Pump, No.1
23701	23701-56060	Pipe Sub-Assy, Injection, No.1
23702	23702-56060	Pipe Sub-Assy, Injection, No.2
23703	23703-56060	Pipe Sub-Assy, Injection, No.3
23704	23704-56060	Pipe Sub-Assy, Injection, No.4
23741	23741-56010	Clamp, Injection Pipe, No.1
9004179064	90041-79064	New Genuine Part
9161160625	91611-60625	Bolt, W/washer (For Parking Cove & Case)
9161160625	91611-B0625	Bolt (For Automatic Transmission Oil Pan)
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9161161014	91611-61014	New Genuine Part
9161161014	91612-B1014	BOLT WWASHER

OEM	Part name	Category
22100-58231	Pump Assy, Injection Or Supply	Injection Pump Assembly ([08.1987 - ] (8708- )13B#..BU85,9#..(T2,T3).. (8708- )11B,13BT..BU61,85,95..WT..IV3 ; (8708 - )13B..BU93,98..IV3;13B#..BU85, 90..T2,T3..5F..IV 3 ; (8708- )13B..BU62..TR..5F..WT..20T..IV3)
22100-58440	Pump Assy, Injection Or Supply	Injection Pump Assembly ([08.1987 - ] (8708- )13B#..BU85,9#..(T2,T3).. (8708- )11B,13BT..BU61,85,95..WT..IV3 ; (8708 - )13B..BU93,98..IV3;13B#..BU85, 90..T2,T3..5F..IV 3 ; (8708- )13B..BU62..TR..5F..WT..20T..IV3)
22811-56040	Stay, Injection Pump, No.1	Injection Pump Assembly ([08.1987 - ] (8708- )13B#..BU85,9#..(T2,T3).. (8708- )11B,13BT..BU61,85,95..WT..IV3 ; (8708 - )13B..BU93,98..IV3;13B#..BU85, 90..T2,T3..5F..IV 3 ; (8708- )13B..BU62..TR..5F..WT..20T..IV3)
23701-56060	Pipe Sub-Assy, Injection, No.1	Injection Pump Assembly ([08.1987 - ] (8708- )13B#..BU85,9#..(T2,T3).. (8708- )11B,13BT..BU61,85,95..WT..IV3 ; (8708 - )13B..BU93,98..IV3;13B#..BU85, 90..T2,T3..5F..IV 3 ; (8708- )13B..BU62..TR..5F..WT..20T..IV3)
23702-56060	Pipe Sub-Assy, Injection, No.2	Injection Pump Assembly ([08.1987 - ] (8708- )13B#..BU85,9#..(T2,T3).. (8708- )11B,13BT..BU61,85,95..WT..IV3 ; (8708 - )13B..BU93,98..IV3;13B#..BU85, 90..T2,T3..5F..IV 3 ; (8708- )13B..BU62..TR..5F..WT..20T..IV3)
23703-56060	Pipe Sub-Assy, Injection, No.3	Injection Pump Assembly ([08.1987 - ] (8708- )13B#..BU85,9#..(T2,T3).. (8708- )11B,13BT..BU61,85,95..WT..IV3 ; (8708 - )13B..BU93,98..IV3;13B#..BU85, 90..T2,T3..5F..IV 3 ; (8708- )13B..BU62..TR..5F..WT..20T..IV3)
23704-56060	Pipe Sub-Assy, Injection, No.4	Injection Pump Assembly ([08.1987 - ] (8708- )13B#..BU85,9#..(T2,T3).. (8708- )11B,13BT..BU61,85,95..WT..IV3 ; (8708 - )13B..BU93,98..IV3;13B#..BU85, 90..T2,T3..5F..IV 3 ; (8708- )13B..BU62..TR..5F..WT..20T..IV3)
23741-56010	Clamp, Injection Pipe, No.1	Injection Pump Assembly ([08.1987 - ] (8708- )13B#..BU85,9#..(T2,T3).. (8708- )11B,13BT..BU61,85,95..WT..IV3 ; (8708 - )13B..BU93,98..IV3;13B#..BU85, 90..T2,T3..5F..IV 3 ; (8708- )13B..BU62..TR..5F..WT..20T..IV3)
23801-56060	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Injection Pump Assembly ([08.1987 - ] (8708- )13B#..BU85,9#..(T2,T3).. (8708- )11B,13BT..BU61,85,95..WT..IV3 ; (8708 - )13B..BU93,98..IV3;13B#..BU85, 90..T2,T3..5F..IV 3 ; (8708- )13B..BU62..TR..5F..WT..20T..IV3)
23802-56040	Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)	Injection Pump Assembly ([08.1987 - ] (8708- )13B#..BU85,9#..(T2,T3).. (8708- )11B,13BT..BU61,85,95..WT..IV3 ; (8708 - )13B..BU93,98..IV3;13B#..BU85, 90..T2,T3..5F..IV 3 ; (8708- )13B..BU62..TR..5F..WT..20T..IV3)
90041-79064	New Genuine Part	Injection Pump Assembly ([08.1987 - ] (8708- )13B#..BU85,9#..(T2,T3).. (8708- )11B,13BT..BU61,85,95..WT..IV3 ; (8708 - )13B..BU93,98..IV3;13B#..BU85, 90..T2,T3..5F..IV 3 ; (8708- )13B..BU62..TR..5F..WT..20T..IV3)
91611-60625	Bolt, W/washer (For Parking Cove & Case)	Injection Pump Assembly ([08.1987 - ] (8708- )13B#..BU85,9#..(T2,T3).. (8708- )11B,13BT..BU61,85,95..WT..IV3 ; (8708 - )13B..BU93,98..IV3;13B#..BU85, 90..T2,T3..5F..IV 3 ; (8708- )13B..BU62..TR..5F..WT..20T..IV3)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Injection Pump Assembly ([08.1987 - ] (8708- )13B#..BU85,9#..(T2,T3).. (8708- )11B,13BT..BU61,85,95..WT..IV3 ; (8708 - )13B..BU93,98..IV3;13B#..BU85, 90..T2,T3..5F..IV 3 ; (8708- )13B..BU62..TR..5F..WT..20T..IV3)
91611-61014	New Genuine Part	Injection Pump Assembly ([08.1987 - ] (8708- )13B#..BU85,9#..(T2,T3).. (8708- )11B,13BT..BU61,85,95..WT..IV3 ; (8708 - )13B..BU93,98..IV3;13B#..BU85, 90..T2,T3..5F..IV 3 ; (8708- )13B..BU62..TR..5F..WT..20T..IV3)
91611-B0625	Bolt (For Automatic Transmission Oil Pan)	Injection Pump Assembly ([08.1987 - ] (8708- )13B#..BU85,9#..(T2,T3).. (8708- )11B,13BT..BU61,85,95..WT..IV3 ; (8708 - )13B..BU93,98..IV3;13B#..BU85, 90..T2,T3..5F..IV 3 ; (8708- )13B..BU62..TR..5F..WT..20T..IV3)
91611-B0816	Bolt	Injection Pump Assembly ([08.1987 - ] (8708- )13B#..BU85,9#..(T2,T3).. (8708- )11B,13BT..BU61,85,95..WT..IV3 ; (8708 - )13B..BU93,98..IV3;13B#..BU85, 90..T2,T3..5F..IV 3 ; (8708- )13B..BU62..TR..5F..WT..20T..IV3)
91612-B1014	BOLT WWASHER	Injection Pump Assembly ([08.1987 - ] (8708- )13B#..BU85,9#..(T2,T3).. (8708- )11B,13BT..BU61,85,95..WT..IV3 ; (8708 - )13B..BU93,98..IV3;13B#..BU85, 90..T2,T3..5F..IV 3 ; (8708- )13B..BU62..TR..5F..WT..20T..IV3)
