Search › Model › BU96

BU96

Toyota DYNA-TOYOACE · 1988 · 4,677 parts · 213 categories

← Back to categories

4,677 items

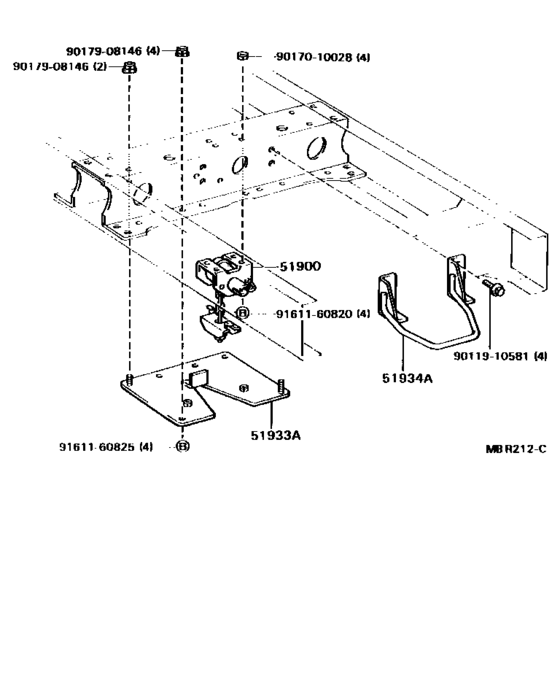

Spare Wheel Carrier ([08.1988 - ] (8808- )BU95,96..IV3 ; (8808- )BU88,90,91. .T4 ; (8811- )BU87..5F..275..IV3 ; (8910- )BU7 8,94..T4) 12

#	OEM	Part name
51900	51900-36050	Carrier Assy, Spare Wheel
51933	51903-36050	Stopper, Spare Wheel, No.1
51934	51904-36040	Stopper, Spare Wheel, No.2
9011910581	90119-10581	Bolt, Fuel Tank
9011910581	91645-C1032	Bolt, Fuel Tank
9017010028	90170-10028	New Genuine Part
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9161160820	91611-60820	Bolt(For Transaxle & Engine Setting)
9161160820	91611-G0820	Bolt
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
9161160825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)

OEM	Part name	Category
51900-36050	Carrier Assy, Spare Wheel	Spare Wheel Carrier ([08.1988 - ] (8808- )BU95,96..IV3 ; (8808- )BU88,90,91. .T4 ; (8811- )BU87..5F..275..IV3 ; (8910- )BU7 8,94..T4)
51903-36050	Stopper, Spare Wheel, No.1	Spare Wheel Carrier ([08.1988 - ] (8808- )BU95,96..IV3 ; (8808- )BU88,90,91. .T4 ; (8811- )BU87..5F..275..IV3 ; (8910- )BU7 8,94..T4)
51904-36040	Stopper, Spare Wheel, No.2	Spare Wheel Carrier ([08.1988 - ] (8808- )BU95,96..IV3 ; (8808- )BU88,90,91. .T4 ; (8811- )BU87..5F..275..IV3 ; (8910- )BU7 8,94..T4)
90119-10581	Bolt, Fuel Tank	Spare Wheel Carrier ([08.1988 - ] (8808- )BU95,96..IV3 ; (8808- )BU88,90,91. .T4 ; (8811- )BU87..5F..275..IV3 ; (8910- )BU7 8,94..T4)
90170-10028	New Genuine Part	Spare Wheel Carrier ([08.1988 - ] (8808- )BU95,96..IV3 ; (8808- )BU88,90,91. .T4 ; (8811- )BU87..5F..275..IV3 ; (8910- )BU7 8,94..T4)
90179-08146	Nut	Spare Wheel Carrier ([08.1988 - ] (8808- )BU95,96..IV3 ; (8808- )BU88,90,91. .T4 ; (8811- )BU87..5F..275..IV3 ; (8910- )BU7 8,94..T4)
90179-08204	Nut	Spare Wheel Carrier ([08.1988 - ] (8808- )BU95,96..IV3 ; (8808- )BU88,90,91. .T4 ; (8811- )BU87..5F..275..IV3 ; (8910- )BU7 8,94..T4)
91611-60820	Bolt(For Transaxle & Engine Setting)	Spare Wheel Carrier ([08.1988 - ] (8808- )BU95,96..IV3 ; (8808- )BU88,90,91. .T4 ; (8811- )BU87..5F..275..IV3 ; (8910- )BU7 8,94..T4)
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Spare Wheel Carrier ([08.1988 - ] (8808- )BU95,96..IV3 ; (8808- )BU88,90,91. .T4 ; (8811- )BU87..5F..275..IV3 ; (8910- )BU7 8,94..T4)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Spare Wheel Carrier ([08.1988 - ] (8808- )BU95,96..IV3 ; (8808- )BU88,90,91. .T4 ; (8811- )BU87..5F..275..IV3 ; (8910- )BU7 8,94..T4)
91611-G0820	Bolt	Spare Wheel Carrier ([08.1988 - ] (8808- )BU95,96..IV3 ; (8808- )BU88,90,91. .T4 ; (8811- )BU87..5F..275..IV3 ; (8910- )BU7 8,94..T4)
91645-C1032	Bolt, Fuel Tank	Spare Wheel Carrier ([08.1988 - ] (8808- )BU95,96..IV3 ; (8808- )BU88,90,91. .T4 ; (8811- )BU87..5F..275..IV3 ; (8910- )BU7 8,94..T4)

Source: Public OEM parts-catalog data
Variants: 1 / 10
Category: 213
Collected: 2026-08-03
