| 04494-36070 |
Shoe Kit, Front Brake |

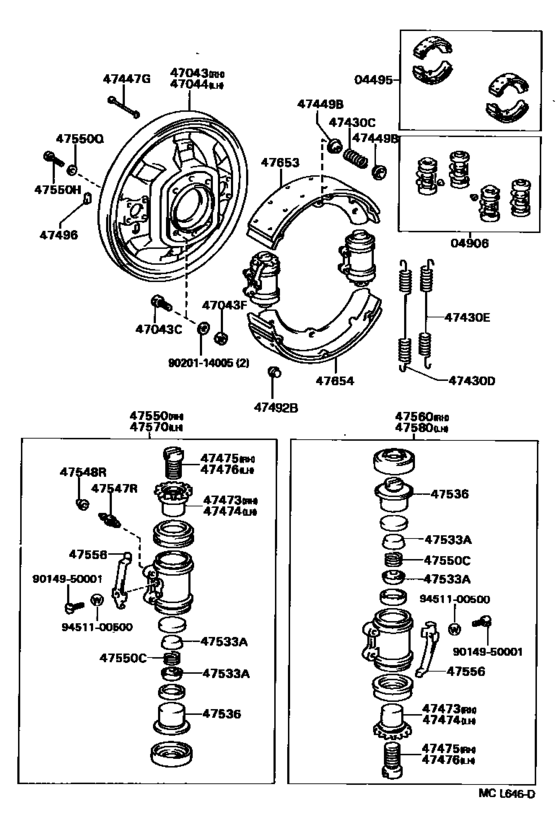

Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 04494-36170 |
Shoe Kit, Front Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 04496-36070 |
Shoe Kit, Front Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 04906-36060 |
Cup Kit, Rear Wheel Cylinder |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 31478-30010 |
Bleeder Plug Cap |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 47043-36080 |
Plate Sub-Assy, Brake Backing, Rear Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 47044-36040 |
Plate Sub-Assy, Brake Backing, Rear Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 47447-60010 |
Pin, Shoe Hold Down Spring(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 47449-30020 |
Cup, Shoe Hold Down Spring(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 47491-36010 |
Plug, Hole(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 47491-36020 |
Plug, Hole(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 47531-36032 |
Piston, Wheel Brake Cylinder(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 47533-25010 |
Seat, Wheel Cylinder Piston Spring(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 47547-12010 |
Plug, Bleeder(For Release Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 47550-36070 |
Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 47551-36023 |
Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 47552-36023 |
Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 47553-36030 |
Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 47554-36030 |
Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 47555-36020 |
Spring, Adjuster Lock(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 47560-36070 |
Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 47570-36070 |
Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 47580-36070 |
Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 47651-36090 |
Lining, Front Brake Shoe(For Front Or Upper) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 90101-10127 |
Bolt(For Front Wheel Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 90114-14004 |
Bolt(For Backing Plate To Rear Axle Housing Setting) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 90149-50001 |
New Genuine Part |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 90170-14002 |
Nut(For Backing Plate To Steering Knuckle Setting) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 90201-10287 |
Washer(For Front Wheel Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 90201-14005 |
Washer, Plate |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 90501-10759 |
Spring, Compression(For Front Wheel Brake Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 90501-20012 |
Spring(For Front Brake Shoe Hold Down) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 90507-29006 |
Spring, Tension(For Front Brake Shoe Return) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
| 94511-00500 |
Washer, Cover Set, No.2 |
Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1988 - ] (8808- )BU90,91,95,96) |
