BU96

Toyota DYNA-TOYOACE · 1988 · 4,677 parts · 213 categories
BU96 ×

← Back to categories

4,677 items

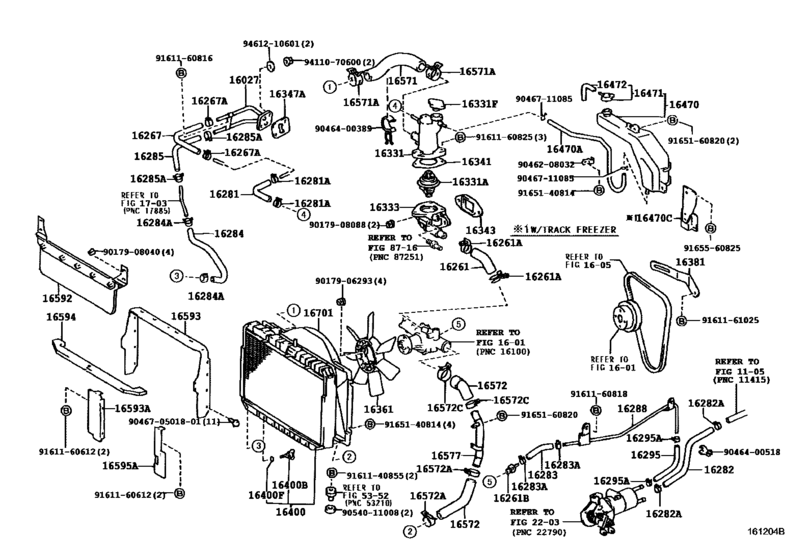

Radiator & Water Outlet ([10.1989 - ] (8910- )14BT) 95
#OEMPart name
16027 16027-58010 Pipe Sub-Assy, Turbo Water, No.1
16261 16261-56012 Hose, Water By-Pass
16261 90467-28004 Clamp Or Clip, Hose(For Water By-Pass Hose)
16261 90467-28007 Clip Or Clamp(For Ventilation Hose)
16261 90404-52028 Union(For Water By-Pass Hose)
16267 16267-58012 Hose, Water By-Pass, No.3
16267 90467-15022 Clip Or Clamp(For Ventilation Hose)
16267 96132-31000 Clip(For Ventilation Tube)
16267 96132-41500 Clip(For Ventilation Tube)
16281 16281-58011 Hose, Water By-Pass, No.2
16282 16282-56010 Hose, Water By-Pass, No.5
16282 90467-15004 Clip(For Ventilation Hose No.2)
16283 16283-56010 Hose, Water By-Pass, No.6
16284 16284-58010 Hose, Turbo Water, No.1
16284 16284-58030 Hose, Turbo Water, No.1
16284 16284-58032 Hose, Turbo Water, No.1
16285 16285-58010 Hose, Turbo Water, No.2
16288 16288-58010 Pipe, Water By-Pass, No.4
16295 16295-56010 Hose, Water By-Pass, No.7
16331 16331-58050 Outlet, Water
16331 16331-58061 Outlet, Water
16331 90916-03080 Thermostat
16331 90916-03103 Thermostat
16331 16401-71010 Cap Sub-Assy(For Water Outlet)
16331 16401-54750 Radiator Cap
16333 16333-56072 Housing, Water Outlet
16333 16333-58080 Housing, Water Outlet
16333 90341-12006 Plug(For Water Outlet)
16333 90430-12221 Gasket
16341 16341-56030 Gasket, Water Outlet
16343 16343-56022 Gasket, Water Outlet Housing
16343 16343-56023 Gasket, Water Outlet Housing
16347 16347-58010 Gasket, Water By-Pass
16361 16361-56070 Fan
16381 16381-56060 Bar, Fan Belt Adjusting
16381 16381-58120 Bar, Fan Belt Adjusting
16400 16400-58340 Radiator Assy
16400 16400-58341 Radiator Assy
16400 16400-58342 Radiator Assy
16400 16417-24200 Plug, Radiator Drain Cock
16400 16418-24200 Packing(For Radiator Drain Cock)
16470 16470-58010 Tank Assy, Radiator Reserve
16470 16470-58020 Tank Assy, Radiator Reserve
16470 90445-12146 Hose Or Pipe(For Radiator Reserve Tank)
16471 16405-56070 Cap Sub-Assy, Reserve Tank
16472 16472-58010 Hose, Breather
16571 16571-58030 Hose, Radiator, Inlet
16571 90467-42001 Clamp Or Clip, Hose(For Radiator Inlet)
16571 90466-41008 Clamp, Hose(For Radiator Hose)
16572 16572-56090 Hose, Radiator, Outlet
16572 16572-56091 Hose, Radiator, Outlet
16572 96111-10490 Clamp Or Clip, Sub Radiator Hose
16572 16573-58020 Hose, Radiator, Outlet
16572 96111-10510 Clamp Or Clip, Sub Radiator Hose
16572 96111-10570 Clamp Or Clip, Hose(For Radiator Outlet No.1)
16577 16577-56050 Pipe, Radiator, No.7
16592 16592-58020 Guide, Radiator Air, No.3
16593 16593-58050 Guide, Radiator Air, No.1
16593 16593-58060 Guide, Radiator Air, No.1 Rh
16594 16594-58030 Guide, Radiator Air, No.2
16595 16595-58040 Guide, Radiator Air, No.1 Lh
16701 16701-58090 Shroud Sub-Assy, Fan
16701 16701-58091 Shroud Sub-Assy, Fan
16701 16701-58092 Shroud Sub-Assy, Fan
9017906293 90179-06293 NUT
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9017908088 90179-08088 NUT
9017908088 94185-60800 NUT
9046208032 90462-08032 New Genuine Part
9046400389 90464-00389 New Genuine Part
9046400518 90464-00518 Clamp Or Clip(For Water By-Pass Hose)
9046711085 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
9054011008 90540-11008 Insulator, Radiator Mounting
9161140855 91611-40855 Bolt(For Rocker Support Set)
9161140855 91611-60855 Bolt(For Rocker Support Set)
9161160612 91611-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612 91611-G0612 Bolt
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9161160818 91611-60818 Bolt(For Oil Receiver Pipe)
9161160818 90119-08830 Bolt(For Oil Receiver Pipe)
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9161161025 91611-61025 Bolt(For Transaxle & Engine Setting)
9161161025 91612-61025 Bolt (For Control Shaft Cover)
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
9165560825 91655-60825 Bolt, Radiator Side Support Plate
9411070600 94110-70600 New Genuine Part
9411070600 94130-00602 New Genuine Part
9461210601 94612-10601 New Genuine Part
904670501801 90467-05018-01 Clip, Slide Door Trim Carpet
904670501801 90467-05018-22 New Genuine Part
