Search › Model › BU96

BU96

Toyota DYNA-TOYOACE · 1988 · 4,677 parts · 213 categories

4,677 items

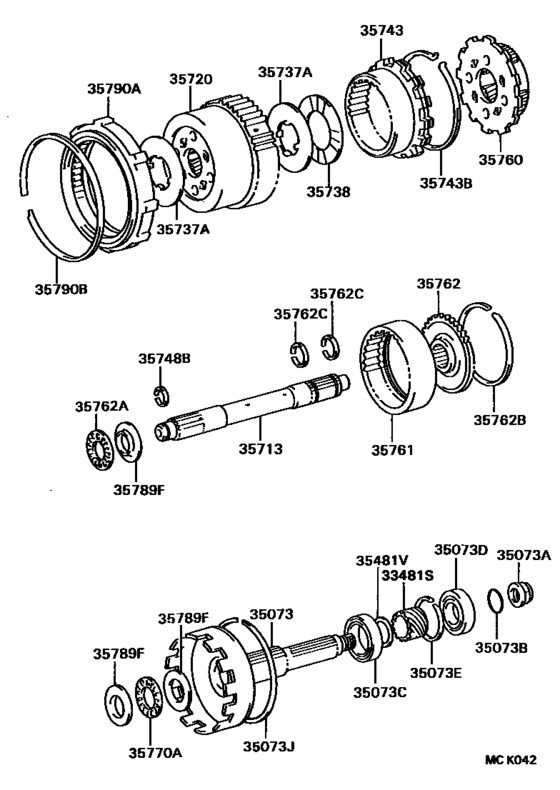

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- )) 29

#	OEM	Part name
33481	33481-36130	Gear, Speedometer Drive (Atm)
33481	33481-36131	Gear, Speedometer Drive (Atm)
35073	35073-36020	Shaft Sub-Assy, Output
35073	90179-22008	Nut (For Manual Transmission Output Shaft Rear Set)
35073	90301-29002	Ring, O(For Manual Transmisson Output Shaft Rear Set Nut)
35073	90363-45008	Bearing, Radial Ball (For Output Shaft Front)
35073	90363-35019	Bearing, Radial Ball (For Output Shaft Rear)
35073	90521-78001	Ring, Hole Snap (For Output Shaft Rear Bearing)
35073	90521-99042	Ring, Hole Snap (For Output Shaft)
35481	90560-35012	Spacer, No.1 (For Output Shaft Rear Bearing)
35713	35713-36011	Shaft, Intermediate
35720	35720-60010	Gear Assy, Front Planetary
35737	35737-36010	Washer, Planetary Carrier Thrust, No.1
35737	35737-60011	Washer, Planetary Carrier Thrust, No.1
35738	35738-60010	Washer, Planetary Carrier Thrust, No.2
35743	35743-60010	Gear, Front Planetary Ring
35743	90521-99018	Ring, Hole Snap (For Direct Clutch Flange)
35748	35748-36010	Ring, Intermediate Shaft Oil Seal
35760	35760-60010	Gear Assy, Rear Planetary
35761	35761-60010	Gear, Rear Planetary Ring
35762	35762-60010	Flange, Rear Planetary Ring Gear
35762	90374-34001	Bearing, Thrust(For Overdrive Planetary Ring Gear Flange)
35762	90521-99041	Ring, Hole Snap (For Output Shaft)
35762	90520-22013	Ring, Shaft Snap (For Rear Planetary Ring Gear)
35789	35789-36090	Race, Thrust Bearing(For Front Clutch Hub Front)
35790	35790-36010	Clutch Assy, 1 Way
35790	35790-36020	Clutch Assy, 1 Way
35790	90521-99021	Ring, Hole Snap (For Overdrive Brake Return Spring)
35790	90521-99109	Ring, Hole Snap (For Overdrive Brake Return Spring)

OEM	Part name	Category
33481-36130	Gear, Speedometer Drive (Atm)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
33481-36131	Gear, Speedometer Drive (Atm)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
35073-36020	Shaft Sub-Assy, Output	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
35713-36011	Shaft, Intermediate	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
35720-60010	Gear Assy, Front Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
35737-36010	Washer, Planetary Carrier Thrust, No.1	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
35737-60011	Washer, Planetary Carrier Thrust, No.1	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
35738-60010	Washer, Planetary Carrier Thrust, No.2	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
35743-60010	Gear, Front Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
35748-36010	Ring, Intermediate Shaft Oil Seal	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
35760-60010	Gear Assy, Rear Planetary	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
35761-60010	Gear, Rear Planetary Ring	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
35762-60010	Flange, Rear Planetary Ring Gear	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
35789-36090	Race, Thrust Bearing(For Front Clutch Hub Front)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
35790-36010	Clutch Assy, 1 Way	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
35790-36020	Clutch Assy, 1 Way	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
90179-22008	Nut (For Manual Transmission Output Shaft Rear Set)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
90301-29002	Ring, O(For Manual Transmisson Output Shaft Rear Set Nut)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
90363-35019	Bearing, Radial Ball (For Output Shaft Rear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
90363-45008	Bearing, Radial Ball (For Output Shaft Front)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
90374-34001	Bearing, Thrust(For Overdrive Planetary Ring Gear Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
90520-22013	Ring, Shaft Snap (For Rear Planetary Ring Gear)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
90521-78001	Ring, Hole Snap (For Output Shaft Rear Bearing)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
90521-99018	Ring, Hole Snap (For Direct Clutch Flange)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
90521-99021	Ring, Hole Snap (For Overdrive Brake Return Spring)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
90521-99041	Ring, Hole Snap (For Output Shaft)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
90521-99042	Ring, Hole Snap (For Output Shaft)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
90521-99109	Ring, Hole Snap (For Overdrive Brake Return Spring)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
90560-35012	Spacer, No.1 (For Output Shaft Rear Bearing)	Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1988 - ] (8808- ))
