BU89

Toyota DYNA-200-TOYOACE-G25 · 1992 · 2,935 parts · 133 categories
BU89 ×

← Back to categories

2,935 items

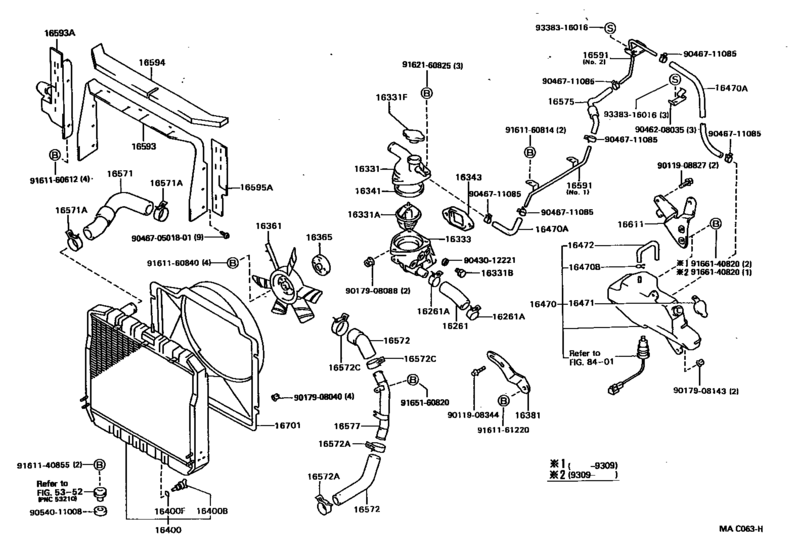

Radiator & Water Outlet ([10.1992 - ] (8808-9210)11B..BU84 ; (9210- )3B..BU89) 69
#OEMPart name
16261 16261-56012 Hose, Water By-Pass
16261 90467-28004 Clamp Or Clip, Hose(For Water By-Pass Hose)
16261 90467-28007 Clip Or Clamp(For Ventilation Hose)
16331 16331-56040 Outlet, Water
16331 90916-03077 Thermostat
16331 90916-03102 Thermostat
16331 90341-12006 Plug(For Water Outlet)
16331 16401-71010 Cap Sub-Assy(For Water Outlet)
16331 16401-54750 Radiator Cap
16333 16333-56072 Housing, Water Outlet
16333 16333-58080 Housing, Water Outlet
16333 90430-12221 Gasket
16341 16341-56030 Gasket, Water Outlet
16343 16343-56022 Gasket, Water Outlet Housing
16343 16343-56023 Gasket, Water Outlet Housing
16361 16361-56070 Fan
16381 16381-56070 Bar, Fan Belt Adjusting
16381 16381-58110 Bar, Fan Belt Adjusting
16400 16400-56190 Radiator Assy
16400 16417-24200 Plug, Radiator Drain Cock
16400 16418-24200 Packing(For Radiator Drain Cock)
16470 16470-56121 Tank Assy, Radiator Reserve
16470 90445-12038 Hose Or Pipe(For Radiator Reserve Tank)
16470 90910-05174 Hose Or Pipe(For Radiator Reserve Tank)
16470 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
16471 16405-56052 Cap Sub-Assy, Reserve Tank
16472 85338-56110 Hose, Breather
16571 16571-56060 Hose, Radiator, Inlet
16571 90467-42001 Clamp Or Clip, Hose(For Radiator Inlet)
16571 90466-41008 Clamp, Hose(For Radiator Hose)
16572 16572-56091 Hose, Radiator, Outlet
16572 16573-56050 Hose, Radiator, Outlet
16572 16573-58070 Hose, Radiator, No.3
16572 96111-10510 Clamp Or Clip, Sub Radiator Hose
16572 96111-10490 Clamp Or Clip, Sub Radiator Hose
16572 96111-10570 Clamp Or Clip, Hose(For Radiator Outlet No.1)
16575 16575-56010 Hose Or Pipe(For Radiator Reserve Tank)
16577 16577-56050 Pipe, Radiator, No.7
16591 16591-56040 Pipe, Radiator
16591 16591-56070 Pipe, Radiator
16593 16593-56030 Guide, Radiator Air, No.3
16593 16593-56040 Guide, Radiator Air, No.1
16594 16594-56020 Guide, Radiator Air, No.2
16595 16595-56020 Guide, Radiator Air, No.1 Lh
16611 16611-56050 Bracket(For Radiator Reserve Tank)
16701 16701-56321 Shroud Sub-Assy, Fan
9011908344 90119-08344 New Genuine Part
9011908827 90119-08827 New Genuine Part
9017908040 90179-08040 Nut, Cap(For Cylinder Head Cover)
9017908088 90179-08088 NUT
9017908088 94185-60800 NUT
9017908143 90179-08143 NUT
9046208035 90462-08035 New Genuine Part
9054011008 90540-11008 Insulator, Radiator Mounting
9161140855 91611-40855 Bolt(For Rocker Support Set)
9161140855 91611-60855 Bolt(For Rocker Support Set)
9161160612 91611-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612 91611-G0612 Bolt
9161160814 91611-60814 Bolt
9161160840 91611-60840 BOLT
9161161220 91611-61220 New Genuine Part
9162160825 91621-60825 BOLT
9162160825 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
9166140820 91661-40820 New Genuine Part
9338316016 93383-16016 New Genuine Part
904670501801 90467-05018-01 Clip, Slide Door Trim Carpet
904670501801 90467-05018-22 New Genuine Part
