BU89

Toyota DYNA-200-TOYOACE-G25 · 1992 · 2,935 parts · 133 categories

2,935 items

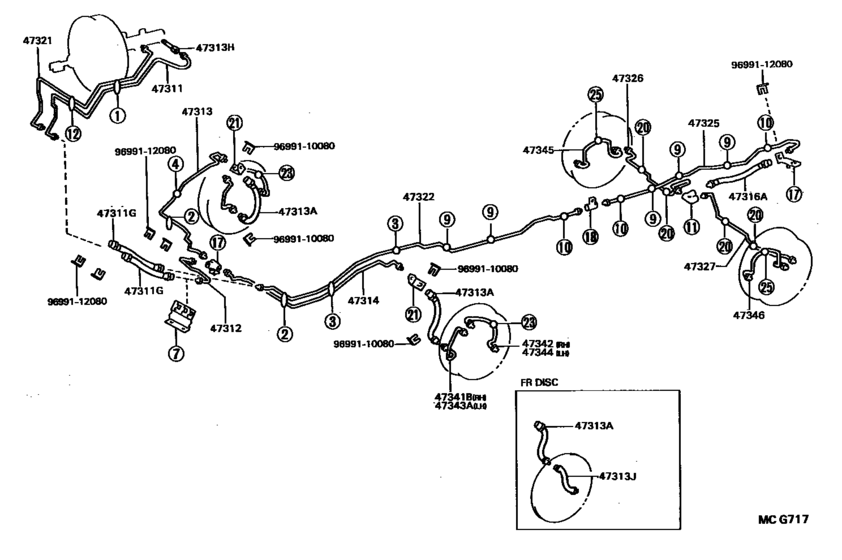

Brake Tube & Clamp ([08.1988 - ] (8808- )BU84,89) 21

#	OEM	Part name
47311	47311-36430	Tube, Front Brake, No.1
47311	96932-33705	Hose, Clutch, No.1
47312	47312-36250	Tube, Front Brake, No.2
47313	47313-36160	Tube, Front Brake, No.3
47313	90947-02470	Hose, Flexible, No.1(For Front)
47313	96940-33305	Hose, Clutch, No.1
47313	90404-12007	Way, No.3(For Front Brake Tube)
47313	90947-02521	Hose, Flexible, No.2(For Front)
47314	47314-36320	Tube, Front Brake, No.4
47316	96912-34005	Hose, Clutch, No.1
47321	47321-36290	Tube, Rear Brake, No.1
47322	47322-36350	Tube, Rear Brake, No.2
47325	47325-36171	Tube, Rear Brake, No.1
47326	47326-36150	Tube, Rear Brake, No.6
47327	47327-36180	Tube, Rear Brake, No.7
47341	47341-36090	Tube, Wheel Cylinder, Front Rh No.1
47342	47342-36030	Tube, Wheel Cylinder, Front Rh No.2
47343	47343-36090	Tube, Wheel Cylinder, Front Lh No.1
47345	47345-36040	Tube, Wheel Cylinder, Rear Rh
9699110080	96991-10080	CLIP
9699112080	96991-12080	Clip

OEM	Part name	Category
47311-36430	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.1988 - ] (8808- )BU84,89)
47312-36250	Tube, Front Brake, No.2	Brake Tube & Clamp ([08.1988 - ] (8808- )BU84,89)
47313-36160	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.1988 - ] (8808- )BU84,89)
47314-36320	Tube, Front Brake, No.4	Brake Tube & Clamp ([08.1988 - ] (8808- )BU84,89)
47321-36290	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.1988 - ] (8808- )BU84,89)
47322-36350	Tube, Rear Brake, No.2	Brake Tube & Clamp ([08.1988 - ] (8808- )BU84,89)
47325-36171	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.1988 - ] (8808- )BU84,89)
47326-36150	Tube, Rear Brake, No.6	Brake Tube & Clamp ([08.1988 - ] (8808- )BU84,89)
47327-36180	Tube, Rear Brake, No.7	Brake Tube & Clamp ([08.1988 - ] (8808- )BU84,89)
47341-36090	Tube, Wheel Cylinder, Front Rh No.1	Brake Tube & Clamp ([08.1988 - ] (8808- )BU84,89)
47342-36030	Tube, Wheel Cylinder, Front Rh No.2	Brake Tube & Clamp ([08.1988 - ] (8808- )BU84,89)
47343-36090	Tube, Wheel Cylinder, Front Lh No.1	Brake Tube & Clamp ([08.1988 - ] (8808- )BU84,89)
47345-36040	Tube, Wheel Cylinder, Rear Rh	Brake Tube & Clamp ([08.1988 - ] (8808- )BU84,89)
90404-12007	Way, No.3(For Front Brake Tube)	Brake Tube & Clamp ([08.1988 - ] (8808- )BU84,89)
90947-02470	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1988 - ] (8808- )BU84,89)
90947-02521	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([08.1988 - ] (8808- )BU84,89)
96912-34005	Hose, Clutch, No.1	Brake Tube & Clamp ([08.1988 - ] (8808- )BU84,89)
96932-33705	Hose, Clutch, No.1	Brake Tube & Clamp ([08.1988 - ] (8808- )BU84,89)
96940-33305	Hose, Clutch, No.1	Brake Tube & Clamp ([08.1988 - ] (8808- )BU84,89)
96991-10080	CLIP	Brake Tube & Clamp ([08.1988 - ] (8808- )BU84,89)
96991-12080	Clip	Brake Tube & Clamp ([08.1988 - ] (8808- )BU84,89)
