BU83

Toyota DYNA-TOYOACE · 1988 · 4,381 parts · 214 categories

4,381 items

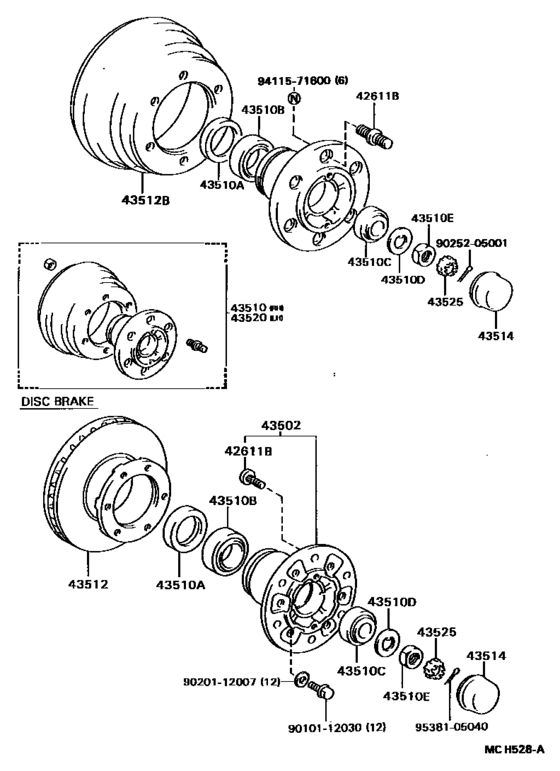

Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87) 25

#	OEM	Part name
42611	90942-02050	Bolt, Hub (For Rear Axle Rh)
42611	90942-02051	Bolt, Hub (For Rear Axle Lh)
42611	90942-02061	Bolt, Hub (For Rear Axle Rh)
42611	90942-02062	Bolt, Hub (For Rear Axle Lh)
43502	43501-25010	Hub Sub-Assy, Front Axle
43502	43501-37020	Hub Sub-Assy, Front Axle, Rh
43502	43502-25030	Hub Sub-Assy, Front Axle
43502	43502-37020	Hub Sub-Assy, Front Axle, Lh
43510	43510-36120	Hub And Brake Drum Assy, Front Axle, Rh
43510	90311-68001	Seal, Oil (For Front Axle Hub Rh)
43510	90368-42045	Bearing (For Front Axle Hub Inner Rh)
43510	90368-28001	Bearing (For Front Axle Hub Outer Rh)
43510	90214-27001	Washer, Claw (For Front Axle Hub Rh)
43510	90170-26001	Nut (For Front Axle Shaft Rh)
43512	43512-25050	Disc, Front
43512	43512-36090	Drum Sub-Assy, Front Brake
43514	43514-36030	Cap, Front Hub Grease
43520	43520-36120	Hub And Brake Drum Assy, Front Axle, Lh
43525	43525-36010	Cap, Front Wheel Adjusting Lock
9010112030	90101-12030	Bolt, Hexagon(For Front Disc Brake Caliper)
9020112007	90201-12007	Washer, Spring(For Rear Differential Case)
9025205001	90252-05001	PINCOTTER
9411571600	94115-71600	Nut(For Front Suspension Lower Arm)
9411571600	94130-01602	Nut(For Dust Cover To Steering Knuckle Arm Setting)
9538105040	95381-05040	Key, Woodruff(For Steering Idler Arm)

OEM	Part name	Category
43501-25010	Hub Sub-Assy, Front Axle	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
43501-37020	Hub Sub-Assy, Front Axle, Rh	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
43502-25030	Hub Sub-Assy, Front Axle	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
43502-37020	Hub Sub-Assy, Front Axle, Lh	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
43510-36120	Hub And Brake Drum Assy, Front Axle, Rh	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
43512-25050	Disc, Front	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
43512-36090	Drum Sub-Assy, Front Brake	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
43514-36030	Cap, Front Hub Grease	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
43520-36120	Hub And Brake Drum Assy, Front Axle, Lh	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
43525-36010	Cap, Front Wheel Adjusting Lock	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
90101-12030	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
90170-26001	Nut (For Front Axle Shaft Rh)	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
90201-12007	Washer, Spring(For Rear Differential Case)	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
90214-27001	Washer, Claw (For Front Axle Hub Rh)	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
90252-05001	PINCOTTER	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
90311-68001	Seal, Oil (For Front Axle Hub Rh)	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
90368-28001	Bearing (For Front Axle Hub Outer Rh)	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
90368-42045	Bearing (For Front Axle Hub Inner Rh)	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
90942-02050	Bolt, Hub (For Rear Axle Rh)	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
90942-02051	Bolt, Hub (For Rear Axle Lh)	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
90942-02061	Bolt, Hub (For Rear Axle Rh)	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
90942-02062	Bolt, Hub (For Rear Axle Lh)	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
94115-71600	Nut(For Front Suspension Lower Arm)	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
94130-01602	Nut(For Dust Cover To Steering Knuckle Arm Setting)	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
95381-05040	Key, Woodruff(For Steering Idler Arm)	Front Axle Hub ([08.1988 - ] (8808- )BU60,61,66,83,84,87)
