Search › Model › BU83

BU83

Toyota DYNA-TOYOACE · 1988 · 4,381 parts · 214 categories

4,381 items

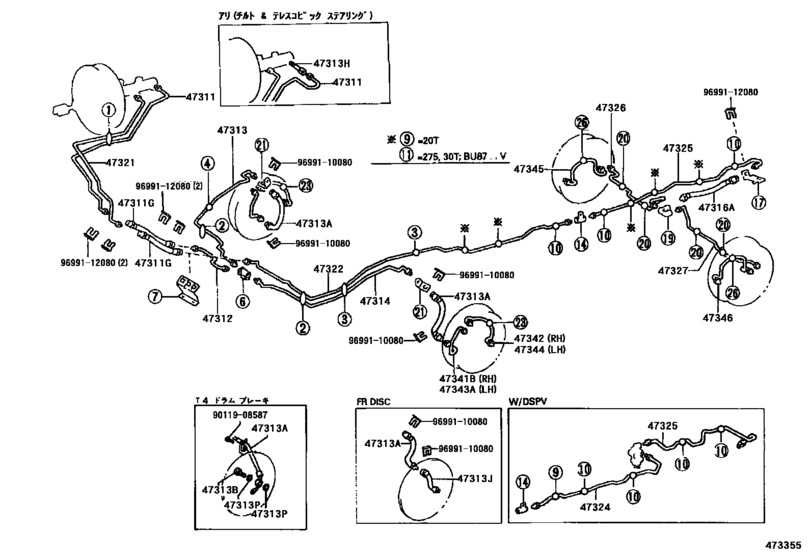

Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87) 41

#	OEM	Part name
47311	47311-36380	Tube, Front Brake, No.1
47311	47311-36410	Tube, Front Brake, No.1
47311	90947-02514	Hose, Clutch, No.1
47311	96932-33705	Hose, Clutch, No.1
47312	47312-36250	Tube, Front Brake, No.2
47313	47313-36160	Tube, Front Brake, No.3
47313	90947-02468	Hose, Flexible, No.1(For Front)
47313	90947-02754	Tube, Wheel Cylinder, Front Rh No.1
47313	90947-02513	Hose, Flexible, No.1(For Front)
47313	90947-02749	Hose, Flexible, No.1(For Front)
47313	90947-02666	Hose, Flexible, No.1(For Front)
47313	90947-02747	Hose, Flexible, No.1(For Front)
47313	90947-02667	Hose, Flexible, No.1(For Front)
47313	90947-02748	Hose, Flexible, No.1(For Front)
47313	90401-10043	Bolt, Union(For Front Flexible Hose)
47313	90404-12007	Way, No.3(For Front Brake Tube)
47313	90947-02516	Hose, Flexible, No.2(For Front)
47313	90430-10017	Gasket(For Front Flexible Hose)
47313	90430-10074	Gasket(For Oil Pressure Regulator)
47314	47314-36230	Tube, Front Brake, No.4
47316	90947-02520	Hose, Flexible(For Rear Brake Tube)
47316	96912-34005	Hose, Clutch, No.1
47321	47321-36280	Tube, Rear Brake, No.1
47322	47322-36241	Tube, Rear Brake, No.2
47324	47324-36240	Tube, Rear Brake, No.4
47325	47325-36171	Tube, Rear Brake, No.1
47325	47325-36310	Tube, Rear Brake, No.5
47326	47326-36070	Tube, Rear Brake, No.6
47327	47327-36120	Tube, Rear Brake, No.7
47341	47341-36080	Tube, Wheel Cylinder, Front Rh No.1
47341	47341-36081	Tube, Wheel Cylinder, Front Rh No.1
47341	47341-36082	Tube, Wheel Cylinder, Front Rh No.1
47342	47342-36060	Tube, Wheel Cylinder, Front Rh No.2
47343	47343-36080	Tube, Wheel Cylinder, Front Lh No.1
47343	47343-36081	Tube, Wheel Cylinder, Front Lh No.1
47343	47343-36082	Tube, Wheel Cylinder, Front Lh No.1
47344	47344-36060	Tube, Wheel Cylinder, Front Lh No.2
9011908587	90119-08587	New Genuine Part
9011908587	90129-08007	New Genuine Part
9699110080	96991-10080	CLIP
9699112080	96991-12080	Clip

OEM	Part name	Category
47311-36380	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
47311-36410	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
47312-36250	Tube, Front Brake, No.2	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
47313-36160	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
47314-36230	Tube, Front Brake, No.4	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
47321-36280	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
47322-36241	Tube, Rear Brake, No.2	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
47324-36240	Tube, Rear Brake, No.4	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
47325-36171	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
47325-36310	Tube, Rear Brake, No.5	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
47326-36070	Tube, Rear Brake, No.6	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
47327-36120	Tube, Rear Brake, No.7	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
47341-36080	Tube, Wheel Cylinder, Front Rh No.1	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
47341-36081	Tube, Wheel Cylinder, Front Rh No.1	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
47341-36082	Tube, Wheel Cylinder, Front Rh No.1	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
47342-36060	Tube, Wheel Cylinder, Front Rh No.2	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
47343-36080	Tube, Wheel Cylinder, Front Lh No.1	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
47343-36081	Tube, Wheel Cylinder, Front Lh No.1	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
47343-36082	Tube, Wheel Cylinder, Front Lh No.1	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
47344-36060	Tube, Wheel Cylinder, Front Lh No.2	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
90119-08587	New Genuine Part	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
90129-08007	New Genuine Part	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
90401-10043	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
90404-12007	Way, No.3(For Front Brake Tube)	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
90430-10017	Gasket(For Front Flexible Hose)	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
90430-10074	Gasket(For Oil Pressure Regulator)	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
90947-02468	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
90947-02513	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
90947-02514	Hose, Clutch, No.1	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
90947-02516	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
90947-02520	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
90947-02666	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
90947-02667	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
90947-02747	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
90947-02748	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
90947-02749	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
90947-02754	Tube, Wheel Cylinder, Front Rh No.1	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
96912-34005	Hose, Clutch, No.1	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
96932-33705	Hose, Clutch, No.1	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
96991-10080	CLIP	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)
96991-12080	Clip	Brake Tube & Clamp ([08.1988 - ] (8808- )BU83,84,87)

Source: Public OEM parts-catalog data
Variants: 1 / 4
Category: 214
Collected: 2026-08-03
