Search › Model › BU82

BU82

Toyota DYNA-TOYOACE · 1984 · 3,894 parts · 181 categories

3,894 items

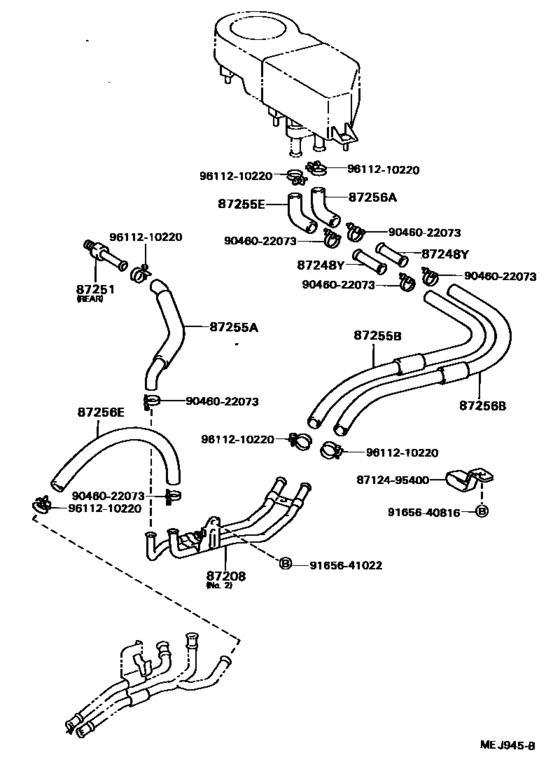

Heating & Air Conditioning - Water Piping ([08.1987 - ] (8708- )BU60,82..06S) 21

#	OEM	Part name
87208	87208-95409	Pipe Sub-Assy, Heater Water
87208	87208-95416	Pipe Sub-Assy, Heater Water
87208	87208-95417	Pipe Sub-Assy, Heater Water
87248	87248-95401	Pipe, Heater Water Inlet, A
87251	87251-29020	Joint Or Union, Front Heater Hose Through Or Inlet Valve
87251	87251-30200	Union(For Water By-Pass Hose)
87255	87245-95474	Hose, Rear Heater Water Inlet, A(From Engine)
87255	87245-95479	Hose, Rear Heater Water Inlet, B
87255	87245-92600	Hose, Heater Water, Inlet E
87256	87245-95476	Hose, Rear Heater Water Outlet, B
87256	99556-20480	Hose, Rear Heater Water Outlet, E (To Engine)
87256	99556-20500	Hose, Rear Heater Water Inlet, B
8712495400	87124-95400	Clamp, Heater
9046022073	90460-22073	Clip(For Ventilation Hose No.2)
9046022073	90467-19022	Clip(For Ventilation Hose No.2)
9165640816	91656-40816	New Genuine Part
9165640816	91651-B0814	Bolt with washer
9165640816	90119-A0109	New Genuine Part
9165641022	91656-41022	Bolt, No.1 (For Center Support Bearing)
9165641022	91651-61020	Bolt, No.1 (For Center Support Bearing)
9611210220	96112-10220	Clamp Or Clip, Hose(For Water By-Pass Hose)

OEM	Part name	Category
87124-95400	Clamp, Heater	Heating & Air Conditioning - Water Piping ([08.1987 - ] (8708- )BU60,82..06S)
87208-95409	Pipe Sub-Assy, Heater Water	Heating & Air Conditioning - Water Piping ([08.1987 - ] (8708- )BU60,82..06S)
87208-95416	Pipe Sub-Assy, Heater Water	Heating & Air Conditioning - Water Piping ([08.1987 - ] (8708- )BU60,82..06S)
87208-95417	Pipe Sub-Assy, Heater Water	Heating & Air Conditioning - Water Piping ([08.1987 - ] (8708- )BU60,82..06S)
87245-92600	Hose, Heater Water, Inlet E	Heating & Air Conditioning - Water Piping ([08.1987 - ] (8708- )BU60,82..06S)
87245-95474	Hose, Rear Heater Water Inlet, A(From Engine)	Heating & Air Conditioning - Water Piping ([08.1987 - ] (8708- )BU60,82..06S)
87245-95476	Hose, Rear Heater Water Outlet, B	Heating & Air Conditioning - Water Piping ([08.1987 - ] (8708- )BU60,82..06S)
87245-95479	Hose, Rear Heater Water Inlet, B	Heating & Air Conditioning - Water Piping ([08.1987 - ] (8708- )BU60,82..06S)
87248-95401	Pipe, Heater Water Inlet, A	Heating & Air Conditioning - Water Piping ([08.1987 - ] (8708- )BU60,82..06S)
87251-29020	Joint Or Union, Front Heater Hose Through Or Inlet Valve	Heating & Air Conditioning - Water Piping ([08.1987 - ] (8708- )BU60,82..06S)
87251-30200	Union(For Water By-Pass Hose)	Heating & Air Conditioning - Water Piping ([08.1987 - ] (8708- )BU60,82..06S)
90119-A0109	New Genuine Part	Heating & Air Conditioning - Water Piping ([08.1987 - ] (8708- )BU60,82..06S)
90460-22073	Clip(For Ventilation Hose No.2)	Heating & Air Conditioning - Water Piping ([08.1987 - ] (8708- )BU60,82..06S)
90467-19022	Clip(For Ventilation Hose No.2)	Heating & Air Conditioning - Water Piping ([08.1987 - ] (8708- )BU60,82..06S)
91651-61020	Bolt, No.1 (For Center Support Bearing)	Heating & Air Conditioning - Water Piping ([08.1987 - ] (8708- )BU60,82..06S)
91651-B0814	Bolt with washer	Heating & Air Conditioning - Water Piping ([08.1987 - ] (8708- )BU60,82..06S)
91656-40816	New Genuine Part	Heating & Air Conditioning - Water Piping ([08.1987 - ] (8708- )BU60,82..06S)
91656-41022	Bolt, No.1 (For Center Support Bearing)	Heating & Air Conditioning - Water Piping ([08.1987 - ] (8708- )BU60,82..06S)
96112-10220	Clamp Or Clip, Hose(For Water By-Pass Hose)	Heating & Air Conditioning - Water Piping ([08.1987 - ] (8708- )BU60,82..06S)
99556-20480	Hose, Rear Heater Water Outlet, E (To Engine)	Heating & Air Conditioning - Water Piping ([08.1987 - ] (8708- )BU60,82..06S)
99556-20500	Hose, Rear Heater Water Inlet, B	Heating & Air Conditioning - Water Piping ([08.1987 - ] (8708- )BU60,82..06S)

Source: Public OEM parts-catalog data
Variants: 2 / 42
Category: 181
Collected: 2026-08-03
