BU82

Toyota DYNA-TOYOACE · 1984 · 3,894 parts · 181 categories

← Back to categories

3,894 items

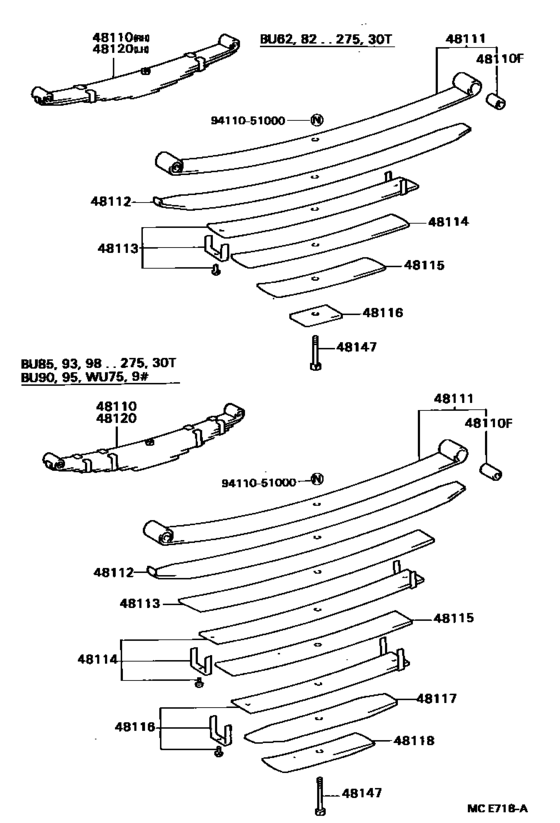

Front Spring & Shock Absorber ([08.1987 - ] (8708- )) 16

#	OEM	Part name
48110	48110-3B320	Spring Assy, Front, Rh
48110	48299-36010	Bimetal Formed Bush(For Front Spring)
48111	48101-3B320	Leaf, Front Spring, No.1
48111	48101-3B330	Leaf, Front Spring, No.1
48112	48112-3B320	Leaf, Front Spring, No.2
48112	48112-3B330	Leaf, Front Spring, No.2
48113	48102-3B320	Leaf, Front Spring, No.3
48113	48102-3B330	Leaf, Front Spring, No.3
48114	48114-3B320	Leaf, Front Spring, No.4
48114	48114-3B330	Leaf, Front Spring, No.4
48115	48115-3B320	Leaf, Front Spring, No.5
48115	48115-3B330	Leaf, Front Spring, No.5
48120	48110-3B330	Spring Assy, Front, Lh
48147	48147-3B130	Bolt, Front Spring, Center
9017910043	90179-10043	Nut (For Shift Lever Support)
9411051000	94110-51000	Nut(For Steering Center Arm)

OEM	Part name	Category
48101-3B320	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([08.1987 - ] (8708- ))
48101-3B330	Leaf, Front Spring, No.1	Front Spring & Shock Absorber ([08.1987 - ] (8708- ))
48102-3B320	Leaf, Front Spring, No.3	Front Spring & Shock Absorber ([08.1987 - ] (8708- ))
48102-3B330	Leaf, Front Spring, No.3	Front Spring & Shock Absorber ([08.1987 - ] (8708- ))
48110-3B320	Spring Assy, Front, Rh	Front Spring & Shock Absorber ([08.1987 - ] (8708- ))
48110-3B330	Spring Assy, Front, Lh	Front Spring & Shock Absorber ([08.1987 - ] (8708- ))
48112-3B320	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([08.1987 - ] (8708- ))
48112-3B330	Leaf, Front Spring, No.2	Front Spring & Shock Absorber ([08.1987 - ] (8708- ))
48114-3B320	Leaf, Front Spring, No.4	Front Spring & Shock Absorber ([08.1987 - ] (8708- ))
48114-3B330	Leaf, Front Spring, No.4	Front Spring & Shock Absorber ([08.1987 - ] (8708- ))
48115-3B320	Leaf, Front Spring, No.5	Front Spring & Shock Absorber ([08.1987 - ] (8708- ))
48115-3B330	Leaf, Front Spring, No.5	Front Spring & Shock Absorber ([08.1987 - ] (8708- ))
48147-3B130	Bolt, Front Spring, Center	Front Spring & Shock Absorber ([08.1987 - ] (8708- ))
48299-36010	Bimetal Formed Bush(For Front Spring)	Front Spring & Shock Absorber ([08.1987 - ] (8708- ))
90179-10043	Nut (For Shift Lever Support)	Front Spring & Shock Absorber ([08.1987 - ] (8708- ))
94110-51000	Nut(For Steering Center Arm)	Front Spring & Shock Absorber ([08.1987 - ] (8708- ))

Source: Public OEM parts-catalog data
Variants: 2 / 42
Category: 181
Collected: 2026-08-03
