Search › Model › BU82

BU82

Toyota DYNA-TOYOACE · 1984 · 3,894 parts · 181 categories

3,894 items

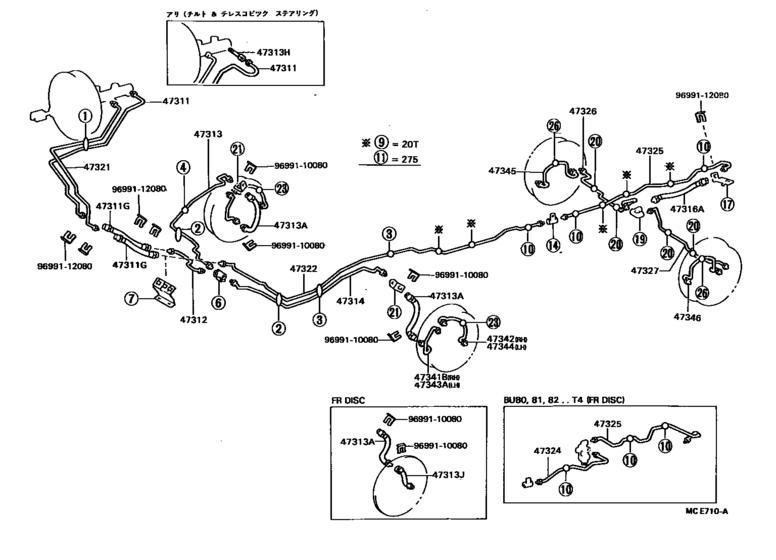

Brake Tube & Clamp ([08.1987 - ] (8708- )BU80,81,82) 22

#	OEM	Part name
47311	47311-36380	Tube, Front Brake, No.1
47311	47311-36410	Tube, Front Brake, No.1
47311	96932-33705	Hose, Clutch, No.1
47312	47312-36250	Tube, Front Brake, No.2
47313	47313-36160	Tube, Front Brake, No.3
47313	90947-02470	Hose, Flexible, No.1(For Front)
47313	96940-33305	Hose, Clutch, No.1
47313	90404-12007	Way, No.3(For Front Brake Tube)
47313	90947-02521	Hose, Flexible, No.2(For Front)
47314	47314-36230	Tube, Front Brake, No.4
47316	96912-34005	Hose, Clutch, No.1
47321	47321-36280	Tube, Rear Brake, No.1
47322	47322-36241	Tube, Rear Brake, No.2
47325	47325-36240	Tube, Rear Brake, No.5
47326	47326-36140	Tube, Rear Brake, No.6
47327	47327-36140	Tube, Rear Brake, No.7
47341	47341-36090	Tube, Wheel Cylinder, Front Rh No.1
47342	47342-36030	Tube, Wheel Cylinder, Front Rh No.2
47343	47343-36090	Tube, Wheel Cylinder, Front Lh No.1
47345	47345-36040	Tube, Wheel Cylinder, Rear Rh
9699110080	96991-10080	CLIP
9699112080	96991-12080	Clip

OEM	Part name	Category
47311-36380	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.1987 - ] (8708- )BU80,81,82)
47311-36410	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.1987 - ] (8708- )BU80,81,82)
47312-36250	Tube, Front Brake, No.2	Brake Tube & Clamp ([08.1987 - ] (8708- )BU80,81,82)
47313-36160	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.1987 - ] (8708- )BU80,81,82)
47314-36230	Tube, Front Brake, No.4	Brake Tube & Clamp ([08.1987 - ] (8708- )BU80,81,82)
47321-36280	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.1987 - ] (8708- )BU80,81,82)
47322-36241	Tube, Rear Brake, No.2	Brake Tube & Clamp ([08.1987 - ] (8708- )BU80,81,82)
47325-36240	Tube, Rear Brake, No.5	Brake Tube & Clamp ([08.1987 - ] (8708- )BU80,81,82)
47326-36140	Tube, Rear Brake, No.6	Brake Tube & Clamp ([08.1987 - ] (8708- )BU80,81,82)
47327-36140	Tube, Rear Brake, No.7	Brake Tube & Clamp ([08.1987 - ] (8708- )BU80,81,82)
47341-36090	Tube, Wheel Cylinder, Front Rh No.1	Brake Tube & Clamp ([08.1987 - ] (8708- )BU80,81,82)
47342-36030	Tube, Wheel Cylinder, Front Rh No.2	Brake Tube & Clamp ([08.1987 - ] (8708- )BU80,81,82)
47343-36090	Tube, Wheel Cylinder, Front Lh No.1	Brake Tube & Clamp ([08.1987 - ] (8708- )BU80,81,82)
47345-36040	Tube, Wheel Cylinder, Rear Rh	Brake Tube & Clamp ([08.1987 - ] (8708- )BU80,81,82)
90404-12007	Way, No.3(For Front Brake Tube)	Brake Tube & Clamp ([08.1987 - ] (8708- )BU80,81,82)
90947-02470	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1987 - ] (8708- )BU80,81,82)
90947-02521	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([08.1987 - ] (8708- )BU80,81,82)
96912-34005	Hose, Clutch, No.1	Brake Tube & Clamp ([08.1987 - ] (8708- )BU80,81,82)
96932-33705	Hose, Clutch, No.1	Brake Tube & Clamp ([08.1987 - ] (8708- )BU80,81,82)
96940-33305	Hose, Clutch, No.1	Brake Tube & Clamp ([08.1987 - ] (8708- )BU80,81,82)
96991-10080	CLIP	Brake Tube & Clamp ([08.1987 - ] (8708- )BU80,81,82)
96991-12080	Clip	Brake Tube & Clamp ([08.1987 - ] (8708- )BU80,81,82)
