BU81

Toyota DYNA-TOYOACE · 1985 · 3,878 parts · 175 categories

3,878 items

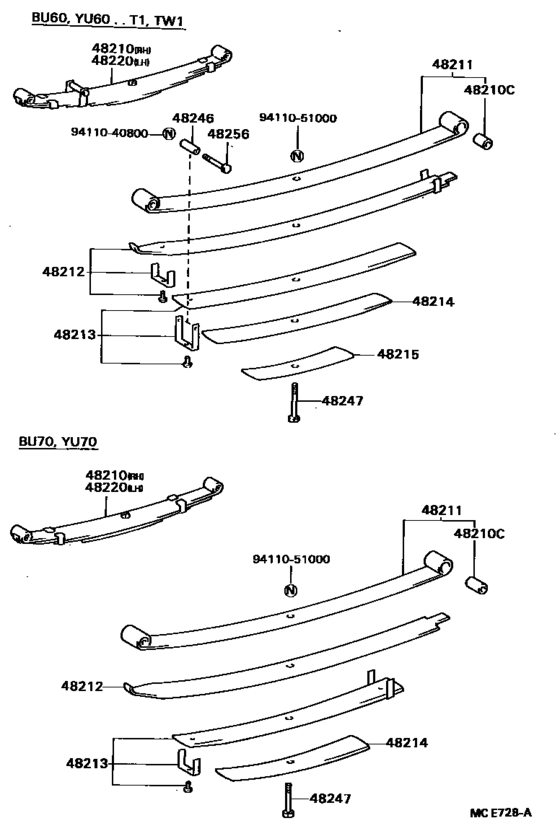

Rear Spring & Shock Absorber ([08.1987 - ] (8708- )) 20

#	OEM	Part name
48210	48210-36830	Spring Assy, Rear Rh
48210	90389-16002	Bimetal Formed Bush(For Front Spring)
48210	90389-16003	Bimetal Formed Bush(For Front Spring)
48210	90389-16005	Bush(For Rear Spring Leaf)
48211	48201-36830	Leaf, Rear Spring, No.1
48212	48202-36830	Leaf, Rear Spring, No.2
48213	48203-36830	Leaf, Rear Spring, No.3
48214	48214-36830	Leaf, Rear Spring, No.4
48215	48215-36830	Leaf, Rear Spring, No.5
48216	48216-36830	Leaf, Rear Spring, No.6
48247	48247-36460	Bolt, Rear Spring, Center
48261	48217-36830	Leaf, Rear Helper Spring, No.1
48262	48218-36830	Leaf, Rear Helper Spring, No.2
48263	48204-36830	Leaf, Rear Helper Spring, No.3
48264	48221-36830	Leaf, Rear Helper Spring, No.4
48265	48222-36830	Leaf, Rear Helper Spring, No.5
48266	48223-36830	Leaf, Rear Helper Spring, No.6
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9411051000	94110-51000	Nut(For Steering Center Arm)

OEM	Part name	Category
48201-36830	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([08.1987 - ] (8708- ))
48202-36830	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([08.1987 - ] (8708- ))
48203-36830	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([08.1987 - ] (8708- ))
48204-36830	Leaf, Rear Helper Spring, No.3	Rear Spring & Shock Absorber ([08.1987 - ] (8708- ))
48210-36830	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([08.1987 - ] (8708- ))
48214-36830	Leaf, Rear Spring, No.4	Rear Spring & Shock Absorber ([08.1987 - ] (8708- ))
48215-36830	Leaf, Rear Spring, No.5	Rear Spring & Shock Absorber ([08.1987 - ] (8708- ))
48216-36830	Leaf, Rear Spring, No.6	Rear Spring & Shock Absorber ([08.1987 - ] (8708- ))
48217-36830	Leaf, Rear Helper Spring, No.1	Rear Spring & Shock Absorber ([08.1987 - ] (8708- ))
48218-36830	Leaf, Rear Helper Spring, No.2	Rear Spring & Shock Absorber ([08.1987 - ] (8708- ))
48221-36830	Leaf, Rear Helper Spring, No.4	Rear Spring & Shock Absorber ([08.1987 - ] (8708- ))
48222-36830	Leaf, Rear Helper Spring, No.5	Rear Spring & Shock Absorber ([08.1987 - ] (8708- ))
48223-36830	Leaf, Rear Helper Spring, No.6	Rear Spring & Shock Absorber ([08.1987 - ] (8708- ))
48247-36460	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([08.1987 - ] (8708- ))
90389-16002	Bimetal Formed Bush(For Front Spring)	Rear Spring & Shock Absorber ([08.1987 - ] (8708- ))
90389-16003	Bimetal Formed Bush(For Front Spring)	Rear Spring & Shock Absorber ([08.1987 - ] (8708- ))
90389-16005	Bush(For Rear Spring Leaf)	Rear Spring & Shock Absorber ([08.1987 - ] (8708- ))
94110-40800	Nut(For Steering Damper)	Rear Spring & Shock Absorber ([08.1987 - ] (8708- ))
94110-51000	Nut(For Steering Center Arm)	Rear Spring & Shock Absorber ([08.1987 - ] (8708- ))
94130-00802	Nut, No.1 (For Center Support Bearing)	Rear Spring & Shock Absorber ([08.1987 - ] (8708- ))
