BU81

Toyota DYNA-TOYOACE · 1985 · 3,878 parts · 175 categories
BU81 ×

← Back to categories

3,878 items

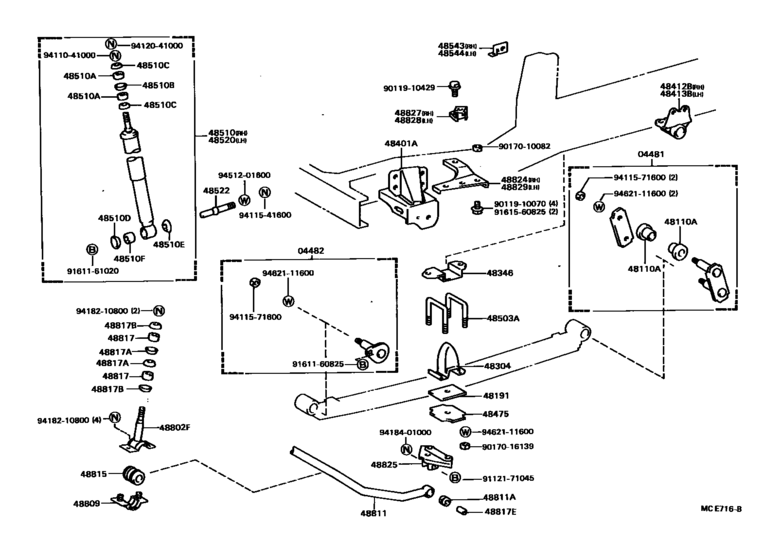

Front Spring & Shock Absorber ([08.1987 - ] (8708- )BU6#,70,80,81,82) 48
#OEMPart name
4481 04481-36070 Shackle Kit, Front Spring
4481 04481-36090 Shackle Kit, Front Spring
4482 04482-36010 Pin Kit, Front Spring
4482 04482-36011 Pin Kit, Front Spring
48110 90385-23037 Bush(For Front Spring Shackle)
48191 48191-36110 Wedge, Caster(For Front Leaf Spring)
48304 48304-36150 Bumper Sub-Assy, Front Spring, No.1
48346 48346-36040 Stopper, Bumper, Front
48401 48411-36120 Bracket Sub-Assy, Spring, No.1
48401 48412-36120 Bracket Sub-Assy, Spring, No.1
48412 48413-36050 Bracket, Spring, No.2 Rh
48475 48475-36070 Plate, Distance(For Front)
48503 90117-16020 Bolt, U(For Front Shock Absorber Bracket)
48503 90117-16093 Bolt, U(For Front Shock Absorber Bracket)
48510 48511-39505 Absorber Assy, Shock, Front Rh
48510 48511-80032 Absorber Assy, Shock, Front Rh
48510 90948-01003 Rubber Cushion
48510 90948-02007 Retainer, Steering Damper Cushion
48510 90948-02002 Retainer, Steering Damper Cushion
48510 90948-03007 Washer, Front Shock Absorber Cushion, No.1
48510 90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)
48510 90385-16009 Cushion, Shock Absorber
48522 48522-25010 Pin, Front Shock Absorber Lower Pivot
9011910070 90119-10070 New Genuine Part
9011910429 90119-10429 New Genuine Part
9011910429 90119-10523 New Genuine Part
9017010082 90170-10082 Nut, Hexagon (For Control Rod Setting)
9017016139 90170-16139 Nut(For Rear Spring U Bolt)
9112171045 91121-71045 Bolt(For Stabilizer)
9112171045 91512-61045 Bolt
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9161161020 91611-61020 Bolt(For Transaxle & Engine Setting)
9161161020 91612-B1020 Bolt (For Transfer Case)Cover No.2
9161560825 91615-60825 Bolt(For Intake Manifold To Exhaust Manifold)
9161560825 91611-60822 Bolt
9411041000 94110-41000 Nut(For Steering Damper)
9411541600 94115-41600 Nut, Hexagon(for Sector Shaft To Pitman Arm Setting)
9411541600 94130-61600 Nut, Hexagon(for Sector Shaft To Pitman Arm Setting)
9411571600 94115-71600 Nut(For Front Suspension Lower Arm)
9411571600 94130-01602 Nut(For Dust Cover To Steering Knuckle Arm Setting)
9412041000 94120-41000 Nut(For Clutch Pedal Stopper)
9412041000 90170-A0002 Nut
9418210800 94182-10800 Nut
9418401000 94184-01000 Nut
9451201600 94512-01600 Washer(For Center Arm Shaft)
9451201600 90204-16001 Washer(For Center Arm Shaft)
9462111600 94621-11600 Washer(For Rear Spring U Bolt)
