Search › Model › BU81

BU81

Toyota DYNA-TOYOACE · 1985 · 3,878 parts · 175 categories

3,878 items

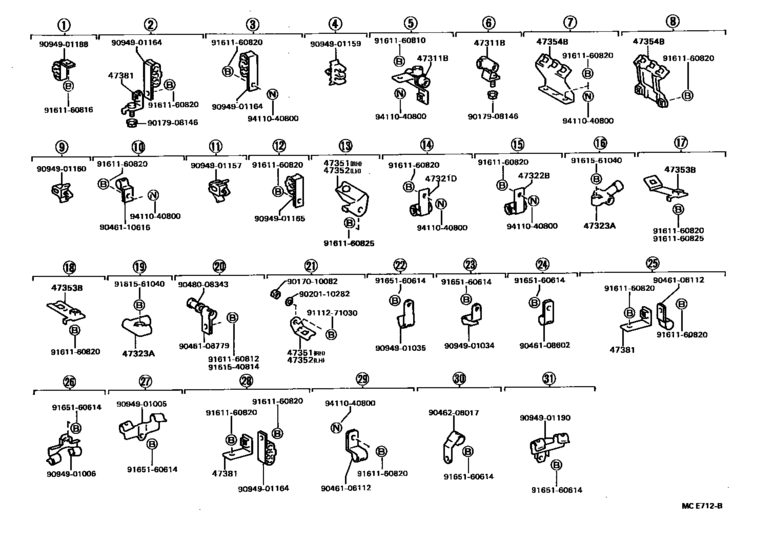

Brake Tube & Clamp ([08.1987 - ] (8708- )) 57

#	OEM	Part name
47311	90413-12005	Way, No.1(For Front Brake Tube)
47321	90412-12014	Way, No.1(For Rear Brake Tube)
47323	90413-10125	Way, No.2(For Rear Brake Tube)
47351	47351-36130	Bracket, Flexible Hose(For Front Rh)
47353	47353-36171	Bracket, Flexible Hose(For Rear)
47354	47354-36070	Bracket, Front Flexible Hose
47381	47381-36060	Bracket, Brake Tube Clamp No.1
9017010082	90170-10082	Nut, Hexagon (For Control Rod Setting)
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9020110282	90201-10282	Gasket(For Vacuum Pump Union)
9020123360	90201-23360	WASHER
9046106112	90461-06112	Clamp, Brake Tube, No.6
9046108602	90461-08602	New Genuine Part
9046108779	90461-08779	New Genuine Part
9046110616	90461-10616	New Genuine Part
9046206017	90462-06017	New Genuine Part
9048008343	90480-08343	Grommet, No.2(For Front Brake Tube)
9094901005	90949-01005	New Genuine Part
9094901006	90949-01006	CLAMP
9094901034	90949-01034	New Genuine Part
9094901035	90949-01035	New Genuine Part
9094901157	90949-01157	New Genuine Part
9094901157	90949-01601	New Genuine Part
9094901159	90949-01159	New Genuine Part
9094901159	90949-01602	New Genuine Part
9094901160	90949-01160	New Genuine Part
9094901160	90949-01600	New Genuine Part
9094901164	90949-01164	New Genuine Part
9094901165	90949-01165	New Genuine Part
9094901188	90949-01188	Clamp, Brake Tube, No.1
9094901190	90949-01190	New Genuine Part
9111271030	91112-71030	New Genuine Part
9113150840	91131-50840	BOLT
9161160810	91611-60810	New Genuine Part
9161160812	91611-60812	Bolt(For Drive Plate & Torque Converter Setting)
9161160812	91611-B0812	Bolt
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9161160820	91611-60820	Bolt(For Transaxle & Engine Setting)
9161160820	91611-G0820	Bolt
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
9161160825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9161540814	91615-40814	Bolt(For Oil Receiver Pipe)
9161540814	91611-60814	Bolt
9161561040	91615-61040	Bolt(for Transaxle Case & Engine Setting)
9161561040	91612-61040	Bolt(For Transmission Case & Engine Setting)
9165140816	91651-40816	BOLT
9165140820	91651-40820	Bolt
9165160614	91651-60614	Bolt
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9411041000	94110-41000	Nut(For Steering Damper)
9414140800	94141-40800	New Genuine Part
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9538102020	95381-02020	PIN

OEM	Part name	Category
47351-36130	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
47353-36171	Bracket, Flexible Hose(For Rear)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
47354-36070	Bracket, Front Flexible Hose	Brake Tube & Clamp ([08.1987 - ] (8708- ))
47381-36060	Bracket, Brake Tube Clamp No.1	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90170-10082	Nut, Hexagon (For Control Rod Setting)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90179-08146	Nut	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90179-08204	Nut	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90201-10282	Gasket(For Vacuum Pump Union)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90201-23360	WASHER	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90412-12014	Way, No.1(For Rear Brake Tube)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90413-10125	Way, No.2(For Rear Brake Tube)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90413-12005	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90461-06112	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90461-08602	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90461-08779	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90461-10616	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90462-06017	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90480-08343	Grommet, No.2(For Front Brake Tube)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90949-01005	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90949-01006	CLAMP	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90949-01034	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90949-01035	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90949-01157	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90949-01159	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90949-01160	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90949-01164	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90949-01165	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90949-01188	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90949-01190	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90949-01600	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90949-01601	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90949-01602	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91112-71030	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91131-50840	BOLT	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91611-60810	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91611-60812	Bolt(For Drive Plate & Torque Converter Setting)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91611-60814	Bolt	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91611-60820	Bolt(For Transaxle & Engine Setting)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91611-B0812	Bolt	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91611-B0816	Bolt	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91611-G0820	Bolt	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91612-61040	Bolt(For Transmission Case & Engine Setting)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91615-40814	Bolt(For Oil Receiver Pipe)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91615-61040	Bolt(for Transaxle Case & Engine Setting)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91651-40816	BOLT	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91651-40820	Bolt	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91651-60614	Bolt	Brake Tube & Clamp ([08.1987 - ] (8708- ))
94110-40800	Nut(For Steering Damper)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
94110-41000	Nut(For Steering Damper)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
94130-00802	Nut, No.1 (For Center Support Bearing)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
94141-40800	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- ))
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
95381-02020	PIN	Brake Tube & Clamp ([08.1987 - ] (8708- ))
