BU79

Toyota DYNA-200-TOYOACE-G25 · 1992 · 3,248 parts · 137 categories

← Back to categories

3,248 items

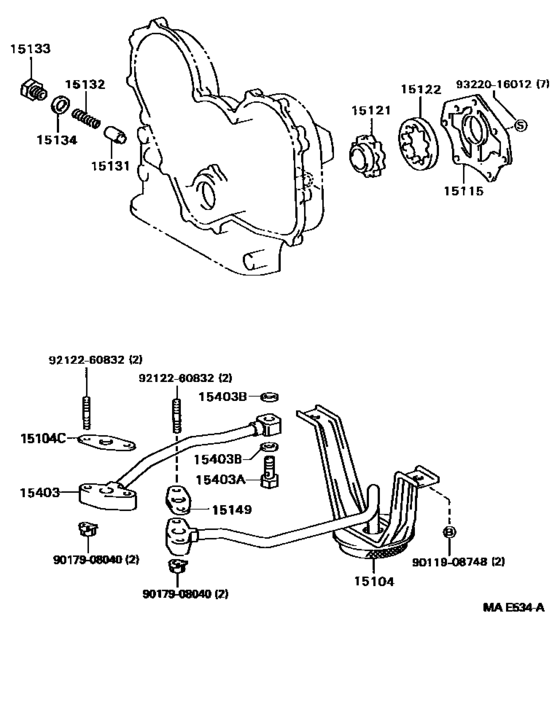

Engine Oil Pump ([10.1992 - ] (8808-9210)11B ; (8808-9310)14B ; (9210- )3B) 19

#	OEM	Part name
15104	15104-56061	Strainer Sub-Assy, Oil
15104	15104-56062	Strainer Sub-Assy, Oil
15104	15149-56020	Gasket(For Oil Strainer)
15104	15149-58010	Gasket(For Oil Strainer)
15115	15115-56040	Cover, Oil Pump
15121	15121-56040	Gear, Oil Pump Drive
15122	15122-56040	Gear, Oil Pump Driven
15131	15131-24010	Valve, Oil Pump Relief
15132	15132-56080	Spring, Oil Pump Relief Valve
15133	15133-20010	Plug, Oil Pump Relief Valve
15134	15134-20010	Gasket, Oil Pump Relief Valve
15403	15403-56050	Pipe Sub-Assy, Oil Pump Outlet
15403	90401-20009	Union(For Oil Pump Outlet Pipe)
15403	90430-20018	Gasket(For Oil Pump Outlet Pipe)
9011908748	90119-08748	Bolt(for Automatic Transmission Case Protector)
9011908748	91651-B0820	Bolt, Radiator Side Support Plate
9017908040	90179-08040	Nut, Cap(For Cylinder Head Cover)
9212260832	92122-60832	Bolt, Stud(For Oil Strainer)
9322016012	93220-16012	SCREW

OEM	Part name	Category
15104-56061	Strainer Sub-Assy, Oil	Engine Oil Pump ([10.1992 - ] (8808-9210)11B ; (8808-9310)14B ; (9210- )3B)
15104-56062	Strainer Sub-Assy, Oil	Engine Oil Pump ([10.1992 - ] (8808-9210)11B ; (8808-9310)14B ; (9210- )3B)
15115-56040	Cover, Oil Pump	Engine Oil Pump ([10.1992 - ] (8808-9210)11B ; (8808-9310)14B ; (9210- )3B)
15121-56040	Gear, Oil Pump Drive	Engine Oil Pump ([10.1992 - ] (8808-9210)11B ; (8808-9310)14B ; (9210- )3B)
15122-56040	Gear, Oil Pump Driven	Engine Oil Pump ([10.1992 - ] (8808-9210)11B ; (8808-9310)14B ; (9210- )3B)
15131-24010	Valve, Oil Pump Relief	Engine Oil Pump ([10.1992 - ] (8808-9210)11B ; (8808-9310)14B ; (9210- )3B)
15132-56080	Spring, Oil Pump Relief Valve	Engine Oil Pump ([10.1992 - ] (8808-9210)11B ; (8808-9310)14B ; (9210- )3B)
15133-20010	Plug, Oil Pump Relief Valve	Engine Oil Pump ([10.1992 - ] (8808-9210)11B ; (8808-9310)14B ; (9210- )3B)
15134-20010	Gasket, Oil Pump Relief Valve	Engine Oil Pump ([10.1992 - ] (8808-9210)11B ; (8808-9310)14B ; (9210- )3B)
15149-56020	Gasket(For Oil Strainer)	Engine Oil Pump ([10.1992 - ] (8808-9210)11B ; (8808-9310)14B ; (9210- )3B)
15149-58010	Gasket(For Oil Strainer)	Engine Oil Pump ([10.1992 - ] (8808-9210)11B ; (8808-9310)14B ; (9210- )3B)
15403-56050	Pipe Sub-Assy, Oil Pump Outlet	Engine Oil Pump ([10.1992 - ] (8808-9210)11B ; (8808-9310)14B ; (9210- )3B)
90119-08748	Bolt(for Automatic Transmission Case Protector)	Engine Oil Pump ([10.1992 - ] (8808-9210)11B ; (8808-9310)14B ; (9210- )3B)
90179-08040	Nut, Cap(For Cylinder Head Cover)	Engine Oil Pump ([10.1992 - ] (8808-9210)11B ; (8808-9310)14B ; (9210- )3B)
90401-20009	Union(For Oil Pump Outlet Pipe)	Engine Oil Pump ([10.1992 - ] (8808-9210)11B ; (8808-9310)14B ; (9210- )3B)
90430-20018	Gasket(For Oil Pump Outlet Pipe)	Engine Oil Pump ([10.1992 - ] (8808-9210)11B ; (8808-9310)14B ; (9210- )3B)
91651-B0820	Bolt, Radiator Side Support Plate	Engine Oil Pump ([10.1992 - ] (8808-9210)11B ; (8808-9310)14B ; (9210- )3B)
92122-60832	Bolt, Stud(For Oil Strainer)	Engine Oil Pump ([10.1992 - ] (8808-9210)11B ; (8808-9310)14B ; (9210- )3B)
93220-16012	SCREW	Engine Oil Pump ([10.1992 - ] (8808-9210)11B ; (8808-9310)14B ; (9210- )3B)
