BU78

Toyota DYNA-TOYOACE · 1989 · 4,683 parts · 212 categories
BU78 ×

← Back to categories

4,683 items

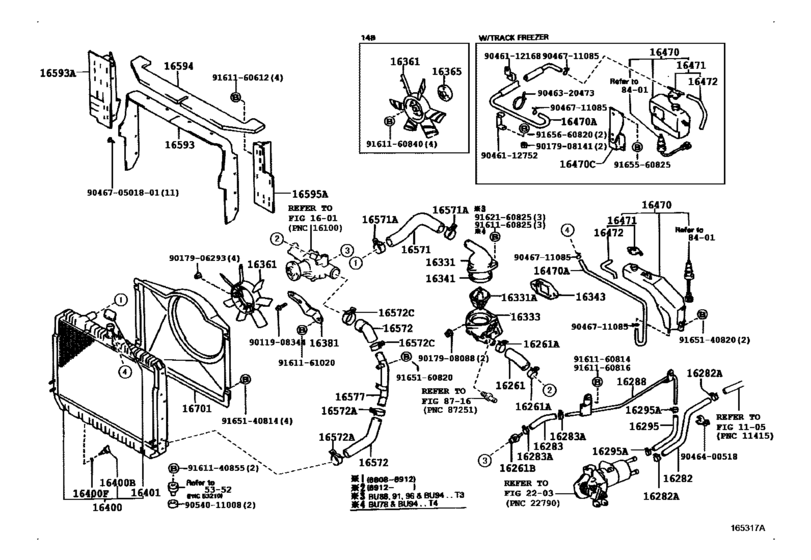

Radiator & Water Outlet ([08.1988 - ] (8808- )14B..BU78,88,91,94,96) 84
#OEMPart name
16261 16261-56012 Hose, Water By-Pass
16261 90467-28004 Clamp Or Clip, Hose(For Water By-Pass Hose)
16261 90467-28007 Clip Or Clamp(For Ventilation Hose)
16261 90404-52028 Union(For Water By-Pass Hose)
16282 16282-56010 Hose, Water By-Pass, No.5
16282 90467-15004 Clip(For Ventilation Hose No.2)
16283 16283-56010 Hose, Water By-Pass, No.6
16288 16288-56010 Pipe, Water By-Pass, No.4
16295 16295-56010 Hose, Water By-Pass, No.7
16331 16331-56020 Outlet, Water
16331 90916-03080 Thermostat
16331 90916-03103 Thermostat
16333 16333-56072 Housing, Water Outlet
16333 16333-58080 Housing, Water Outlet
16333 90341-12006 Plug(For Water Outlet)
16333 90430-12221 Gasket
16341 16341-56030 Gasket, Water Outlet
16343 16343-56021 Gasket, Water Outlet Housing
16343 16343-56023 Gasket, Water Outlet Housing
16343 16343-56022 Gasket, Water Outlet Housing
16361 16361-38010 Fan
16381 16381-56060 Bar, Fan Belt Adjusting
16381 16381-58120 Bar, Fan Belt Adjusting
16400 16400-58232 Radiator Assy
16400 16417-24051 Plug, Radiator Drain Cock
16400 16418-24051 Packing(For Radiator Drain Cock)
16401 16401-71010 Cap Sub-Assy(For Water Outlet)
16401 16401-54750 Radiator Cap
16470 16470-58010 Tank Assy, Radiator Reserve
16470 16470-58020 Tank Assy, Radiator Reserve
16470 90445-12143 Hose Or Pipe(For Radiator Reserve Tank)
16471 16405-56070 Cap Sub-Assy, Reserve Tank
16472 16472-58010 Hose, Breather
16571 16571-58030 Hose, Radiator, Inlet
16571 90467-42001 Clamp Or Clip, Hose(For Radiator Inlet)
16571 90466-41008 Clamp, Hose(For Radiator Hose)
16572 16572-56090 Hose, Radiator, Outlet
16572 16572-56091 Hose, Radiator, Outlet
16572 96111-10490 Clamp Or Clip, Sub Radiator Hose
16572 16573-58020 Hose, Radiator, Outlet
16572 96111-10510 Clamp Or Clip, Sub Radiator Hose
16572 96111-10570 Clamp Or Clip, Hose(For Radiator Outlet No.1)
16577 16577-56050 Pipe, Radiator, No.7
16593 16593-58050 Guide, Radiator Air, No.1
16593 16593-58060 Guide, Radiator Air, No.1 Rh
16594 16594-58030 Guide, Radiator Air, No.2
16595 16595-58040 Guide, Radiator Air, No.1 Lh
16701 16701-58080 Shroud Sub-Assy, Fan
9011908344 90119-08344 New Genuine Part
9017906293 90179-06293 NUT
9017908088 90179-08088 NUT
9017908088 94185-60800 NUT
9017908141 90179-08141 Nut (For Transmission Control Cable)
9017908141 90179-08038 Nut
9046112168 90461-12168 New Genuine Part
9046112752 90461-12752 New Genuine Part
9046320473 90463-20473 New Genuine Part
9046400518 90464-00518 Clamp Or Clip(For Water By-Pass Hose)
9046711085 90467-11085 Clamp Or Clip(For Radiator Breather Hose)
9054011008 90540-11008 Insulator, Radiator Mounting
9161140855 91611-40855 Bolt(For Rocker Support Set)
9161140855 91611-60855 Bolt(For Rocker Support Set)
9161160612 91611-60612 Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612 91611-G0612 Bolt
9161160814 91611-60814 Bolt
9161160816 91611-60816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816 91611-B0816 Bolt
9161160825 91611-60825 Bolt(For Head To Camshaft Bearing Cap)
9161160825 91611-B0825 Bolt(For Clutch Release Cylinder Setting)
9161160840 91611-60840 BOLT
9161161020 91611-61020 Bolt(For Transaxle & Engine Setting)
9161161020 91612-B1020 Bolt (For Transfer Case)Cover No.2
9162160825 91621-60825 BOLT
9162160825 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9165140820 91651-40820 Bolt
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
9165560825 91655-60825 Bolt, Radiator Side Support Plate
9165660820 91656-60820 New Genuine Part
9165660820 91651-60816 BOLT
904670501801 90467-05018-01 Clip, Slide Door Trim Carpet
904670501801 90467-05018-22 New Genuine Part
