Search › Model › BU77

BU77

Toyota DYNA-TOYOACE · 1985 · 4,081 parts · 177 categories

4,081 items

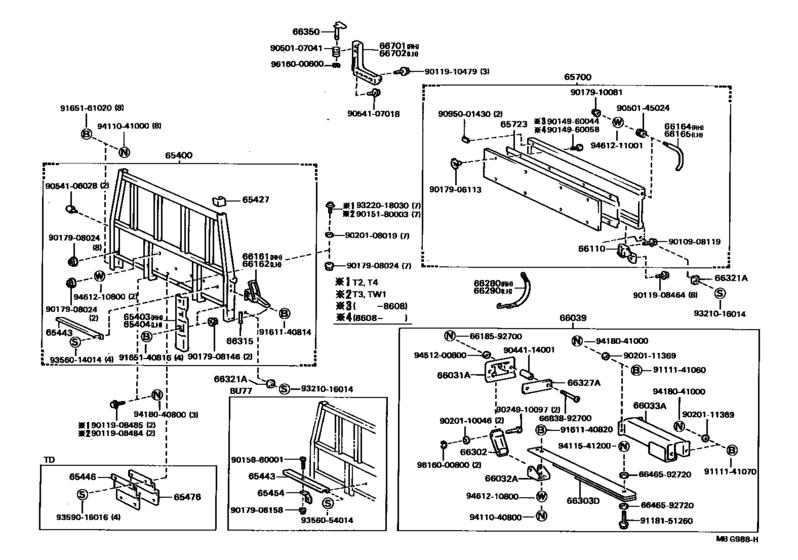

Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95) 92

#	OEM	Part name
65400	65400-92109	Frame Assy, Rear Body Guard
65400	65400-92867	Frame Assy, Rear Body Guard
65443	65457-92802	Plate, Baffle Dust Rear Body
65454	65454-92801	Stay, Baffle Dust
65700	65700-92813	Gate Assy, Rear Body Tail
65700	65700-92817	Gate Assy, Rear Body Tail
65723	65621-92706	Panel, Side Gate
65723	65621-92809	Panel, Side Gate
65723	65751-92807	Panel, Tail Gate
65723	65621-37460	Panel, Side Gate
66110	66110-92701	Hinge Assy, Tail Gate
66110	66110-92702	Hinge Assy, Tail Gate
66161	65080-92701	Handle Assy, Side Gate Latch
66161	65080-92702	Handle Assy, Side Gate Latch
66164	66264-92700	Handle, Tail Gate Latch, Rh
66164	66165-92701	Cap, Gate Latch Handle
66164	66264-37010	Handle, Tail Gate Latch, Rh
66165	66265-92700	Handle, Tail Gate Latch, Lh
66165	66265-37010	Handle, Tail Gate Latch, Lh
66280	66280-92201	Chain Assy, Tail Gate, Rh
66280	66280-92702	Chain Assy, Tail Gate, Rh
66315	66311-92701	Hook, Rope
66321	66321-92704	Bumper, Gate Rubber
66321	66321-92803	Bumper, Gate Rubber
66321	66321-92805	Bumper, Gate Rubber
66350	66109-92701	Handle Sub-Assy, Side Gate Support Corner
66350	66193-37010	Handle Sub-Assy, Side Gate Support Corner
66701	65507-92704	Support Sub-Assy, Corner, Rh
66701	65507-92706	Support Sub-Assy, Corner, Rh
66701	65507-92705	Support Sub-Assy, Side Gate, Rh
66702	65508-92704	Support Sub-Assy, Corner, Lh
66702	65508-92706	Support Sub-Assy, Corner, Lh
66702	65508-92705	Support Sub-Assy, Side Gate, Lh
6618592700	66185-92700	New Genuine Part
6646592720	66465-92720	Washer, Plate(for Deck Mounting)
6683892700	66838-92700	New Genuine Part
6683892700	93270-18040	New Genuine Part
9010908119	90109-08119	New Genuine Part
9011908464	90119-08464	Bolt, W/washer(For Side Gate, Rh)
9011908484	90119-08484	New Genuine Part
9011908485	90119-08485	New Genuine Part
9011910479	90119-10479	New Genuine Part
9014960044	90149-60044	New Genuine Part
9014960044	90149-60076	New Genuine Part
9014960058	90149-60058	New Genuine Part
9015180003	90151-80003	New Genuine Part
9015860001	90158-60001	New Genuine Part
9017906113	90179-06113	New Genuine Part
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9017908024	90179-08024	NUT
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9017910081	90179-10081	New Genuine Part
9017910081	94185-61000	NUTLOCK
9020108019	90201-08019	Washer, Shift Lever Shaft Housing, No.2
9020110046	90201-10046	New Genuine Part
9020111369	90201-11369	New Genuine Part
9024910097	90249-10097	New Genuine Part
9044114001	90441-14001	New Genuine Part
9050107041	90501-07041	SPRING
9050145024	90501-45024	New Genuine Part
9050145024	90501-45042	SPRING COMPRESSION
9054106028	90541-06028	New Genuine Part
9054107018	90541-07018	Cushion, Tail Gate Side
9095001430	90950-01430	Plug, Hole(For Tail Gate)
9111141060	91111-41060	Shaft, Clutch Pedal
9111141060	91112-61060	Shaft, Clutch Pedal
9111141070	91111-41070	New Genuine Part
9118151260	91181-51260	New Genuine Part
9161140814	91611-40814	Bolt(For Manual Transmission Oil Pan Setting)
9161140814	91611-60814	Bolt
9161140820	91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)
9165140816	91651-40816	BOLT
9165161020	91651-61020	Bolt, No.1 (For Center Support Bearing)
9321016014	93210-16014	SCREW
9322018030	93220-18030	New Genuine Part
9322018030	93230-18030	New Genuine Part
9356014014	93560-14014	SCREW
9356054014	93560-54014	SCREW
9359016016	93590-16016	New Genuine Part
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9411041000	94110-41000	Nut(For Steering Damper)
9411541200	94115-41200	Nut
9411541200	94130-61200	Nut
9418040800	94180-40800	NUT
9418041000	94180-41000	Nut
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9461210800	94612-10800	Washer, Plate(For Repair Actuator Set)
9461211001	94612-11001	Washer, Plate (For Center Support Bearing Housing)
9616000600	96160-00600	Ring, E(For Clutch Pedal Pawl)
9616000800	96160-00800	Ring, E(For Counter Weight)

OEM	Part name	Category
65080-92701	Handle Assy, Side Gate Latch	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
65080-92702	Handle Assy, Side Gate Latch	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
65400-92109	Frame Assy, Rear Body Guard	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
65400-92867	Frame Assy, Rear Body Guard	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
65454-92801	Stay, Baffle Dust	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
65457-92802	Plate, Baffle Dust Rear Body	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
65507-92704	Support Sub-Assy, Corner, Rh	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
65507-92705	Support Sub-Assy, Side Gate, Rh	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
65507-92706	Support Sub-Assy, Corner, Rh	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
65508-92704	Support Sub-Assy, Corner, Lh	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
65508-92705	Support Sub-Assy, Side Gate, Lh	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
65508-92706	Support Sub-Assy, Corner, Lh	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
65621-37460	Panel, Side Gate	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
65621-92706	Panel, Side Gate	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
65621-92809	Panel, Side Gate	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
65700-92813	Gate Assy, Rear Body Tail	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
65700-92817	Gate Assy, Rear Body Tail	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
65751-92807	Panel, Tail Gate	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
66109-92701	Handle Sub-Assy, Side Gate Support Corner	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
66110-92701	Hinge Assy, Tail Gate	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
66110-92702	Hinge Assy, Tail Gate	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
66165-92701	Cap, Gate Latch Handle	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
66185-92700	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
66193-37010	Handle Sub-Assy, Side Gate Support Corner	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
66264-37010	Handle, Tail Gate Latch, Rh	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
66264-92700	Handle, Tail Gate Latch, Rh	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
66265-37010	Handle, Tail Gate Latch, Lh	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
66265-92700	Handle, Tail Gate Latch, Lh	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
66280-92201	Chain Assy, Tail Gate, Rh	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
66280-92702	Chain Assy, Tail Gate, Rh	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
66311-92701	Hook, Rope	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
66321-92704	Bumper, Gate Rubber	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
66321-92803	Bumper, Gate Rubber	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
66321-92805	Bumper, Gate Rubber	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
66465-92720	Washer, Plate(for Deck Mounting)	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
66838-92700	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90109-08119	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90119-08464	Bolt, W/washer(For Side Gate, Rh)	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90119-08484	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90119-08485	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90119-10479	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90149-60044	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90149-60058	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90149-60076	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90151-80003	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90158-60001	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90179-06113	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90179-08024	NUT	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90179-08146	Nut	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90179-08204	Nut	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90179-10081	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90201-08019	Washer, Shift Lever Shaft Housing, No.2	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90201-10046	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90201-11369	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90249-10097	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90441-14001	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90501-07041	SPRING	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90501-45024	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90501-45042	SPRING COMPRESSION	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90541-06028	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90541-07018	Cushion, Tail Gate Side	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
90950-01430	Plug, Hole(For Tail Gate)	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
91111-41060	Shaft, Clutch Pedal	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
91111-41070	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
91112-61060	Shaft, Clutch Pedal	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
91181-51260	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
91611-40814	Bolt(For Manual Transmission Oil Pan Setting)	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
91611-40820	Bolt(For Intake Manifold To Exhaust Manifold)	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
91611-60814	Bolt	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
91651-40816	BOLT	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
91651-61020	Bolt, No.1 (For Center Support Bearing)	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
93210-16014	SCREW	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
93220-18030	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
93230-18030	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
93270-18040	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
93560-14014	SCREW	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
93560-54014	SCREW	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
93590-16016	New Genuine Part	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
94110-40800	Nut(For Steering Damper)	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
94110-41000	Nut(For Steering Damper)	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
94115-41200	Nut	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
94130-00802	Nut, No.1 (For Center Support Bearing)	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
94130-61200	Nut	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
94180-40800	NUT	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
94180-41000	Nut	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
94185-61000	NUTLOCK	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
94612-10800	Washer, Plate(For Repair Actuator Set)	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
94612-11001	Washer, Plate (For Center Support Bearing Housing)	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
96160-00600	Ring, E(For Clutch Pedal Pawl)	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
96160-00800	Ring, E(For Counter Weight)	Rear Body Guard Frame & Tail Gate ([09.1984 - ] (8409- )BU62..275 ; (8409- )BU77,8#,90,93, 95)
