Search › Model › BU77

BU77

Toyota DYNA-TOYOACE · 1985 · 4,081 parts · 177 categories

← Back to categories

4,081 items

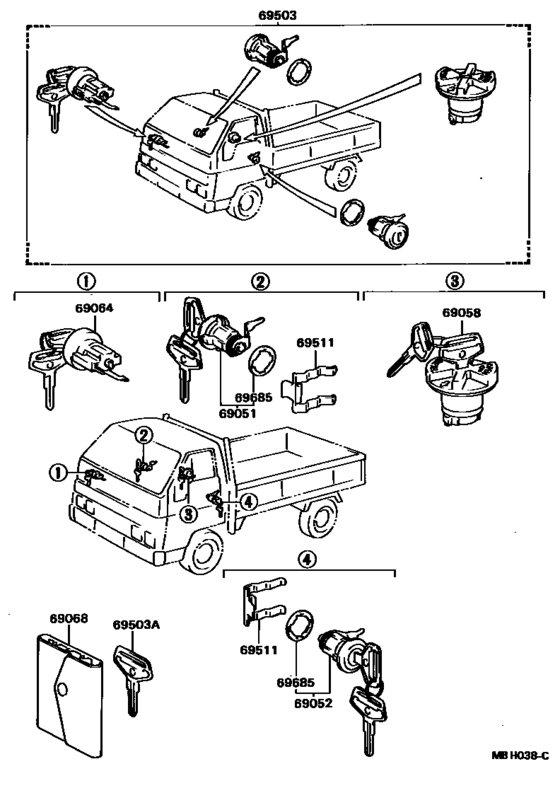

Lock Cylinder Set ([09.1984 - ] (8409- )BU6#,77,8#,9#) 19

#	OEM	Part name
69051	69051-95403	Cylinder & Key Set, Door Lock, Rh
69051	69051-95404	Cylinder & Key Set, Door Lock, Rh
69052	69052-95403	Cylinder & Key Set, Door Lock, Lh
69052	69052-95404	Cylinder & Key Set, Door Lock, Lh
69052	69052-95405	Cylinder & Key Set, Door Lock, Lh
69058	69058-89102	Cylinder & Key Set, Fuel Inlet Lock
69058	69058-95406	Cylinder & Key Set, Fuel Filler Lid
69064	69057-95407	Cylinder & Key Set, Ignition Switch Lock
69064	69057-95410	Cylinder & Key Set, Ignition Switch Lock
69068	69555-20010	Cover Sub-Assy, Key
69503	69503-95428	Cylinder Set, Lock
69503	69503-95439	Cylinder Set, Lock
69503	69503-95429	Cylinder Set, Lock
69503	69503-95431	Cylinder Set, Lock
69503	90999-00066	Key, Blank
69503	90999-00085	Key, Blank
69511	69511-32010	Retainer, Front Door Lock Cylinder
69511	69511-95400	Retainer, Front Door Lock Cylinder
69685	69513-32010	Pad, Lock Cylinder

OEM	Part name	Category
69051-95403	Cylinder & Key Set, Door Lock, Rh	Lock Cylinder Set ([09.1984 - ] (8409- )BU6#,77,8#,9#)
69051-95404	Cylinder & Key Set, Door Lock, Rh	Lock Cylinder Set ([09.1984 - ] (8409- )BU6#,77,8#,9#)
69052-95403	Cylinder & Key Set, Door Lock, Lh	Lock Cylinder Set ([09.1984 - ] (8409- )BU6#,77,8#,9#)
69052-95404	Cylinder & Key Set, Door Lock, Lh	Lock Cylinder Set ([09.1984 - ] (8409- )BU6#,77,8#,9#)
69052-95405	Cylinder & Key Set, Door Lock, Lh	Lock Cylinder Set ([09.1984 - ] (8409- )BU6#,77,8#,9#)
69057-95407	Cylinder & Key Set, Ignition Switch Lock	Lock Cylinder Set ([09.1984 - ] (8409- )BU6#,77,8#,9#)
69057-95410	Cylinder & Key Set, Ignition Switch Lock	Lock Cylinder Set ([09.1984 - ] (8409- )BU6#,77,8#,9#)
69058-89102	Cylinder & Key Set, Fuel Inlet Lock	Lock Cylinder Set ([09.1984 - ] (8409- )BU6#,77,8#,9#)
69058-95406	Cylinder & Key Set, Fuel Filler Lid	Lock Cylinder Set ([09.1984 - ] (8409- )BU6#,77,8#,9#)
69503-95428	Cylinder Set, Lock	Lock Cylinder Set ([09.1984 - ] (8409- )BU6#,77,8#,9#)
69503-95429	Cylinder Set, Lock	Lock Cylinder Set ([09.1984 - ] (8409- )BU6#,77,8#,9#)
69503-95431	Cylinder Set, Lock	Lock Cylinder Set ([09.1984 - ] (8409- )BU6#,77,8#,9#)
69503-95439	Cylinder Set, Lock	Lock Cylinder Set ([09.1984 - ] (8409- )BU6#,77,8#,9#)
69511-32010	Retainer, Front Door Lock Cylinder	Lock Cylinder Set ([09.1984 - ] (8409- )BU6#,77,8#,9#)
69511-95400	Retainer, Front Door Lock Cylinder	Lock Cylinder Set ([09.1984 - ] (8409- )BU6#,77,8#,9#)
69513-32010	Pad, Lock Cylinder	Lock Cylinder Set ([09.1984 - ] (8409- )BU6#,77,8#,9#)
69555-20010	Cover Sub-Assy, Key	Lock Cylinder Set ([09.1984 - ] (8409- )BU6#,77,8#,9#)
90999-00066	Key, Blank	Lock Cylinder Set ([09.1984 - ] (8409- )BU6#,77,8#,9#)
90999-00085	Key, Blank	Lock Cylinder Set ([09.1984 - ] (8409- )BU6#,77,8#,9#)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 177
Collected: 2026-08-03
