Search › Model › BU77

BU77

Toyota DYNA-TOYOACE · 1985 · 4,081 parts · 177 categories

4,081 items

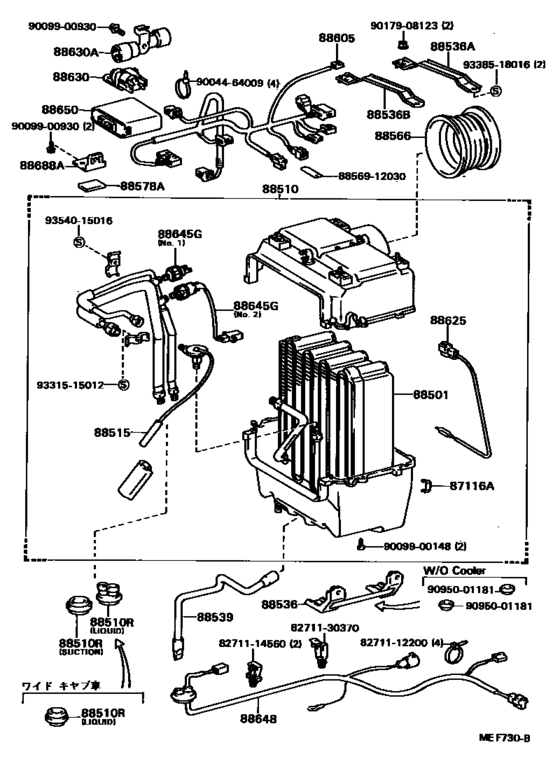

Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- )) 40

#	OEM	Part name
87116	87116-14010	Spring, Heater Case Fastening
88501	88501-95403	Evaporator Sub-Assy, Cooler, No.1
88510	88510-95401	Unit Assy, Cooler
88510	90099-21010	Grommet (For Cooler Unit)
88510	90480-36003	Grommet (For Cooler Unit)
88510	90950-01061	Plug, Hole, No.3(For Dash Panel)
88510	90950-01872	Plug, Hole, No.3(For Dash Panel)
88510	90950-01127	Grommet (For Cooler Unit)
88515	88515-16030	Valve, Cooler Expansion
88515	88515-16031	Valve, Cooler Expansion
88536	88536-95402	Bracket, Cooling Unit, No.1
88536	88536-95408	Bracket, Cooling Unit, No.2
88536	88536-95409	Bracket, Cooling Unit, No.3
88539	88539-95407	Hose, Cooler Unit Drain, No.1
88539	88539-95411	Hose, Cooler Unit Drain, No.1
88566	88566-95408	Duct, Cooler Air, No.1
88578	88578-95400	Packing, Cooler Stabilizer Amplifier
88605	88605-95406	Harness Sub-Assy, Cooler Wiring, No.1
88625	88625-95A00	Thermistor, Cooler, No.1
88625	88625-28150	Thermistor, Cooler No.2
88630	88630-95400	Relay Assy, Cooler
88630	88630-95402	Relay Assy, Cooler
88645	88645-17010	Switch, Pressure
88645	88645-95J00	Switch, Pressure
88645	88645-12020	Switch, Pressure
88648	88648-95415	Wiring, Cooler, No.1
88650	88650-95A00	Amplifier Assy, Cooler Stabilizer
88688	88688-95425	Bracket, Cooler Stabilizer Amplifier
8271112200	82711-12200	Clamp (For Fuel Lid Lock Control Cable)
8271114560	82711-14560	Wire, Fuse To Fuse(for Combustion Heater)
8271130370	82711-30370	Wire, Fuse To Fuse(for Combustion Heater)
8856912030	88569-12030	Clamp (For Cooler Wiring Harness), No.1
9004464009	90044-64009	CLAMP
9009900148	90099-00148	New Genuine Part
9009900930	90099-00930	New Genuine Part
9017908123	90179-08123	Nut (For Front Wiper Arm Setting)
9095001181	90950-01181	Plug, Hole(For Front Fender Apron)
9331515012	93315-15012	SCREWWWASHER
9338518016	93385-18016	New Genuine Part
9354015016	93540-15016	New Genuine Part

OEM	Part name	Category
82711-12200	Clamp (For Fuel Lid Lock Control Cable)	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
82711-14560	Wire, Fuse To Fuse(for Combustion Heater)	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
82711-30370	Wire, Fuse To Fuse(for Combustion Heater)	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
87116-14010	Spring, Heater Case Fastening	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
88501-95403	Evaporator Sub-Assy, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
88510-95401	Unit Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
88515-16030	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
88515-16031	Valve, Cooler Expansion	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
88536-95402	Bracket, Cooling Unit, No.1	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
88536-95408	Bracket, Cooling Unit, No.2	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
88536-95409	Bracket, Cooling Unit, No.3	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
88539-95407	Hose, Cooler Unit Drain, No.1	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
88539-95411	Hose, Cooler Unit Drain, No.1	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
88566-95408	Duct, Cooler Air, No.1	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
88569-12030	Clamp (For Cooler Wiring Harness), No.1	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
88578-95400	Packing, Cooler Stabilizer Amplifier	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
88605-95406	Harness Sub-Assy, Cooler Wiring, No.1	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
88625-28150	Thermistor, Cooler No.2	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
88625-95A00	Thermistor, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
88630-95400	Relay Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
88630-95402	Relay Assy, Cooler	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
88645-12020	Switch, Pressure	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
88645-17010	Switch, Pressure	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
88645-95J00	Switch, Pressure	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
88648-95415	Wiring, Cooler, No.1	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
88650-95A00	Amplifier Assy, Cooler Stabilizer	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
88688-95425	Bracket, Cooler Stabilizer Amplifier	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
90044-64009	CLAMP	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
90099-00148	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
90099-00930	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
90099-21010	Grommet (For Cooler Unit)	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
90179-08123	Nut (For Front Wiper Arm Setting)	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
90480-36003	Grommet (For Cooler Unit)	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
90950-01061	Plug, Hole, No.3(For Dash Panel)	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
90950-01127	Grommet (For Cooler Unit)	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
90950-01181	Plug, Hole(For Front Fender Apron)	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
90950-01872	Plug, Hole, No.3(For Dash Panel)	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
93315-15012	SCREWWWASHER	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
93385-18016	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))
93540-15016	New Genuine Part	Heating & Air Conditioning - Cooler Unit ([09.1984 - ] (8409- ))

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 177
Collected: 2026-08-03
