BU77

Toyota DYNA-TOYOACE · 1985 · 4,081 parts · 177 categories
BU77 ×

← Back to categories

4,081 items

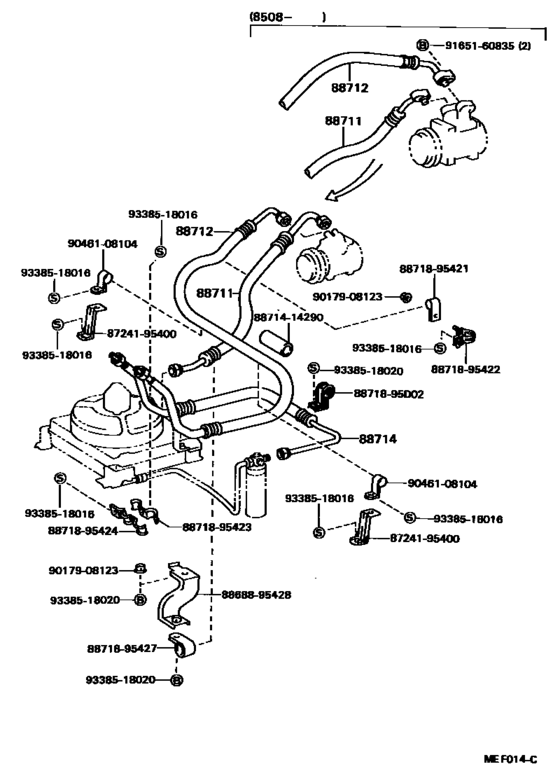

Heating & Air Conditioning - Cooler Piping ([09.1984 - ] (8409- )BU77,85,9#) 18
#OEMPart name
88712 88712-95417 Hose, Cooler Refrigerant Suction, No.1
88714 88721-95409 Hose, Cooler Refrigerant Liquid, No.1
88714 88721-36H03 Hose, Cooler Refrigerant Liquid, No.1
8871895 88718-95D02 Pipe, Cooler Refrigerant Suction, No.2
8724195400 87241-95400 Controller, Water Valve
8868895428 88688-95428 Bracket, Cooler Diaphragm
8871414290 88714-14290 Insulator, Cooler Refrigerant Hose, No.2
8871414290 88714-24100 Insulator, Cooler Refrigerant Hose, No.2
8871895421 88718-95421 Pipe, Cooler Refrigerant Suction, No.2
8871895422 88718-95422 Pipe, Cooler Refrigerant Suction, No.2
8871895423 88718-95423 Pipe, Cooler Refrigerant Suction, No.2
8871895424 88718-95424 Pipe, Cooler Refrigerant Suction, No.2
8871895427 88718-95427 Pipe, Cooler Refrigerant Suction, No.2
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9046108104 90461-08104 New Genuine Part
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
9338518016 93385-18016 New Genuine Part
9338518020 93385-18020 New Genuine Part
