BU77

Toyota DYNA-TOYOACE · 1985 · 4,081 parts · 177 categories

4,081 items

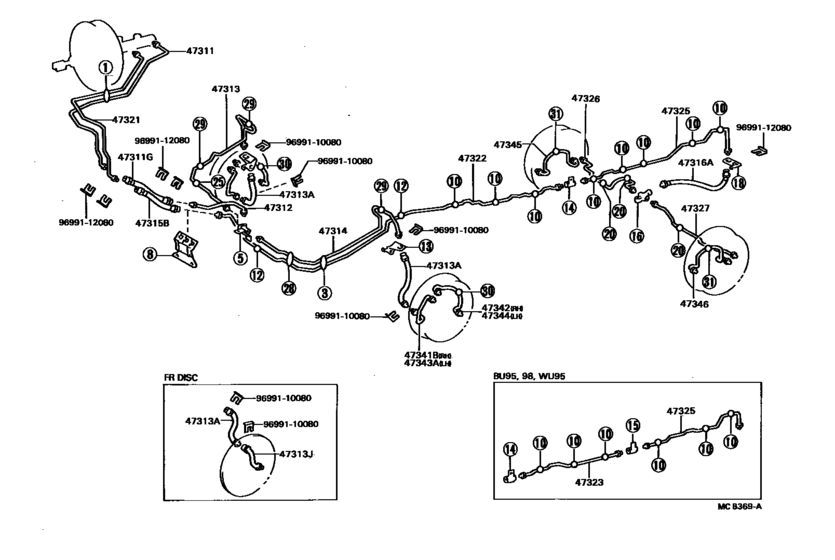

Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#) 24

#	OEM	Part name
47311	47311-36280	Tube, Front Brake, No.1
47311	96932-34305	Hose, Clutch, No.1
47311	96932-34307	Hose, Clutch, No.1
47312	47312-36230	Tube, Front Brake, No.2
47312	47312-36231	Tube, Front Brake, No.2
47313	47313-36180	Tube, Front Brake, No.3
47313	90947-02471	Hose, Flexible, No.1(For Front)
47313	96940-34005	Hose, Flexible, No.1(For Front)
47313	90947-02431	Hose, Flexible, No.2(For Front)
47313	90947-02521	Hose, Flexible, No.2(For Front)
47314	47314-36250	Tube, Front Brake, No.4
47316	96912-34105	Hose, Flexible(For Rear Brake Tube)
47316	96912-34107	Hose, Flexible(For Rear Brake Tube)
47321	47321-36180	Tube, Rear Brake, No.1
47322	47322-36280	Tube, Rear Brake, No.2
47325	47325-36120	Tube, Rear Brake, No.5
47326	47326-36140	Tube, Rear Brake, No.6
47327	47327-36140	Tube, Rear Brake, No.7
47341	47341-36090	Tube, Wheel Cylinder, Front Rh No.1
47342	47342-36030	Tube, Wheel Cylinder, Front Rh No.2
47343	47343-36090	Tube, Wheel Cylinder, Front Lh No.1
47345	47345-36040	Tube, Wheel Cylinder, Rear Rh
9699110080	96991-10080	CLIP
9699112080	96991-12080	Clip

OEM	Part name	Category
47311-36280	Tube, Front Brake, No.1	Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#)
47312-36230	Tube, Front Brake, No.2	Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#)
47312-36231	Tube, Front Brake, No.2	Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#)
47313-36180	Tube, Front Brake, No.3	Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#)
47314-36250	Tube, Front Brake, No.4	Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#)
47321-36180	Tube, Rear Brake, No.1	Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#)
47322-36280	Tube, Rear Brake, No.2	Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#)
47325-36120	Tube, Rear Brake, No.5	Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#)
47326-36140	Tube, Rear Brake, No.6	Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#)
47327-36140	Tube, Rear Brake, No.7	Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#)
47341-36090	Tube, Wheel Cylinder, Front Rh No.1	Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#)
47342-36030	Tube, Wheel Cylinder, Front Rh No.2	Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#)
47343-36090	Tube, Wheel Cylinder, Front Lh No.1	Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#)
47345-36040	Tube, Wheel Cylinder, Rear Rh	Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#)
90947-02431	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#)
90947-02471	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#)
90947-02521	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#)
96912-34105	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#)
96912-34107	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#)
96932-34305	Hose, Clutch, No.1	Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#)
96932-34307	Hose, Clutch, No.1	Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#)
96940-34005	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#)
96991-10080	CLIP	Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#)
96991-12080	Clip	Brake Tube & Clamp ([09.1984 - ] (8409- )BU77,85,9#)
