BU76

Toyota DYNA-TOYOACE · 1985 · 4,196 parts · 187 categories
BU76 ×

← Back to categories

4,196 items

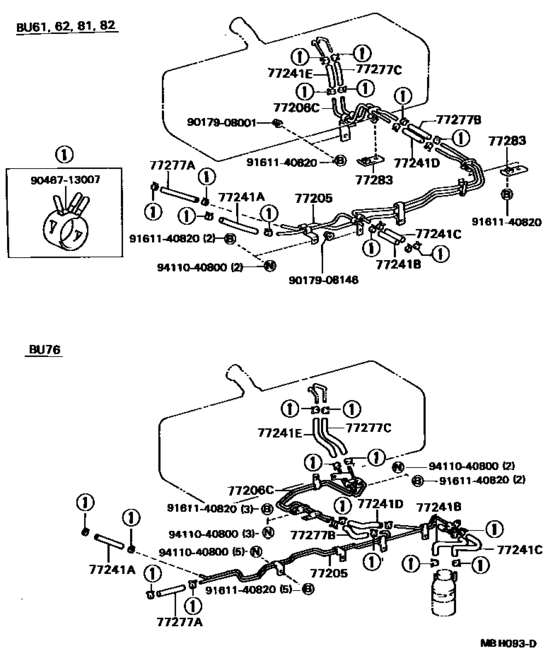

Fuel Tank & Tube ([09.1984 - ] (8409- )BU61,62,76,81,82) 19
#OEMPart name
77205 77206-36150 Tube Sub-Assy, Fuel Main
77205 77206-36151 Tube Sub-Assy, Fuel Main
77206 77205-36150 Tube Sub-Assy, Fuel Main, No.2
77241 23271-56050 Hose, Fuel, No.1 (For Main Tube, No.1)
77241 95332-08020 Hose, Fuel Pipe, No.1
77241 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77241 77259-36030 Hose, Fuel, No.2 (For Main Tube, No.1) - FUEL, NO.1 (FOR FUEL MAIN NO.2 TUBE)
77241 77259-36040 Hose, Fuel, No.3 (For Main Tube, No.1)
77241 95332-08040 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77241 95337-08040 Hose, Fuel, No.2 (For Main Tube, No.1)
9017908001 90179-08001 New Genuine Part
9017908001 90179-08233 NUT
9017908146 90179-08146 Nut
9017908146 90179-08204 Nut
9046713007 90467-13007 Clamp Or Clip(For Water By-Pass Hose No.2)
9046713007 96132-51300 Clip(For Ventilation Hose No.2)
9161140820 91611-40820 Bolt(For Intake Manifold To Exhaust Manifold)
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
