Search › Model › BU75

BU75

Toyota DYNA-TOYOACE · 1984 · 4,896 parts · 314 categories
BU75 ×

← Back to categories

4,896 items

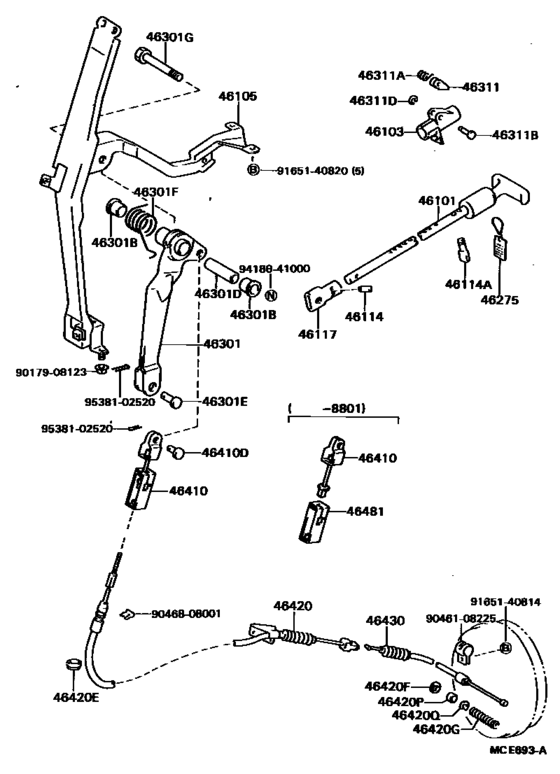

Parking Brake & Cable ([08.1987 - ] (8708- )) 70
#OEMPart name
46101 46101-36190-01 Handle Sub-Assy, Parking Brake Control
46101 46101-36190 Handle Sub-Assy, Parking Brake Control
46103 46103-36150 Guide Sub-Assy, Parking Brake Plunger
46105 46105-36040 Bracket Sub-Assy, Parking Brake Planger Or Pedal
46105 46105-36041 Bracket Sub-Assy, Parking Brake Planger Or Pedal
46114 46114-30010 Pin, Parking Brake Plunger
46114 46114-20010 Pin(For Parking Brake Handle Set)
46117 46117-30020 Sleeve, Parking Brake Plunger
46275 46275-26010 Plate, Parking Brake Release Caution
46301 46301-36070 Lever Sub-Assy, Parking Brake Intermediate
46301 90386-13007 Bush(For Clutch Pedal)
46301 90387-10004 Collar, Clutch Pedal Shaft
46301 90240-08010 Pin (For Power Take-Off Cable)
46301 90508-35024 Spring, Torsion(For Parking Brake Intermediate Lever)
46301 91111-71070 Bolt(For Intermediate Lever)
46311 46311-26010 Pawl, Parking Brake
46311 90508-08041 Spring(For Parking Brake Pawl)
46311 90249-05010 Pin, Parking Brake Pawl Pivot
46311 90213-03007 Washer, Type C(For Parking Brake Pawl)
46410 46410-36121 Cable Assy, Parking Brake, No.1
46410 46410-36350 Cable Assy, Parking Brake, No.1
46410 90240-08094 Pin, W/hole (For Column Shift Gear Selecting Rod)
46420 46420-36301 Cable Assy, Parking Brake, No.2
46420 90480-25026 Grommet(For Parking Brake Front Cable)
46420 90303-10001 Seal, Dust(For Parking Brake Cable)
46420 90501-14003 Spring(For Parking Cable Inner Wire Set)
46420 90560-08002 Spacer(For Parking Brake Handle)
46420 96160-00700 Ring, E(For Chain Tensioner Slipper)
46430 46430-36091 Cable Assy, Parking Brake, No.3
46453 46453-36030 Bracket, Parking Brake Cable Support, No.2
46481 46481-36012 Connector, Parking Cable
46501 46501-36130 Drum Sub-Assy, Parking Brake
46501 90114-11124 Bolt (For Transfer Output Shaft Companion Flange)
46503 46503-36011 Plate Sub-Assy, Parking Brake
46503 46503-37071 Plate Sub-Assy, Parking Brake
46506 46506-36010 Screw Set, Shoe Adjusting, Rh
46540 46530-36010 Shoe Assy, Parking Brake, Rh Or Center No.1
46540 46530-37030 Shoe Assy, Parking Brake, Rh Or Center No.1
46550 90506-18001 Spring, Tension
46550 90213-06013 Washer, Type C(For Parking Brake Shoe)
46550 90506-14012 Spring, Tension, No.2(For Parking Brake Shoe Return)
46550 90506-14013 Spring, Tension, No.3(For Parking Brake Shoe Return)
46555 90501-16025 Spring, Brake Shoe Hold Down
46556 47447-22010 Pin, Shoe Hold Down Spring
46557 47449-20011 Cup, Brake Shoe Hold Down
46577 46577-36010 Cover, Adjusting Cam Hole
46601 46601-36010 Lever Sub-Assy, Parking Brake Shoe
46612 46612-36010 Strut, Parking Brake Shoe Lever
46612 90504-10001 Spring, Compression(For Parking Brake Shoe Strut)
8379195400 83791-95400 New Genuine Part
9011910338 90119-10338 New Genuine Part
9011910339 90119-10339 Bolt, Hexagon(For Front Disc Brake Caliper)
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9046108225 90461-08225 Clamp, No.3(For Parking Brake Cable)
9046112086 90461-12086 Clamp, No.2(For Parking Brake Cable)
9046808001 90468-08001 CLIP
9094901168 90949-01168 New Genuine Part
9161140800 91611-40800 New Genuine Part
9161160820 91611-60820 Bolt(For Transaxle & Engine Setting)
9161160820 91611-G0820 Bolt
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9165140820 91651-40820 Bolt
9165160825 91651-60825 Bolt, Hexagon(For Steering Column Bracket)
9165160825 91651-B0825 Bolt, Hexagon(For Steering Column Bracket)
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9418041000 94180-41000 Nut
9461311200 94613-11200 WASHER
9538102520 95381-02520 PINCOTTER
