BU75

Toyota DYNA-TOYOACE · 1984 · 4,896 parts · 314 categories
BU75 ×

← Back to categories

4,896 items

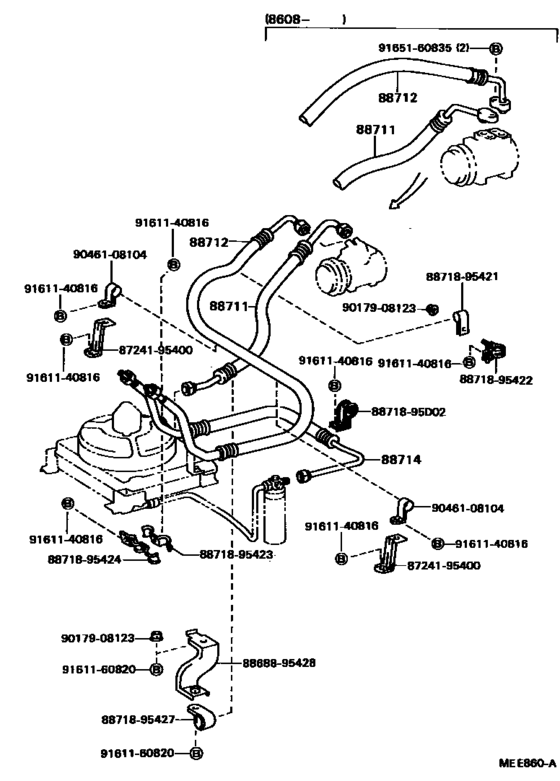

Heating & Air Conditioning - Cooler Piping ([09.1984 - ] (8409- )BU75,76,85..RHD) 24
#OEMPart name
88711 88711-95410 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-37230 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-95413 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-36H00 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-95412 Hose, Cooler Refrigerant Suction, No.1
88712 88712-37280 Hose, Cooler Refrigerant Suction, No.1
88712 88712-95417 Hose, Cooler Refrigerant Suction, No.1
88714 88721-95409 Hose, Cooler Refrigerant Liquid, No.1
88714 88721-36H03 Hose, Cooler Refrigerant Liquid, No.1
8871895 88718-95D02 Pipe, Cooler Refrigerant Suction, No.2
8724195400 87241-95400 Controller, Water Valve
8868895428 88688-95428 Bracket, Cooler Diaphragm
8871895421 88718-95421 Pipe, Cooler Refrigerant Suction, No.2
8871895422 88718-95422 Pipe, Cooler Refrigerant Suction, No.2
8871895423 88718-95423 Pipe, Cooler Refrigerant Suction, No.2
8871895424 88718-95424 Pipe, Cooler Refrigerant Suction, No.2
8871895427 88718-95427 Pipe, Cooler Refrigerant Suction, No.2
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9046108104 90461-08104 New Genuine Part
9161140816 91611-40816 Screw Or Bolt(For Valve Rocker Shaft Lock)
9161140816 91611-B0816 Bolt
9161160820 91611-60820 Bolt(For Transaxle & Engine Setting)
9161160820 91611-G0820 Bolt
9165160835 91651-60835 Bolt(For Front Suspension Control Accumulator)
