Search › Model › BU73

BU73

Toyota DYNA-TOYOACE · 1990 · 4,203 parts · 206 categories

4,203 items

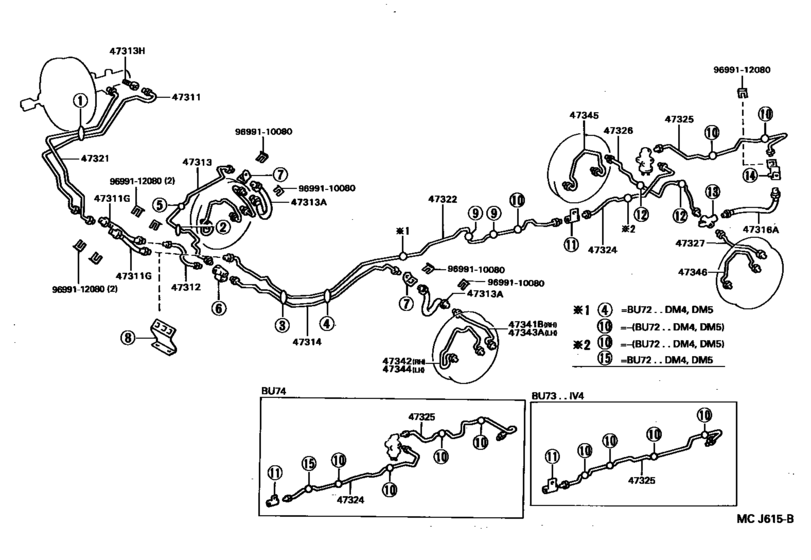

Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74) 49

#	OEM	Part name
47311	47311-36410	Tube, Front Brake, No.1
47311	96932-33705	Hose, Clutch, No.1
47311	90413-12005	Way, No.1(For Front Brake Tube)
47312	47312-36250	Tube, Front Brake, No.2
47313	47313-36220	Tube, Front Brake, No.3
47313	96950-34005	Hose, Flexible, No.1(For Front)
47313	90404-12007	Way, No.3(For Front Brake Tube)
47314	47314-36230	Tube, Front Brake, No.4
47316	96912-33255	Hose, Flexible(For Rear Brake Tube)
47316	96912-33257	Hose, Flexible(For Rear Brake Tube)
47316	96912-33256	Hose, Flexible(For Rear Brake Tube)
47321	47321-36280	Tube, Rear Brake, No.1
47321	90412-12014	Way, No.1(For Rear Brake Tube)
47322	47322-36290	Tube, Rear Brake, No.2
47323	90413-10100	Way, No.3(For Rear Brake Tube)
47324	47324-36260	Tube, Rear Brake, No.4
47325	47325-36350	Tube, Rear Brake, No.5
47326	47326-36150	Tube, Rear Brake, No.6
47327	47327-36180	Tube, Rear Brake, No.7
47341	47341-36110	Tube, Wheel Cylinder, Front Rh No.1
47342	47342-36080	Tube, Wheel Cylinder, Front Rh No.2
47343	47343-36110	Tube, Wheel Cylinder, Front Lh No.1
47344	47344-36080	Tube, Wheel Cylinder, Front Lh No.2
47345	47345-36040	Tube, Wheel Cylinder, Rear Rh
47351	47351-36131	Bracket, Flexible Hose(For Front Rh)
47353	47353-36171	Bracket, Flexible Hose(For Rear)
47354	47354-36070	Bracket, Front Flexible Hose
47381	47381-36060	Bracket, Brake Tube Clamp No.1
47381	47381-36110	Bracket, Brake Tube Clamp No.1
9011908086	90119-08086	Bolt(For Transmission Input Damper Cover & Flywheel)
9011910531	90119-10531	BOLT WWASHER
9017008204	90170-08204	Nut (For Propeller Shaft)
9017010028	90170-10028	New Genuine Part
9017908141	90179-08141	Nut (For Transmission Control Cable)
9017908141	90179-08038	Nut
9046108779	90461-08779	New Genuine Part
9046110616	90461-10616	New Genuine Part
9048008343	90480-08343	Grommet, No.2(For Front Brake Tube)
9094901164	90949-01164	New Genuine Part
9094901188	90949-01188	Clamp, Brake Tube, No.1
9094901600	90949-01600	New Genuine Part
9094901601	90949-01601	New Genuine Part
9094901602	90949-01602	New Genuine Part
9161160814	91611-60814	Bolt
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9161560814	91615-60814	Bolt(For Oil Receiver Pipe)
9699110080	96991-10080	CLIP
9699112080	96991-12080	Clip

OEM	Part name	Category
47311-36410	Tube, Front Brake, No.1	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
47312-36250	Tube, Front Brake, No.2	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
47313-36220	Tube, Front Brake, No.3	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
47314-36230	Tube, Front Brake, No.4	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
47321-36280	Tube, Rear Brake, No.1	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
47322-36290	Tube, Rear Brake, No.2	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
47324-36260	Tube, Rear Brake, No.4	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
47325-36350	Tube, Rear Brake, No.5	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
47326-36150	Tube, Rear Brake, No.6	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
47327-36180	Tube, Rear Brake, No.7	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
47341-36110	Tube, Wheel Cylinder, Front Rh No.1	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
47342-36080	Tube, Wheel Cylinder, Front Rh No.2	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
47343-36110	Tube, Wheel Cylinder, Front Lh No.1	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
47344-36080	Tube, Wheel Cylinder, Front Lh No.2	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
47345-36040	Tube, Wheel Cylinder, Rear Rh	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
47351-36131	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
47353-36171	Bracket, Flexible Hose(For Rear)	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
47354-36070	Bracket, Front Flexible Hose	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
47381-36060	Bracket, Brake Tube Clamp No.1	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
47381-36110	Bracket, Brake Tube Clamp No.1	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
90119-08086	Bolt(For Transmission Input Damper Cover & Flywheel)	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
90119-10531	BOLT WWASHER	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
90170-08204	Nut (For Propeller Shaft)	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
90170-10028	New Genuine Part	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
90179-08038	Nut	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
90179-08141	Nut (For Transmission Control Cable)	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
90404-12007	Way, No.3(For Front Brake Tube)	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
90412-12014	Way, No.1(For Rear Brake Tube)	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
90413-10100	Way, No.3(For Rear Brake Tube)	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
90413-12005	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
90461-08779	New Genuine Part	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
90461-10616	New Genuine Part	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
90480-08343	Grommet, No.2(For Front Brake Tube)	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
90949-01164	New Genuine Part	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
90949-01188	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
90949-01600	New Genuine Part	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
90949-01601	New Genuine Part	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
90949-01602	New Genuine Part	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
91611-60814	Bolt	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
91611-B0816	Bolt	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
91615-60814	Bolt(For Oil Receiver Pipe)	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
96912-33255	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
96912-33256	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
96912-33257	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
96932-33705	Hose, Clutch, No.1	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
96950-34005	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
96991-10080	CLIP	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)
96991-12080	Clip	Brake Tube & Clamp ([10.1989 - ] (8910- )BU72,73,74)

Source: Public OEM parts-catalog data
Variants: 1 / 13
Category: 206
Collected: 2026-08-03
