Search › Model › BU72

BU72

Toyota DYNA-TOYOACE · 1989 · 4,435 parts · 215 categories

4,435 items

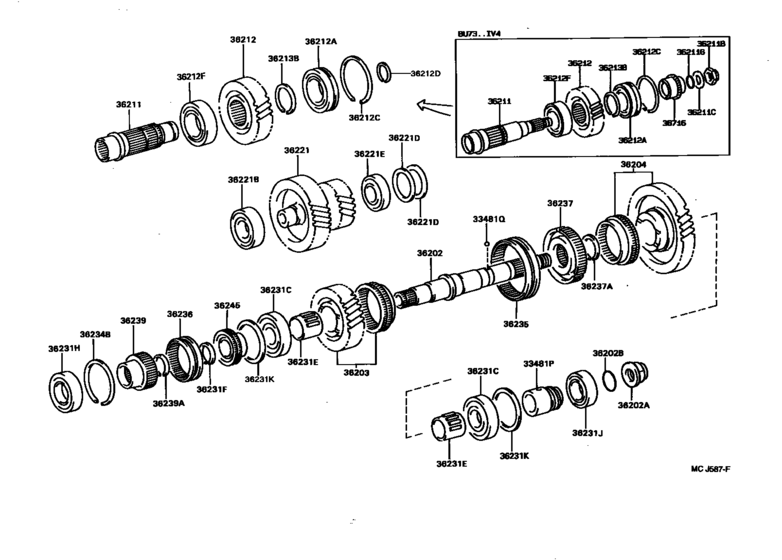

Transfer Gear ([10.1989 - ] (8910- )) 83

#	OEM	Part name
33481	33481-36220	Gear, Speedometer Drive (For Transfer)
33481	90360-06004	Ball, Detent(For Gear Shift Head No.4)
33481	90080-36191	Ball, Check Valve
36202	36202-36010	Shaft Sub-Assy, Transfer Output, Rear
36202	90179-24011	Nut (For Manual Transmission Output Shaft Rear Set)
36202	90301-31003	Ring, O(For Manual Transmisson Output Shaft Rear Set Nut)
36203	36203-60070	Gear Sub-Assy, Transfer High Speed Output
36203	36203-60071	Gear Sub-Assy, Transfer High Speed Output
36203	36247-60011	Ring, Transfer Synchronizer
36204	36204-60090	Gear Sub-Assy, Transfer Low Speed Output
36211	36211-60030	Shaft, Transfer Input
36212	36212-60100	Gear, Transfer Input
36212	90363-35030	Bearing, Radial Ball (For Transfer Input Gear)
36212	90520-82001	Ring, Shaft Snap (For Transfer Input Gear)
36212	90520-32005	Ring, Shaft Snap (For Transfer Input Bearing)
36212	90520-32006	Ring, Shaft Snap (For Transfer Input Bearing)
36212	90520-32007	Ring, Shaft Snap (For Transfer Input Bearing)
36212	90520-32008	Ring, Shaft Snap (For Transfer Input Bearing)
36212	90520-32009	Ring, Shaft Snap (For Transfer Input Bearing)
36212	90363-50003	Bearing, Radial Ball (For Transfer Input Shaft Front)
36213	90520-44022	Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213	90520-44023	Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213	90520-44024	Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213	90520-44025	Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213	90520-44026	Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213	90520-44027	Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213	90520-44028	Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213	90520-44029	Ring, Shaft Snap (For Transfer Input Gear Stopper)
36213	90520-44030	Ring, Shaft Snap (For Transfer Input Gear Stopper)
36221	36221-60110	Gear, Transfer Idler
36221	90366-35059	Bearing (For Transfer Idler Gear)
36221	90201-61014	Washer, Plate(For Transfer Idler Gear)
36221	90201-61015	Washer, Plate(For Transfer Idler Gear)
36221	90201-61016	Washer, Plate(For Transfer Idler Gear)
36221	90201-61017	Washer, Plate(For Transfer Idler Gear)
36221	90201-61018	Washer, Plate(For Transfer Idler Gear)
36221	90201-61019	Washer, Plate(For Transfer Idler Gear)
36221	90201-61020	Washer, Plate(For Transfer Idler Gear)
36221	90201-61021	Washer, Plate(For Transfer Idler Gear)
36221	90201-61022	Washer, Plate(For Transfer Idler Gear)
36221	90201-61023	Washer, Plate(For Transfer Idler Gear)
36221	90201-61024	Washer, Plate(For Transfer Idler Gear)
36221	90366-33001	Bearing, Radial Ball (For Transfer Idler Gear)
36231	90366-35058	Bearing, Taper Roller (For Transfer Output Shaft)
36231	90366-38007	Bearing, Taper Roller (For Transfer Output Shaft)
36231	90364-42001	Bearing, Needle Roller (For Transfer Output Shaft Front)
36231	90364-43005	Bearing, Needle Roller (For Transfer Output Shaft Front)
36231	90363-40044	Bearing, Radial Ball (For Transfer Output Shaft Front)
36231	90363-40083	Bearing, Radial Ball (For Transfer Output Shaft Front)
36231	90363-38002	Bearing, Radial Ball (For Transfer Output Shaft Rear)
36231	90363-38008	Bearing, Radial Ball (For Transfer Output Shaft Rear)
36231	90201-76002	Washer, Plate(For Transfer Output Rear Case)
36231	90201-76003	Washer, Plate(For Transfer Output Rear Case)
36231	90201-76004	Washer, Plate(For Transfer Output Rear Case)
36231	90201-76005	Washer, Plate(For Transfer Output Rear Case)
36231	90201-76006	Washer, Plate(For Transfer Output Rear Case)
36231	90201-76007	Washer, Plate(For Transfer Output Rear Case)
36231	90201-76008	Washer, Plate(For Transfer Output Rear Case)
36231	90201-76009	Washer, Plate(For Transfer Output Rear Case)
36231	90201-76010	Washer, Plate(For Transfer Output Rear Case)
36231	90201-76011	Washer, Plate(For Transfer Output Rear Case)
36231	90201-76012	Washer, Plate(For Transfer Output Rear Case)
36231	90201-76013	Washer, Plate(For Transfer Output Rear Case)
36234	90521-84002	Ring, Snap (For Transfer Output Front Shaft Bearing)
36234	90521-84003	Ring, Snap (For Transfer Output Front Shaft Bearing)
36235	36235-60040	Sleeve, Transfer High & Low Clutch
36236	36236-60060	Sleeve, Front Drive Clutch
36237	36237-60030	Hub, Transfer Clutch
36237	36237-60050	Hub, Transfer Clutch
36237	90520-39015	Ring, Shaft Snap (For Transfer Clutch Hub)
36237	90520-39016	Ring, Shaft Snap (For Transfer Clutch Hub)
36237	90520-39017	Ring, Shaft Snap (For Transfer Clutch Hub)
36237	90520-39018	Ring, Shaft Snap (For Transfer Clutch Hub)
36237	90520-39019	Ring, Shaft Snap (For Transfer Clutch Hub)
36237	90520-39020	Ring, Shaft Snap (For Transfer Clutch Hub)
36237	90520-39021	Ring, Shaft Snap (For Transfer Clutch Hub)
36239	36239-60010	Hub, Transfer Drive Clutch
36239	90520-36019	Ring, Shaft Snap(For Transfer Drive Clutch Hub)
36239	90520-36020	Ring, Shaft Snap(For Transfer Drive Clutch Hub)
36239	90520-36021	Ring, Shaft Snap(For Transfer Drive Clutch Hub)
36239	90520-36022	Ring, Shaft Snap(For Transfer Drive Clutch Hub)
36239	90520-36023	Ring, Shaft Snap(For Transfer Drive Clutch Hub)
36245	36245-60010	Piece, Transfer Front Drive Gear

OEM	Part name	Category
33481-36220	Gear, Speedometer Drive (For Transfer)	Transfer Gear ([10.1989 - ] (8910- ))
36202-36010	Shaft Sub-Assy, Transfer Output, Rear	Transfer Gear ([10.1989 - ] (8910- ))
36203-60070	Gear Sub-Assy, Transfer High Speed Output	Transfer Gear ([10.1989 - ] (8910- ))
36203-60071	Gear Sub-Assy, Transfer High Speed Output	Transfer Gear ([10.1989 - ] (8910- ))
36204-60090	Gear Sub-Assy, Transfer Low Speed Output	Transfer Gear ([10.1989 - ] (8910- ))
36211-60030	Shaft, Transfer Input	Transfer Gear ([10.1989 - ] (8910- ))
36212-60100	Gear, Transfer Input	Transfer Gear ([10.1989 - ] (8910- ))
36221-60110	Gear, Transfer Idler	Transfer Gear ([10.1989 - ] (8910- ))
36235-60040	Sleeve, Transfer High & Low Clutch	Transfer Gear ([10.1989 - ] (8910- ))
36236-60060	Sleeve, Front Drive Clutch	Transfer Gear ([10.1989 - ] (8910- ))
36237-60030	Hub, Transfer Clutch	Transfer Gear ([10.1989 - ] (8910- ))
36237-60050	Hub, Transfer Clutch	Transfer Gear ([10.1989 - ] (8910- ))
36239-60010	Hub, Transfer Drive Clutch	Transfer Gear ([10.1989 - ] (8910- ))
36245-60010	Piece, Transfer Front Drive Gear	Transfer Gear ([10.1989 - ] (8910- ))
36247-60011	Ring, Transfer Synchronizer	Transfer Gear ([10.1989 - ] (8910- ))
90080-36191	Ball, Check Valve	Transfer Gear ([10.1989 - ] (8910- ))
90179-24011	Nut (For Manual Transmission Output Shaft Rear Set)	Transfer Gear ([10.1989 - ] (8910- ))
90201-61014	Washer, Plate(For Transfer Idler Gear)	Transfer Gear ([10.1989 - ] (8910- ))
90201-61015	Washer, Plate(For Transfer Idler Gear)	Transfer Gear ([10.1989 - ] (8910- ))
90201-61016	Washer, Plate(For Transfer Idler Gear)	Transfer Gear ([10.1989 - ] (8910- ))
90201-61017	Washer, Plate(For Transfer Idler Gear)	Transfer Gear ([10.1989 - ] (8910- ))
90201-61018	Washer, Plate(For Transfer Idler Gear)	Transfer Gear ([10.1989 - ] (8910- ))
90201-61019	Washer, Plate(For Transfer Idler Gear)	Transfer Gear ([10.1989 - ] (8910- ))
90201-61020	Washer, Plate(For Transfer Idler Gear)	Transfer Gear ([10.1989 - ] (8910- ))
90201-61021	Washer, Plate(For Transfer Idler Gear)	Transfer Gear ([10.1989 - ] (8910- ))
90201-61022	Washer, Plate(For Transfer Idler Gear)	Transfer Gear ([10.1989 - ] (8910- ))
90201-61023	Washer, Plate(For Transfer Idler Gear)	Transfer Gear ([10.1989 - ] (8910- ))
90201-61024	Washer, Plate(For Transfer Idler Gear)	Transfer Gear ([10.1989 - ] (8910- ))
90201-76002	Washer, Plate(For Transfer Output Rear Case)	Transfer Gear ([10.1989 - ] (8910- ))
90201-76003	Washer, Plate(For Transfer Output Rear Case)	Transfer Gear ([10.1989 - ] (8910- ))
90201-76004	Washer, Plate(For Transfer Output Rear Case)	Transfer Gear ([10.1989 - ] (8910- ))
90201-76005	Washer, Plate(For Transfer Output Rear Case)	Transfer Gear ([10.1989 - ] (8910- ))
90201-76006	Washer, Plate(For Transfer Output Rear Case)	Transfer Gear ([10.1989 - ] (8910- ))
90201-76007	Washer, Plate(For Transfer Output Rear Case)	Transfer Gear ([10.1989 - ] (8910- ))
90201-76008	Washer, Plate(For Transfer Output Rear Case)	Transfer Gear ([10.1989 - ] (8910- ))
90201-76009	Washer, Plate(For Transfer Output Rear Case)	Transfer Gear ([10.1989 - ] (8910- ))
90201-76010	Washer, Plate(For Transfer Output Rear Case)	Transfer Gear ([10.1989 - ] (8910- ))
90201-76011	Washer, Plate(For Transfer Output Rear Case)	Transfer Gear ([10.1989 - ] (8910- ))
90201-76012	Washer, Plate(For Transfer Output Rear Case)	Transfer Gear ([10.1989 - ] (8910- ))
90201-76013	Washer, Plate(For Transfer Output Rear Case)	Transfer Gear ([10.1989 - ] (8910- ))
90301-31003	Ring, O(For Manual Transmisson Output Shaft Rear Set Nut)	Transfer Gear ([10.1989 - ] (8910- ))
90360-06004	Ball, Detent(For Gear Shift Head No.4)	Transfer Gear ([10.1989 - ] (8910- ))
90363-35030	Bearing, Radial Ball (For Transfer Input Gear)	Transfer Gear ([10.1989 - ] (8910- ))
90363-38002	Bearing, Radial Ball (For Transfer Output Shaft Rear)	Transfer Gear ([10.1989 - ] (8910- ))
90363-38008	Bearing, Radial Ball (For Transfer Output Shaft Rear)	Transfer Gear ([10.1989 - ] (8910- ))
90363-40044	Bearing, Radial Ball (For Transfer Output Shaft Front)	Transfer Gear ([10.1989 - ] (8910- ))
90363-40083	Bearing, Radial Ball (For Transfer Output Shaft Front)	Transfer Gear ([10.1989 - ] (8910- ))
90363-50003	Bearing, Radial Ball (For Transfer Input Shaft Front)	Transfer Gear ([10.1989 - ] (8910- ))
90364-42001	Bearing, Needle Roller (For Transfer Output Shaft Front)	Transfer Gear ([10.1989 - ] (8910- ))
90364-43005	Bearing, Needle Roller (For Transfer Output Shaft Front)	Transfer Gear ([10.1989 - ] (8910- ))
90366-33001	Bearing, Radial Ball (For Transfer Idler Gear)	Transfer Gear ([10.1989 - ] (8910- ))
90366-35058	Bearing, Taper Roller (For Transfer Output Shaft)	Transfer Gear ([10.1989 - ] (8910- ))
90366-35059	Bearing (For Transfer Idler Gear)	Transfer Gear ([10.1989 - ] (8910- ))
90366-38007	Bearing, Taper Roller (For Transfer Output Shaft)	Transfer Gear ([10.1989 - ] (8910- ))
90520-32005	Ring, Shaft Snap (For Transfer Input Bearing)	Transfer Gear ([10.1989 - ] (8910- ))
90520-32006	Ring, Shaft Snap (For Transfer Input Bearing)	Transfer Gear ([10.1989 - ] (8910- ))
90520-32007	Ring, Shaft Snap (For Transfer Input Bearing)	Transfer Gear ([10.1989 - ] (8910- ))
90520-32008	Ring, Shaft Snap (For Transfer Input Bearing)	Transfer Gear ([10.1989 - ] (8910- ))
90520-32009	Ring, Shaft Snap (For Transfer Input Bearing)	Transfer Gear ([10.1989 - ] (8910- ))
90520-36019	Ring, Shaft Snap(For Transfer Drive Clutch Hub)	Transfer Gear ([10.1989 - ] (8910- ))
90520-36020	Ring, Shaft Snap(For Transfer Drive Clutch Hub)	Transfer Gear ([10.1989 - ] (8910- ))
90520-36021	Ring, Shaft Snap(For Transfer Drive Clutch Hub)	Transfer Gear ([10.1989 - ] (8910- ))
90520-36022	Ring, Shaft Snap(For Transfer Drive Clutch Hub)	Transfer Gear ([10.1989 - ] (8910- ))
90520-36023	Ring, Shaft Snap(For Transfer Drive Clutch Hub)	Transfer Gear ([10.1989 - ] (8910- ))
90520-39015	Ring, Shaft Snap (For Transfer Clutch Hub)	Transfer Gear ([10.1989 - ] (8910- ))
90520-39016	Ring, Shaft Snap (For Transfer Clutch Hub)	Transfer Gear ([10.1989 - ] (8910- ))
90520-39017	Ring, Shaft Snap (For Transfer Clutch Hub)	Transfer Gear ([10.1989 - ] (8910- ))
90520-39018	Ring, Shaft Snap (For Transfer Clutch Hub)	Transfer Gear ([10.1989 - ] (8910- ))
90520-39019	Ring, Shaft Snap (For Transfer Clutch Hub)	Transfer Gear ([10.1989 - ] (8910- ))
90520-39020	Ring, Shaft Snap (For Transfer Clutch Hub)	Transfer Gear ([10.1989 - ] (8910- ))
90520-39021	Ring, Shaft Snap (For Transfer Clutch Hub)	Transfer Gear ([10.1989 - ] (8910- ))
90520-44022	Ring, Shaft Snap (For Transfer Input Gear Stopper)	Transfer Gear ([10.1989 - ] (8910- ))
90520-44023	Ring, Shaft Snap (For Transfer Input Gear Stopper)	Transfer Gear ([10.1989 - ] (8910- ))
90520-44024	Ring, Shaft Snap (For Transfer Input Gear Stopper)	Transfer Gear ([10.1989 - ] (8910- ))
90520-44025	Ring, Shaft Snap (For Transfer Input Gear Stopper)	Transfer Gear ([10.1989 - ] (8910- ))
90520-44026	Ring, Shaft Snap (For Transfer Input Gear Stopper)	Transfer Gear ([10.1989 - ] (8910- ))
90520-44027	Ring, Shaft Snap (For Transfer Input Gear Stopper)	Transfer Gear ([10.1989 - ] (8910- ))
90520-44028	Ring, Shaft Snap (For Transfer Input Gear Stopper)	Transfer Gear ([10.1989 - ] (8910- ))
90520-44029	Ring, Shaft Snap (For Transfer Input Gear Stopper)	Transfer Gear ([10.1989 - ] (8910- ))
90520-44030	Ring, Shaft Snap (For Transfer Input Gear Stopper)	Transfer Gear ([10.1989 - ] (8910- ))
90520-82001	Ring, Shaft Snap (For Transfer Input Gear)	Transfer Gear ([10.1989 - ] (8910- ))
90521-84002	Ring, Snap (For Transfer Output Front Shaft Bearing)	Transfer Gear ([10.1989 - ] (8910- ))
90521-84003	Ring, Snap (For Transfer Output Front Shaft Bearing)	Transfer Gear ([10.1989 - ] (8910- ))
