Search › Model › BU72
BU72

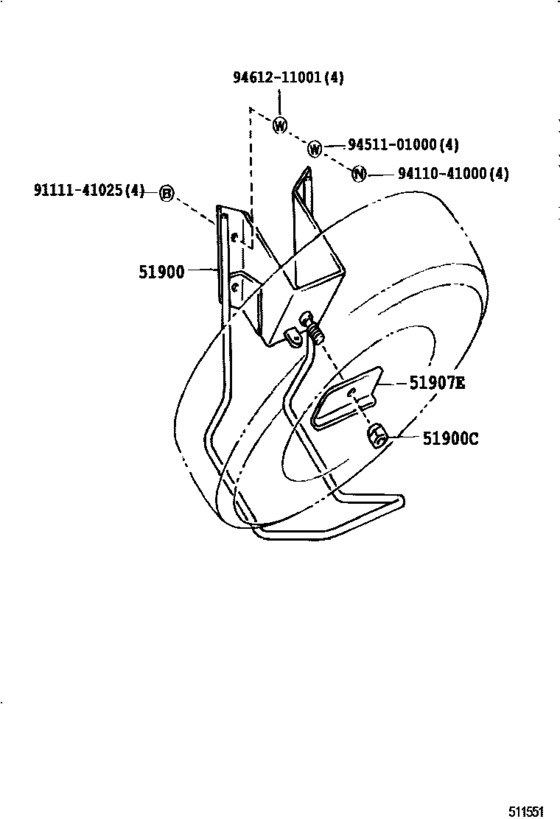

Spare Wheel Carrier ([09.1991 - ] (9109- )BU72..DM3) 8
| # | OEM | Part name |
|---|---|---|
| 51900 | 51900-93301 | Carrier Assy, Spare Wheel |
| 51900 | 90942-01023 | Nut, Hub (For Axle) |
| 51907 | 51912-93100 | Retainer Sub-Assy, Spare Tire Carrier |
| 9111141025 | 91111-41025 | Bolt(For Crankshaft Pulley Set) |
| 9111141025 | 91112-61025 | Bolt(For Clutch Pedal Stopper) |
| 9411041000 | 94110-41000 | Nut(For Steering Damper) |
| 9451101000 | 94511-01000 | Washer(For Rear Drive Shaft) |
| 9461211001 | 94612-11001 | Washer, Plate (For Center Support Bearing Housing) |
| OEM | Part name | Category |
|---|---|---|
| 51900-93301 | Carrier Assy, Spare Wheel | Spare Wheel Carrier ([09.1991 - ] (9109- )BU72..DM3) |
| 51912-93100 | Retainer Sub-Assy, Spare Tire Carrier | Spare Wheel Carrier ([09.1991 - ] (9109- )BU72..DM3) |
| 90942-01023 | Nut, Hub (For Axle) | Spare Wheel Carrier ([09.1991 - ] (9109- )BU72..DM3) |
| 91111-41025 | Bolt(For Crankshaft Pulley Set) | Spare Wheel Carrier ([09.1991 - ] (9109- )BU72..DM3) |
| 91112-61025 | Bolt(For Clutch Pedal Stopper) | Spare Wheel Carrier ([09.1991 - ] (9109- )BU72..DM3) |
| 94110-41000 | Nut(For Steering Damper) | Spare Wheel Carrier ([09.1991 - ] (9109- )BU72..DM3) |
| 94511-01000 | Washer(For Rear Drive Shaft) | Spare Wheel Carrier ([09.1991 - ] (9109- )BU72..DM3) |
| 94612-11001 | Washer, Plate (For Center Support Bearing Housing) | Spare Wheel Carrier ([09.1991 - ] (9109- )BU72..DM3) |
