BU72

Toyota DYNA-TOYOACE · 1989 · 4,435 parts · 215 categories

4,435 items

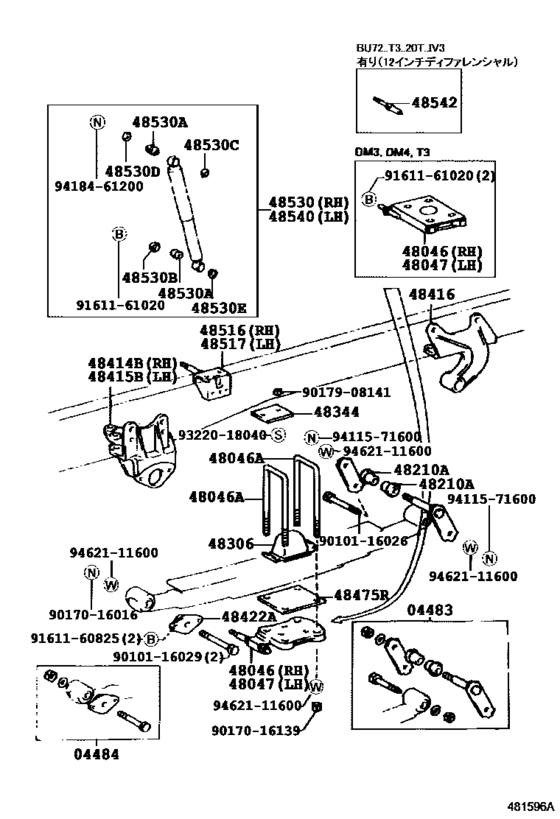

Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72) 40

#	OEM	Part name
4483	04483-36060	Shackle Kit, Rear Spring
4484	04484-36060	Pin Kit, Rear Spring
4484	04484-36100	Pin Kit, Rear Spring
48046	48046-36190	Seat Sub-Assy, Spring U Bolt, Rh
48046	90117-16012	Bolt, U(For Rear Spring)
48046	90117-16022	Bolt, U(For Rear Spring)
48046	90117-16115	Bolt, U(For Rear Spring)
48046	90117-16142	Bolt, U(For Rear Spring)
48047	48047-36190	Seat Sub-Assy, Spring U Bolt, Rh
48210	90385-23002	Bush(For Front Spring Pin)
48306	48344-36390	Bumper Sub-Assy, Rear Spring
48344	48344-36340	Stopper, Bumper, Rear
48414	48414-36290	Bracket, Spring, No.3 Rh
48415	48415-36090	Bracket, Spring, No.3 Lh
48416	48416-36280	Bracket, Spring, No.4
48416	48417-36150	Bracket, Spring, No.4
48422	48422-36100	Support, Rear Spring Pin
48475	48475-36090	Plate, Distance(For Front)
48516	48505-36080	Bracket, Rear Shock Absorber, Upper Rh
48530	48531-39755	Absorber Assy, Shock, Rear Rh
48530	48531-39757	Absorber Assy, Shock, Rear Rh
48530	48531-39756	Absorber Assy, Shock, Rear Rh
48530	90385-16011	Cushion, Shock Absorber
48530	90948-03003	Retainer, Cushion, No.1(For Front Shock Absorber)
48530	90948-03004	Retainer, Cushion, No.1(For Front Shock Absorber)
9010116026	90101-16026	BOLT HEXAGON
9010116029	90101-16029	New Genuine Part
9017016016	90170-16016	NUT HEXAGON
9017016139	90170-16139	Nut(For Rear Spring U Bolt)
9017908141	90179-08141	Nut (For Transmission Control Cable)
9017908141	90179-08038	Nut
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
9161160825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9161161020	91611-61020	Bolt(For Transaxle & Engine Setting)
9161161020	91612-B1020	Bolt (For Transfer Case)Cover No.2
9322018040	93220-18040	New Genuine Part
9411571600	94115-71600	Nut(For Front Suspension Lower Arm)
9411571600	94130-01602	Nut(For Dust Cover To Steering Knuckle Arm Setting)
9418461200	94184-61200	Nut, Lock(For Power Steering Control Valve)
9462111600	94621-11600	Washer(For Rear Spring U Bolt)

OEM	Part name	Category
04483-36060	Shackle Kit, Rear Spring	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
04484-36060	Pin Kit, Rear Spring	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
04484-36100	Pin Kit, Rear Spring	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
48046-36190	Seat Sub-Assy, Spring U Bolt, Rh	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
48047-36190	Seat Sub-Assy, Spring U Bolt, Rh	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
48344-36340	Stopper, Bumper, Rear	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
48344-36390	Bumper Sub-Assy, Rear Spring	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
48414-36290	Bracket, Spring, No.3 Rh	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
48415-36090	Bracket, Spring, No.3 Lh	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
48416-36280	Bracket, Spring, No.4	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
48417-36150	Bracket, Spring, No.4	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
48422-36100	Support, Rear Spring Pin	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
48475-36090	Plate, Distance(For Front)	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
48505-36080	Bracket, Rear Shock Absorber, Upper Rh	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
48531-39755	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
48531-39756	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
48531-39757	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
90101-16026	BOLT HEXAGON	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
90101-16029	New Genuine Part	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
90117-16012	Bolt, U(For Rear Spring)	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
90117-16022	Bolt, U(For Rear Spring)	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
90117-16115	Bolt, U(For Rear Spring)	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
90117-16142	Bolt, U(For Rear Spring)	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
90170-16016	NUT HEXAGON	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
90170-16139	Nut(For Rear Spring U Bolt)	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
90179-08038	Nut	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
90179-08141	Nut (For Transmission Control Cable)	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
90385-16011	Cushion, Shock Absorber	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
90385-23002	Bush(For Front Spring Pin)	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
90948-03003	Retainer, Cushion, No.1(For Front Shock Absorber)	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
90948-03004	Retainer, Cushion, No.1(For Front Shock Absorber)	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
91611-61020	Bolt(For Transaxle & Engine Setting)	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
91612-B1020	Bolt (For Transfer Case)Cover No.2	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
93220-18040	New Genuine Part	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
94115-71600	Nut(For Front Suspension Lower Arm)	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
94130-01602	Nut(For Dust Cover To Steering Knuckle Arm Setting)	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
94184-61200	Nut, Lock(For Power Steering Control Valve)	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
94621-11600	Washer(For Rear Spring U Bolt)	Rear Spring & Shock Absorber ([10.1989 - ] (8910- )BU72)
