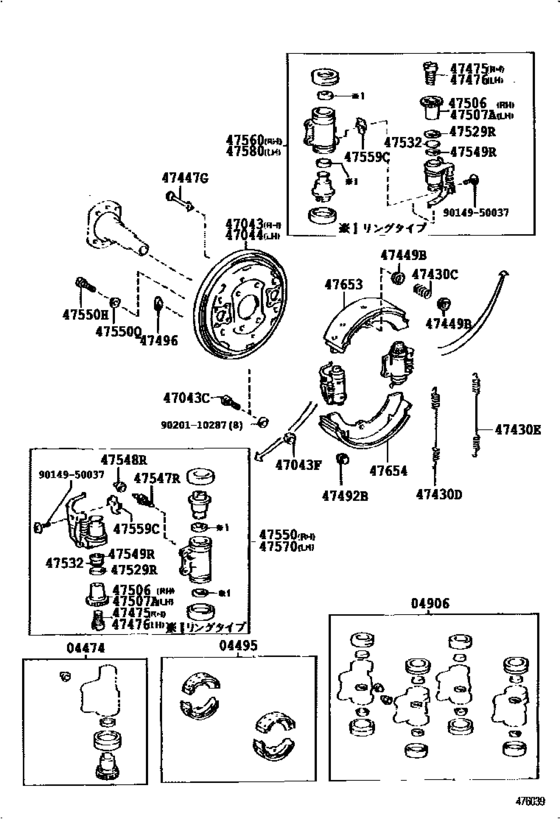

| 04495-36110 |
Shoe Kit, Rear Brake |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 04906-36090 |
Cup Kit, Rear Wheel Cylinder |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 31478-30010 |
Bleeder Plug Cap |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 47043-36110 |
Plate Sub-Assy, Brake Backing, Rear Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 47043-36140 |
Plate Sub-Assy, Brake Backing, Rear Rh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 47044-36110 |
Plate Sub-Assy, Brake Backing, Rear Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 47044-36140 |
Plate Sub-Assy, Brake Backing, Rear Lh |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 47447-60010 |
Pin, Shoe Hold Down Spring(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 47449-30020 |
Cup, Shoe Hold Down Spring(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 47491-36010 |
Plug, Hole(For Front Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 47491-36020 |
Plug, Hole(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 47492-28010 |
Plug, Shoe Inspection(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 47547-12010 |
Plug, Bleeder(For Release Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 47550-36110 |
Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 47553-36060 |
Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 47554-36060 |
Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 47560-36110 |
Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 47570-36110 |
Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 47580-36110 |
Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 90101-10127 |
Bolt(For Front Wheel Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 90114-10019 |
Bolt(For Backing Plate To Rear Axle Housing Setting) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 90114-10063 |
Bolt, No.1(For Rear Brake Backing Plate Rh) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 90149-50037 |
SCREW |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 90170-10178 |
Nut(For Backing Plate To Rear Axle Housing Setting) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 90201-10287 |
Washer(For Front Wheel Cylinder) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 90501-20012 |
Spring(For Front Brake Shoe Hold Down) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 90507-29006 |
Spring, Tension(For Front Brake Shoe Return) |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
| 94130-01002 |
Nut, Booster Sleeve Cylinder |
Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] ｱﾘ(ｵ-ﾄ ｱｼﾞﾔｽﾀ) (9303- )BU60,61,66,68,72,74,78,8#,94) |
