Search › Model › BU72

BU72

Toyota DYNA-TOYOACE · 1989 · 4,435 parts · 215 categories

4,435 items

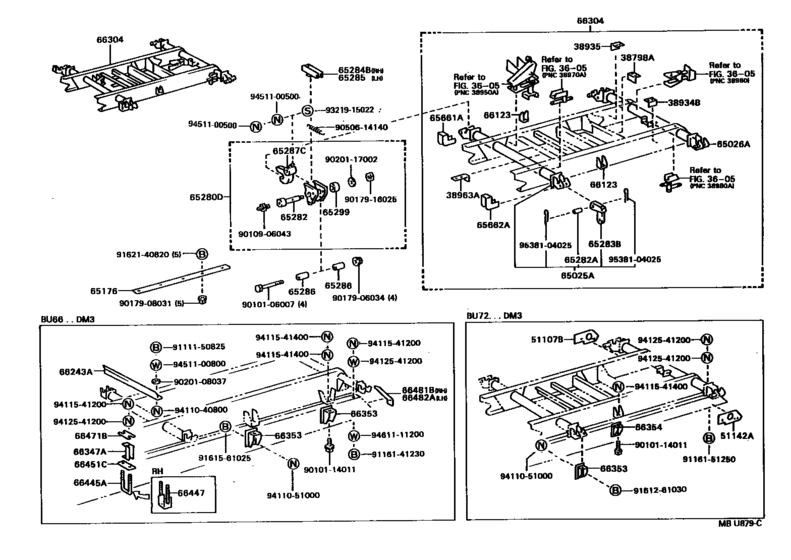

Rear Body Sub Frame ([09.1991 - ] (9109- )DM3) 60

#	OEM	Part name
38798	38798-93310	Bracket, U Bolt Support
38934	38934-93301	Stay, Valve Control Lever Bracket
38935	38935-93300	Stay, Valve Control Lever Bracket, No.2
38963	38963-93303	Bracket, Cable Clamp, No.8
51107	51107-93300	Reinforcement Sub-Assy, Side Rail, Rear Rh
51142	51142-93300	Reinforcement, Side Rail, Lh
65025	65025-93300	Hinge Sub-Assy, Vessel, Front
65026	65026-93301	Hinge Sub-Assy, Vessel
65176	65176-93300	Sill, Bessel Rail, Front
65280	65280-93301	Hinge Sub-Assy, Vessel, Front
65280	65280-93302	Hinge Sub-Assy, Vessel, Front
65280	90959-03117	New Genuine Part
65280	65290-93301	Hinge Sub-Assy, Vessel, Front
65280	65290-93302	Hinge Sub-Assy, Vessel, Front
65282	65282-93301	Shaft, Bezel Hinge
65282	65282-93300	Shaft, Vessel Hinge Stopper
65283	65283-93304	Stopper, Vessel Hinge Hook
65284	65284-93303	Suppoter, Hinge Bracket, Rear
65284	65284-93304	Suppoter, Hinge Bracket, Rear
65285	65285-93300	Gusset, Vessel Hinge, No.2
65286	65286-93300	Pipe, Vessel Hinge Shaft
65287	65287-93302	Hook, Vessel Hinge
65287	65287-93303	Hook, Vessel Hinge
65299	65299-93300	Collar, Vessel Hinge
65661	65661-93301	Guide, Roller, Rh
65662	65662-93301	Guide, Roller, Lh
66123	66123-93300	Bracket, Sub-Frame Mounting
66304	66304-93306	Frame Sub-Assy, Sub
66353	66353-93301	Bracket, Sub Frame
66354	66354-93300	Bracket, Sub Frame Anchor, Lh
9010106007	90101-06007	New Genuine Part
9010114011	90101-14011	New Genuine Part
9010906043	90109-06043	New Genuine Part
9017906034	90179-06034	Nut, Rear Wiper Link Pivot, No.2
9017906034	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9017908031	90179-08031	New Genuine Part
9017916025	90179-16025	New Genuine Part
9020108037	90201-08037	New Genuine Part
9020117002	90201-17002	Washer, Plate (For Hinge Lock Lever)
9050614140	90506-14140	New Genuine Part
9111150825	91111-50825	Bolt(For Clutch Master Cylinder Setting)
9116141230	91161-41230	New Genuine Part
9116151250	91161-51250	New Genuine Part
9116151250	91162-61250	Bolt, Mounting
9161261030	91612-61030	Bolt (For Transmission Control Cable Bracket)
9161561025	91615-61025	Bolt(for Transaxle & Engine Setting)
9161561025	91612-61025	Bolt (For Control Shaft Cover)
9162140820	91621-40820	Bolt
9321915022	93219-15022	New Genuine Part
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9411051000	94110-51000	Nut(For Steering Center Arm)
9411541200	94115-41200	Nut
9411541200	94130-61200	Nut
9411541400	94115-41400	Nut(For Backing Plate To Steering Knuckle Setting)
9412541200	94125-41200	Nut, Steering Wheel Set
9451100500	94511-00500	Washer, Cover Set, No.2
9451100800	94511-00800	WASHERSPRING
9461111200	94611-11200	New Genuine Part
9538104025	95381-04025	PIN

OEM	Part name	Category
38798-93310	Bracket, U Bolt Support	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
38934-93301	Stay, Valve Control Lever Bracket	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
38935-93300	Stay, Valve Control Lever Bracket, No.2	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
38963-93303	Bracket, Cable Clamp, No.8	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
51107-93300	Reinforcement Sub-Assy, Side Rail, Rear Rh	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
51142-93300	Reinforcement, Side Rail, Lh	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
65025-93300	Hinge Sub-Assy, Vessel, Front	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
65026-93301	Hinge Sub-Assy, Vessel	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
65176-93300	Sill, Bessel Rail, Front	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
65280-93301	Hinge Sub-Assy, Vessel, Front	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
65280-93302	Hinge Sub-Assy, Vessel, Front	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
65282-93300	Shaft, Vessel Hinge Stopper	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
65282-93301	Shaft, Bezel Hinge	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
65283-93304	Stopper, Vessel Hinge Hook	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
65284-93303	Suppoter, Hinge Bracket, Rear	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
65284-93304	Suppoter, Hinge Bracket, Rear	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
65285-93300	Gusset, Vessel Hinge, No.2	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
65286-93300	Pipe, Vessel Hinge Shaft	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
65287-93302	Hook, Vessel Hinge	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
65287-93303	Hook, Vessel Hinge	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
65290-93301	Hinge Sub-Assy, Vessel, Front	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
65290-93302	Hinge Sub-Assy, Vessel, Front	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
65299-93300	Collar, Vessel Hinge	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
65661-93301	Guide, Roller, Rh	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
65662-93301	Guide, Roller, Lh	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
66123-93300	Bracket, Sub-Frame Mounting	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
66304-93306	Frame Sub-Assy, Sub	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
66353-93301	Bracket, Sub Frame	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
66354-93300	Bracket, Sub Frame Anchor, Lh	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
90101-06007	New Genuine Part	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
90101-14011	New Genuine Part	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
90109-06043	New Genuine Part	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
90179-06034	Nut, Rear Wiper Link Pivot, No.2	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
90179-08031	New Genuine Part	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
90179-16025	New Genuine Part	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
90201-08037	New Genuine Part	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
90201-17002	Washer, Plate (For Hinge Lock Lever)	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
90506-14140	New Genuine Part	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
90959-03117	New Genuine Part	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
91111-50825	Bolt(For Clutch Master Cylinder Setting)	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
91161-41230	New Genuine Part	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
91161-51250	New Genuine Part	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
91162-61250	Bolt, Mounting	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
91612-61025	Bolt (For Control Shaft Cover)	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
91612-61030	Bolt (For Transmission Control Cable Bracket)	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
91615-61025	Bolt(for Transaxle & Engine Setting)	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
91621-40820	Bolt	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
93219-15022	New Genuine Part	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
94110-40800	Nut(For Steering Damper)	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
94110-51000	Nut(For Steering Center Arm)	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
94115-41200	Nut	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
94115-41400	Nut(For Backing Plate To Steering Knuckle Setting)	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
94125-41200	Nut, Steering Wheel Set	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
94130-00802	Nut, No.1 (For Center Support Bearing)	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
94130-61200	Nut	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
94511-00500	Washer, Cover Set, No.2	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
94511-00800	WASHERSPRING	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
94611-11200	New Genuine Part	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
95381-04025	PIN	Rear Body Sub Frame ([09.1991 - ] (9109- )DM3)
